Quick Details
-
Voltage:
-
380~460 V
-
Dimension(L*W*H):
-
Standard
-
Weight:
-
600 KG
-
Name:
-
China Rotary Drum Sieve Screening Machine Grape Seed Trommel Screen
-
Customized:
-
Acceptable
-
Motor:
-
General motor
-
Roller rotation speed:
-
8~20 r/min
-
Structure:
-
Carbon steel
-
Length:
-
2~8 m
-
Layer(s):
-
1-4 Layers
-
Mesh size:
-
2-500 mesh
-
Capacity:
-
10~45 m3/h
-
Function:
-
Sieving/Classification/Removing impurities
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KARAT
-
Voltage:
-
380~460 V
-
Dimension(L*W*H):
-
Standard
-
Weight:
-
600 KG
-
Name:
-
China Rotary Drum Sieve Screening Machine Grape Seed Trommel Screen
-
Customized:
-
Acceptable
-
Motor:
-
General motor
-
Roller rotation speed:
-
8~20 r/min
-
Structure:
-
Carbon steel
-
Length:
-
2~8 m
-
Layer(s):
-
1-4 Layers
-
Mesh size:
-
2-500 mesh
-
Capacity:
-
10~45 m3/h
-
Function:
-
Sieving/Classification/Removing impurities

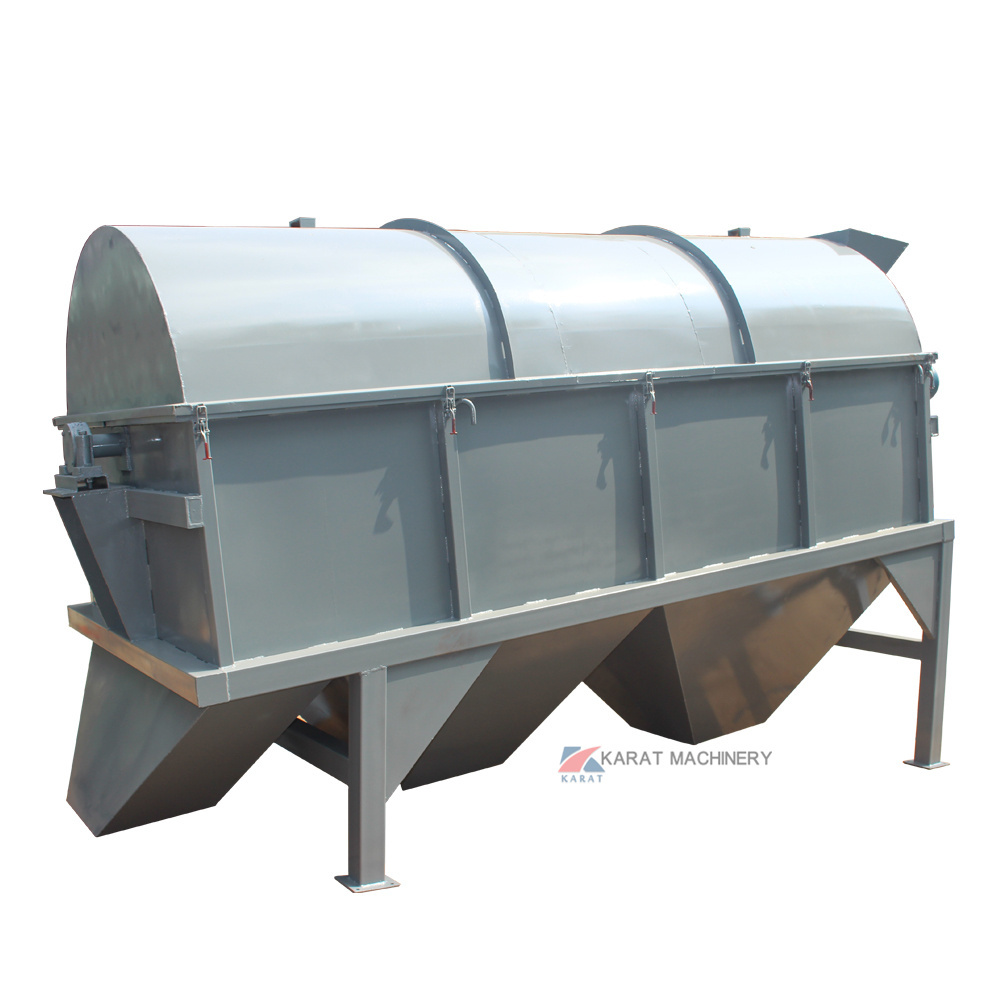

China Rotary Drum Sieve Screening Machine Grape Seed Trommel Screen
trommel screen trommel drum sieving machine is cylindrical drum,which is inclined and installed on the frame.The geared motor is connected to the drum device through a coupling,the driving drum will rotate around the axis directin.
Feature
1. Designed to fit your operation- Trommel screen can be customized to meet different capacity and working site .
2. Free from pollution- Fully enclosed structure,no dust pollution,improve working conditions for operators as well.
3.Variable application range-Compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting etc.
4. Superior design-Simple structure,easy maintenance,steady operation,low energy consumption.
The following table shows the detailed data of trommel screen trommel drum sieving machine for you to refer.
| Model | Segments of | Mesh size | Power | Inclination | Rotating speed | Capacity | Overall dimension |
| screen mesh | (mm) | (KW) | (rpm) | (m3/h) | |||
| YTS600 | 1-3 | 5-35 | 2.2-3 | 7° | 20 | 10 | 5400*1150*1200 |
| YTS800 | 1-3 | 5-40 | 2.2-5.5 | 7° | 18 | 14 | 5600*1300*1500 |
| YTS1000 | 1-4 | 5-45 | 3-7.5 | 7° | 16 | 16 | 7400*1400*2240 |
| YTS1200 | 1-4 | 5-50 | 4-11 | 7° | 15 | 20 | 9480*1580*3400 |
| YTS1500 | 1-4 | 5-55 | 4-15 | 7° | 12 | 23 | 9700*1860*3700 |
| YTS2000 | 1-5 | 5-60 | 11-18.5 | 7° | 8 | 45 | 1100*2400*4500 |
Trommel screen are widely used in construction, chemical, ore, mining industry.
