Quick Details
Quick Details
-
Max. Speed:
-
61 - 80km/h
-
Place of Origin:
-
Chongqing, China
-
COLOR:
-
UP TO YOU

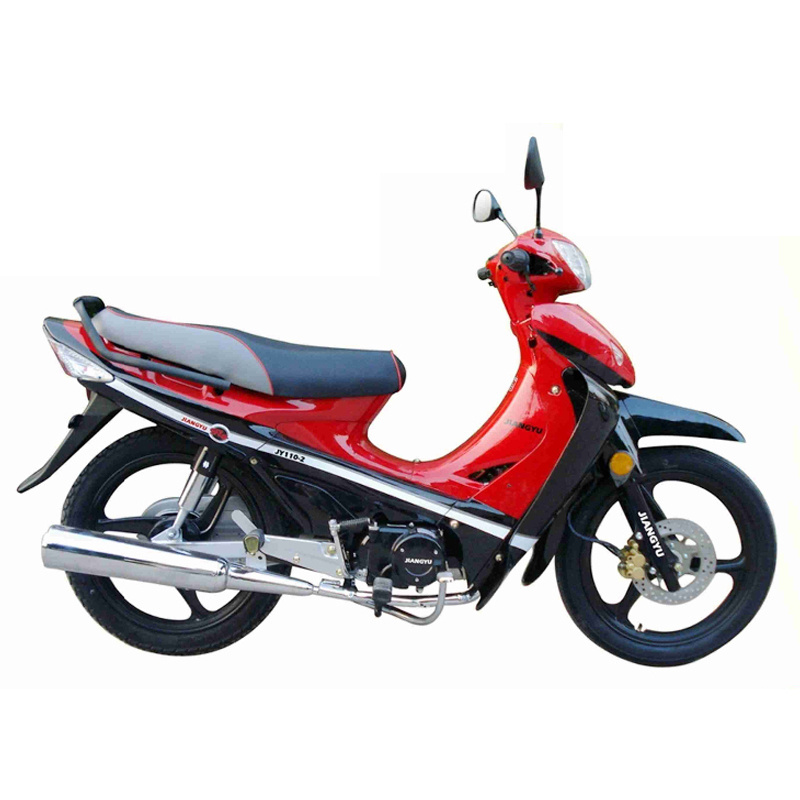

70cc cub motorcycle /70cc electric Scooter /70cc Future Star pedal mopeds----JY110-2
|
JY110-2 |
|
|
Description of the Engine |
|
|
Engine type |
single cylinder, 4 strokes, air-cooled |
|
Engine displacement (cc) |
107CC |
|
Compression Ratio: |
9:1:1 |
|
Max power (kw/r/min) |
10/8500 (1±1.5%) |
|
Max torque (n.m/r/min) |
13/7000 (1±1.5%) |
|
Bore x Stroke(mm) |
52.4mm x49.5mm |
|
Starting System |
Electric/Kick |
|
Brake mode |
By hand/By foot |
|
Ignition |
CDI |
|
Description of the Chassis |
|
|
Transmission System |
Chain drive |
|
Brakes/Front |
Drum |
|
Brakes/Rear |
Drum |
|
Tires/Front |
80/90-17 |
|
Tires/ Rear |
80/90-17 |
|
Wheel mode |
Spoked wheel , Alloy Wheel |
|
Description of the Dimensions |
|
|
L *W * H (mm) |
1910*680*1090 |
|
Wheel bass (mm) |
1200 |
|
Ground clearance (mm) |
130 |
|
Net weight (kg) |
98 |
|
Max load (kg) |
150 |
|
Turning angle |
< 40° |
|
Max speed(km/h) |
75 |
|
Fuel tank capacity(L) |
8.5 |
|
Description of the Others |
|
|
COLOR |
red/white/black/silver |
|
Packing Size (mm) |
1700 × 450 × 860 |
|
Loading Qty |
32 unit /20' GP |
|
70 unit /40' GP |
|
|
105 unit /40' HQ |
|
