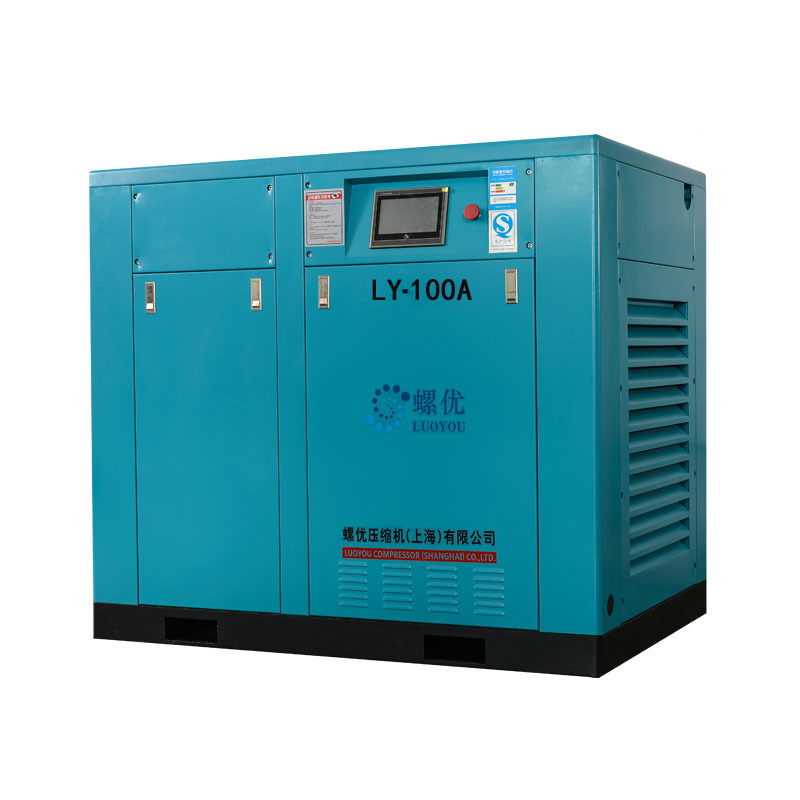

Quick Details
-
Voltage:
-
380V/220V/110V (can be customized accordingly)
-
Dimension(L*W*H):
-
1650*1350*1500mm
-
Weight:
-
1750Kg
-
Air capacity:
-
13.6M3/min or 480.3cfm
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Luoyou
-
Model Number:
-
LY-100A
-
Voltage:
-
380V/220V/110V (can be customized accordingly)
-
Dimension(L*W*H):
-
1650*1350*1500mm
-
Weight:
-
1750Kg
-
Air capacity:
-
13.6M3/min or 480.3cfm
Host
Power frequency screw air compressor is the industry-leading screw host, with high efficiency, and low speed, the rotor adopts the third generation tooth, with excellent line design; quiet, energy-saving, stable, high reliability, and has a long life span in characteristics.
Motor
Adopt a special low-speed screw air compressor special motor, with high stability. A 3-5% efficiency improvement over similar products.
Direct connection structure without any transmission loss, keeps 100% of transmission efficiency, low maintenance cost, and easy-to- disassembl e , significantly save downtime;
Coaxial integrated structure without any transmission loss, to reduce vulnerable parts, and keep full transmission efficiency.
Fan
Adopt ing a low-speed fan to make a long service life the fan . The cooler and fan can be disassembled independently with a 20% cooling surplus , which is even good for ambient temperatures up to 50℃ .
Intelligent Control System
The power frequency screw air compressor is equipped with an intelligent control system to ensure automatic operation. The field data such as exhaust pressure and temperature are detected, and the exhaust pressure is controlled between the preset pressure, enabling a stable output pressure.
Energy Conservation and Environment Protection
Enterprises have already benefited from our innovative, efficient, and energy-saving technologies greatly, and had incredible saving returns on efficient power consumption. 40% average load saving could be achieved on a basis of 8000 hours of operation every year, theoretically speaking.
Available Models:
| Model | Power (KW) | Pressure(Bar) | Output(m³/min) | Dia. | Noise(dB) | Outline(MM) | Weight (KG) |
| LY-10A | 7.5 | 8 | 1.2 | G3/4 | 66±2 | 800*720*950 | 240 |
| 10 | 0.95 | ||||||
| 13 | 0.8 | ||||||
| LY-15A | 11 | 8 | 1.6 | G3/4 | 68±2 | 950*800*1070 | 405 |
| 10 | 1.4 | ||||||
| 13 | 1.2 | ||||||
| LY-20A | 15 | 8 | 2.4 | G3/4 | 68±2 | 950*800*1070 | 430 |
| 10 | 2.0 | ||||||
| 13 | 1.7 | ||||||
| LY-25A | 18.5 | 8 | 2.9 | G11/4 | 68±2 | 950*1100*1110 | 510 |
| 10 | 2.7 | ||||||
| 13 | 2.2 | ||||||
| LY-30A | 22 | 8 | 3.5 | G11/4 | 69±2 | 1300*860*1135 | 540 |
| 10 | 3.2 | ||||||
| 13 | 2.9 | ||||||
| LY-40A | 30 | 8 | 5.0 | G11/4 | 69±2 | 1300*860*1135 | 690 |
| 10 | 4.3 | ||||||
| 13 | 3.7 | ||||||
| LY-50A | 37 | 8 | 6.1 | G11/2 | 70±2 | 1050*1050*1450 | 750 |
| 10 | 5.7 | ||||||
| 13 | 5.1 | ||||||
| LY-60A | 45 | 8 | 8.0 | G11/2 | 72±2 | 1300*1100*1350 | 920 |
| 10 | 6.8 | ||||||
| 13 | 5.8 | ||||||
| LY-75A | 55 | 8 | 10.05 | G2 | 73±2 | 1500*1150*1500 | 1500 |
| 10 | 7.8 | ||||||
| 13 | 7.3 | ||||||
| LY-100A | 75 | 8 | 13.3 | G2 | 75±2 | 1900*1200*1555 | 1800 |
| 10 | 12.2 | ||||||
| 13 | 9.0 | ||||||
| LY-125A | 90 | 8 | 16.3 | G2 | 75±2 | 2100*1250*1700 | 2200 |
| 10 | 14.6 | ||||||
| 13 | 12.3 | ||||||
| LY-150A | 110 | 8 | 20.6 | DN65 | 75±2 | 2300*1650*2000 | 2900 |
| 10 | 17.0 | ||||||
| 13 | 14.2 | ||||||
| LY-180A | 132 | 8 | 24.0 | DN65 | 75±2 | 2550*1650*2000 | 3100 |
| 10 | 20.6 | ||||||
| 13 | 16.5 | ||||||
| LY-220A | 160 | 8 | 27.0 | DN80 | 75±2 | 2550*1650*2000 | 3300 |
| 10 | 23.2 | ||||||
| 13 | 19.7 | ||||||
| LY-250A | 185 | 8 | 30.2 | DN80 | 78±2 | 2800*1750*2100 | 3500 |
| 10 | 27.0 | ||||||
| 13 | 22.5 | ||||||
| LY-300A | 220 | 8 | 36.4 | DN100 | 78±2 | 3200*1950*2150 | 4500 |
| 10 | 33.1 | ||||||
| 13 | 38.5 | ||||||
| LY-340A | 250 | 8 | 42.5 | DN100 | 78±2 | 3200*1950*2150 | 4600 |
| 10 | 38.8 | ||||||
| 13 | 34.6 |
Can’t find what you want?
Just try our Tailor-made service, simply tell us your needs,
and we can customize it for you to meet all your needs!
Standard packing with wooden case for international transportation.
Port of Loading: Shanghai, China
