Quick Details
-
Brand Name:
-
Sanhe
-
Model Number:
-
11-53
-
External Size:
-
120x120x60 mm
-
Material:
-
ABS, ABS
-
Color:
-
Light grey
-
IP Rate:
-
IP65
-
MOQ:
-
1pc
-
Package:
-
Carton Package
-
Payment:
-
Paypal\TT\Alipay
-
Certificate:
-
ISO9001
-
Drawing Format:
-
3D/CAD/DWG//STEP/PDF
-
Sample:
-
Availiable
-
Customizable:
-
Availble
Quick Details
-
Protection Level:
-
IP65
-
Type:
-
Junction Box
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sanhe
-
Model Number:
-
11-53
-
External Size:
-
120x120x60 mm
-
Material:
-
ABS, ABS
-
Color:
-
Light grey
-
IP Rate:
-
IP65
-
MOQ:
-
1pc
-
Package:
-
Carton Package
-
Payment:
-
Paypal\TT\Alipay
-
Certificate:
-
ISO9001
-
Drawing Format:
-
3D/CAD/DWG//STEP/PDF
-
Sample:
-
Availiable
-
Customizable:
-
Availble

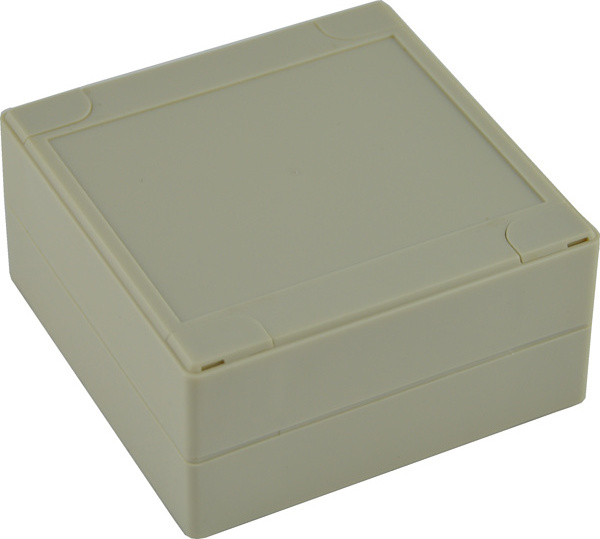

IP65 ABS electronic plastic waterproof enclosures
|
Photo |
Parameter |
|
|
Brand | Sanhe |
| Type | plastic waterproof enclosures | |
| Code |
11-53 |
|
| IP | 65 | |
| Material | ABS /PC | |
| Size | 120x120x60 mm | |
| NO. | Part name | Qty | Material |
| 1 | Cover | 1 | ABS/PC |
| 2 | Bottom | 1 | ABS |
| 3 | Sealing | 1 | Silicone Foam |
| 4 | Screw | 4 | Iron |
| 5 | Decorating Plate |
8 |
ABS |
| MODEL | WIDTH | SIZE(MM) | MEMBRANE SIZE(MM) | MATERIAL | |||
| L | W | H | C | D | |||
| 11-45 |
80mm series |
80 | 80 | 60 | 43 | 66 | ABS/PC |
| 11-46 | 80 | 80 | 80 | 43 | 66 | ABS/PC | |
| 11-47 | 120 | 80 | 60 | 83 | 66 | ABS/PC | |
| 11-48 | 120 | 80 | 80 | 83 | 66 | ABS/PC | |
| 11-49 | 160 | 80 | 60 | 123 | 66 | ABS/PC | |
| 11-50 | 160 | 80 | 80 | 123 | 66 | ABS/PC | |
| 11-51 | 240 | 80 | 60 | 203 | 66 | ABS/PC | |
| 11-52 | 240 | 80 | 80 | 203 | 66 | ABS/PC | |
| 11-53 |
120mm series |
120 | 120 | 60 | 83 | 106 | ABS/PC |
| 11-54 | 120 | 120 | 90 | 83 | 106 | ABS/PC | |
| 11-55 | 200 | 120 | 60 | 163 | 106 | ABS/PC | |
| 11-56 | 200 | 120 | 90 | 163 | 106 | ABS/PC | |
| 11-57 | 240 | 120 | 60 | 203 | 106 | ABS/PC | |
| 11-58 | 240 | 120 | 90 | 203 | 106 | ABS/PC | |
| 11-59 |
160mm series |
160 | 160 | 60 | 123 | 146 | ABS/PC |
| 11-60 | 160 | 160 | 90 | 123 | 146 | ABS/PC | |
| 11-61 | 240 | 160 | 60 | 203 | 146 | ABS/PC | |
| 11-62 | 240 | 160 | 90 | 203 | 146 | ABS/PC | |
| 11-63 | 240 | 160 | 120 | 203 | 146 | ABS/PC | |
1. Material and color can be customized.
2. Holes and pillars inside can be added or modified as per your request. And supporting our cable gland.
3. For modification, there will be surcharge.
4. Drawings from website is just for reference.
5. Making toolings cooperative, 50% tooling cost will be undertaken for the standard products.
6. The case can reach IP65 by silicon sealing,and IP67 by gasket foaming plant.
7. This series has 19 kinds of sizes for choice. The groove on the cover is designed for label.
8. More details you also can visit our company web: www.china-mould.com .
