Quick Details
-
Model Number:
-
HM-QY04
-
Product name:
-
Soil Testing Equipment Soil Sampling Apparatus machines equipment
-
Key words:
-
soil testing equipment hand auger set
-
Product model:
-
HM-QY04
-
Uses:
-
Sampling and sorting different soils
Quick Details
-
Warranty:
-
1 Years
-
Place of Origin:
-
Shandong, China, Shandong
-
Brand Name:
-
Hengmei
-
Model Number:
-
HM-QY04
-
Product name:
-
Soil Testing Equipment Soil Sampling Apparatus machines equipment
-
Key words:
-
soil testing equipment hand auger set
-
Product model:
-
HM-QY04
-
Uses:
-
Sampling and sorting different soils
Product description
HM-QY04 manual soil sampler comprehensive set, soil sampler
,
sludge sampler, standard sampling equipment.
1.Model name
HM-QY04 Soil Sampler Comprehensive Set
2. Origin of soil sampler
Shandong
3.Use of soil sampler
Different special drill bits can be equipped for soil particles of different diameters to properly sample and classify soils of
different depths and areas.
4, soil sampler characteristics (HM-QY04 manual soil sampler comprehensive set, soil sampler, sludge sampler, standard sampling equipment.)
Can collect soil samples of different textures,
Easy disassembly, small size and easy to carry outdoors,
easy to use.
2. Origin of soil sampler
Shandong
3.Use of soil sampler
Different special drill bits can be equipped for soil particles of different diameters to properly sample and classify soils of
different depths and areas.
4, soil sampler characteristics (HM-QY04 manual soil sampler comprehensive set, soil sampler, sludge sampler, standard sampling equipment.)
Can collect soil samples of different textures,
Easy disassembly, small size and easy to carry outdoors,
easy to use.
Details Images

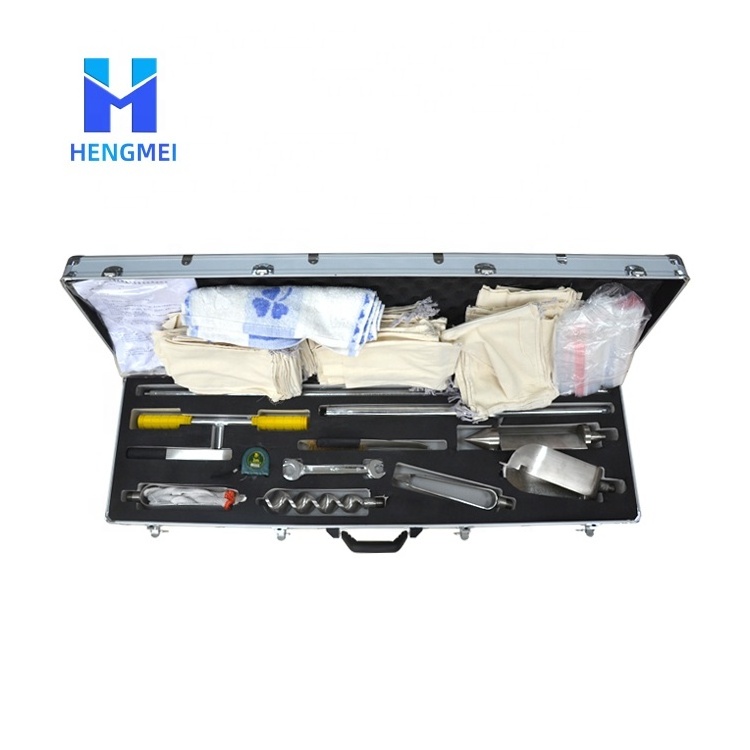

The standard configuration and technical specifications of the soil sampler are shown in the table below.
|
Serial number
|
Model
|
Name
|
Specification
|
Quantity
|
|
1
|
HM-TS35
|
T handle
|
35cm long, threaded connection
|
1
|
|
2
|
HM-Y30
|
Extend Pole
|
30 cm long, graduated, threaded
|
1
|
|
3
|
HM-Y50
|
Extend Pole
|
50 cm long, graduated, threaded
|
1
|
|
4
|
HM-Y100
|
Extend Pole
|
100cm length with scale, threaded connection
|
2
|
|
5
|
HM-XS5
|
Heart-shaped sand bit
|
Blade width 7cm, blade distance 5cm, sampling length 20cm, thread connection, stainless steel material, special hardening
treatment, avoiding the trouble of damage and easy maintenance |
1
|
|
6
|
HM-XN6
|
Heart-shaped clay bit
|
Blade width 3cm, blade distance 6cm, sampling length 20cm, thread connection, stainless steel material, special hardening
treatment, avoiding rust and worry, easy maintenance |
1
|
|
7
|
HM-DS7
|
Many Stone soil drill
|
Sampling diameter 7cm, threaded connection, manganese steel, hard and wear-resistant
|
1
|
|
8
|
HM-NT5
|
Mud soil bit
|
Stainless steel, sampling diameter 5cm, sampling length 20cm, threaded connection
|
1
|
|
9
|
HM-GD
|
Scraper
|
Stainless steel, 20mm wide
|
1
|
|
10
|
HM-BS
|
Wrench
|
19×22mm
|
2
|
|
11
|
HM-ST
|
Gloves
|
Cowhide, breathable on the back of the hand,
|
1
|
|
12
|
HM-R3
|
Steel tape
|
3 meters
|
1
|
|
13
|
HM-MJ
|
Towel
|
For wiping drills
|
1
|
|
14
|
HM-LV01
|
Aluminum box
|
Built-in EVA anti-vibration lining for the above-mentioned drilling tools, easy to carry outdoors
|
1
|
|
15
|
HM-YP
|
Soil sample vial
|
250ml, special soil sample storage bottle for measuring soil organic matter, milky white
|
1
|
Regulations:
The standard configuration has a sampling depth of 2 meters. For detailed parameters, see below.
Special points:
Can be sampled on different soil textures, easy to disassemble, small in size and easy to carry outdoors
Use it:
During soil sampling, different soil textures are encountered, such as clay, loam, sand, and peat soil. In order to achieve better sampling results, a suitable drill bit should be selected according to different soil textures. The following four types of drill bits are provided below, which can collect samples of 0-20cm on the surface of different texture soils, and can also be used for deep sampling.
The standard configuration:
1 heart-shaped clay drill, 1 heart-shaped loam drill, 1 heart-shaped sand drill, 1 cylindrical peat drill, 2 100cm extension rods, 1 50cm extension rod, 1 T-shaped handle, 1 scraper, 2 wrenches, 1 3-meter steel tape measure, 1 pair of gloves, packed in aluminum case.,
The standard configuration has a sampling depth of 2 meters. For detailed parameters, see below.
Special points:
Can be sampled on different soil textures, easy to disassemble, small in size and easy to carry outdoors
Use it:
During soil sampling, different soil textures are encountered, such as clay, loam, sand, and peat soil. In order to achieve better sampling results, a suitable drill bit should be selected according to different soil textures. The following four types of drill bits are provided below, which can collect samples of 0-20cm on the surface of different texture soils, and can also be used for deep sampling.
The standard configuration:
1 heart-shaped clay drill, 1 heart-shaped loam drill, 1 heart-shaped sand drill, 1 cylindrical peat drill, 2 100cm extension rods, 1 50cm extension rod, 1 T-shaped handle, 1 scraper, 2 wrenches, 1 3-meter steel tape measure, 1 pair of gloves, packed in aluminum case.,
