Quick Details
-
Video encoding:
-
MPEG-2, MPEG-4 AVC/H.264
-
Video Bit-rate:
-
0.500~19.500 Mbps
-
Audio Encoding:
-
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC;
-
Audio Sampling rate:
-
48KHz
-
Modulation:
-
DVB-C, DVB-T, ATSC
-
RF frequency:
-
30~960MHz, 1KHz step
-
RF level:
-
-16~ -36dbm(71~91 dbuV), 0.1db step
-
Power:
-
DC 12V
-
Dimension(WxLxH):
-
144*238*52mm
-
Weight:
-
Approx 1kg
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAYTAI
-
Model Number:
-
DT-EM-HDRF-USB
-
Video encoding:
-
MPEG-2, MPEG-4 AVC/H.264
-
Video Bit-rate:
-
0.500~19.500 Mbps
-
Audio Encoding:
-
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC;
-
Audio Sampling rate:
-
48KHz
-
Modulation:
-
DVB-C, DVB-T, ATSC
-
RF frequency:
-
30~960MHz, 1KHz step
-
RF level:
-
-16~ -36dbm(71~91 dbuV), 0.1db step
-
Power:
-
DC 12V
-
Dimension(WxLxH):
-
144*238*52mm
-
Weight:
-
Approx 1kg
Product Description

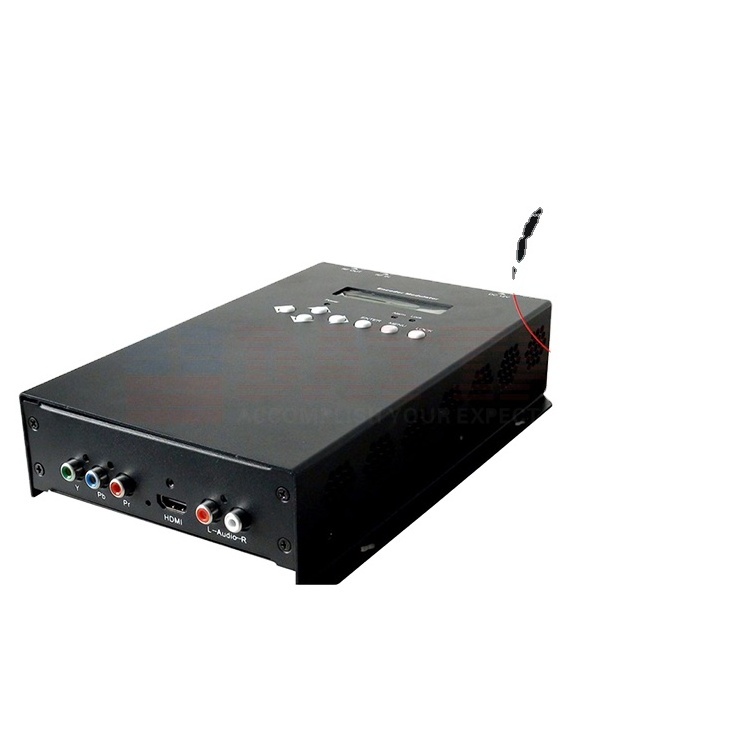

DAYTAI HD Video to Digital RF encoder modulator with USB,(DT-EM-HDRF-USB) is consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, hotel Digital Signage, shops etc.It is an all-in-one device integrating MPEG2 HD/SD and MPEG4 AVC H.264 HD/SD encoding and modulating to convert video/audio signals to digital RF out in the frequency range of 30~960MHz.The signals sourcecould be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signal is to be received by TVs or STBs etc.
Feature
⊙Low Delay
⊙USB record, playback and upgrade
⊙Support HDMI/YPbPr/CVBS input
⊙Support 1 DVB-T/DVB-C/ATSC RF out
⊙MPEG2 and MPEG4 HD/SD video encoding
⊙Dolby digital AC3 (2.0) audio encode, AC3 passthrough (for HDMI interface only)
⊙USB record, playback and upgrade
⊙Support HDMI/YPbPr/CVBS input
⊙Support 1 DVB-T/DVB-C/ATSC RF out
⊙MPEG2 and MPEG4 HD/SD video encoding
⊙Dolby digital AC3 (2.0) audio encode, AC3 passthrough (for HDMI interface only)
Specification
|
DVB-T Modulator Section
|
|
|
|
|
|
|
|
||||||
|
Standard
|
|
|
DVB-T COFDM
|
|
|
|
|
||||||
|
Bandwidth
|
|
|
6M, 7M, 8M
|
|
|
|
|
||||||
|
Constellation
|
|
|
QPSK, 16QAM, 64QAM,
|
|
|
|
|
||||||
|
Code rate
|
|
|
1/2, 2/3, 3/4, 5/6, 7/8.
|
|
|
|
|
||||||
|
Guard Interval
|
|
|
1/32, 1/16, 1/8, 1/4
|
|
|
|
|
||||||
|
Transmission Mode:
|
|
|
2K, 8K
|
|
|
|
|
||||||
|
MER
|
|
|
≥42dB
|
|
|
|
|
||||||
|
RF frequency
|
|
|
30~960MHz, 1KHz step
|
|
|
|
|
||||||
|
RF output level
|
|
|
-16~ -36 dBm (71~91 dbµV), 0.1db step
|
|
|
|
|
||||||
|
DVB-C Modulator Section (Option)
|
|
|
|
|
|
|
|
||||||
|
Standard
|
J.83A (DVB-C)
|
|
|
|
J.83B
|
J.83C
|
|
||||||
|
Constellation
|
16/32/64/128 /256 QAM
|
|
|
|
64/ 256 QAM
|
64/ 256 QAM
|
|
||||||
|
Bandwidth
|
8M
|
|
|
|
6M
|
6M
|
|
||||||
|
MER
|
≥43dB
|
|
|
|
|
|
|
||||||
|
RF frequency
|
30~960MHz, 1KHz step
|
|
|
|
|
|
|
||||||
|
RF level
|
-16~ -36dbm(71~91 dbµV), 0.1db step
|
|
|
|
|
|
|
||||||
|
Symbol rate
|
5000-9000 Ksps
|
|
|
|
|
|
|
||||||
|
ATSC Modulator Section (Option)
|
|
|
|
|
|
|
|
||||||
|
Standard
|
|
ATSC A/53
|
|
|
|
|
|
||||||
|
MER
|
|
≥42dB
|
|
|
|
|
|
||||||
|
RF frequency
|
|
30~960MHz, 1KHz step
|
|
|
|
|
|
||||||
|
RF output level
|
|
-16~ -36 dBm (71~91 dbµV), 0.1db step
|
|
|
|
|
|
||||||
|
Constellation
|
|
8VSB
|
|
|
|
|
|
||||||
|
System
|
|
|
|
|
|
|
|
||||||
|
Management
|
|
|
|
Local control: LCD + control buttons
|
|
|
|
||||||
|
Language
|
|
|
|
English
|
|
|
|
||||||
|
LCN Insertion
|
|
|
|
yes
|
|
|
|
||||||
|
General
|
|
|
|
|
|
|
|
||||||
|
Power supply
|
|
|
|
DC 12V
|
|
|
|
||||||
|
Dimensions
|
|
|
|
144*238*52mm
|
|
|
|
||||||
|
Weight
|
|
|
|
Approx 1kg
|
|
|
|
||||||
|
Operation temperature
|
|
|
|
0~45℃
|
|
|
|
||||||
