Quick Details
-
Power:
-
0-80KW
-
Dimension(L*W*H):
-
Capacity Request
-
Weight:
-
100 KG
-
Marketing Type:
-
New Product 2024
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
beer brewing equipment for micro brewery
-
Standard:
-
CE
-
Material:
-
SUS 304, SUS 316
-
Polish:
-
0.6um
-
Thickness:
-
Inner:4.0mm, Jacket: 2.0mm
-
Pressure:
-
Test: 0.3Mpa
-
Capacity in liters:
-
200L,3000L, 5000L, 1000L, 2000L, 3000L, 4000L,5000L.
-
Capacity in BBL:
-
3BBL, 5BBL, 7BBL, 10BBL, 20BBL, 30BBL, 40BBL.
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Cassman
-
Voltage:
-
Adjustable
-
Power:
-
0-80KW
-
Dimension(L*W*H):
-
Capacity Request
-
Weight:
-
100 KG
-
Marketing Type:
-
New Product 2024
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
beer brewing equipment for micro brewery
-
Standard:
-
CE
-
Material:
-
SUS 304, SUS 316
-
Polish:
-
0.6um
-
Thickness:
-
Inner:4.0mm, Jacket: 2.0mm
-
Pressure:
-
Test: 0.3Mpa
-
Capacity in liters:
-
200L,3000L, 5000L, 1000L, 2000L, 3000L, 4000L,5000L.
-
Capacity in BBL:
-
3BBL, 5BBL, 7BBL, 10BBL, 20BBL, 30BBL, 40BBL.

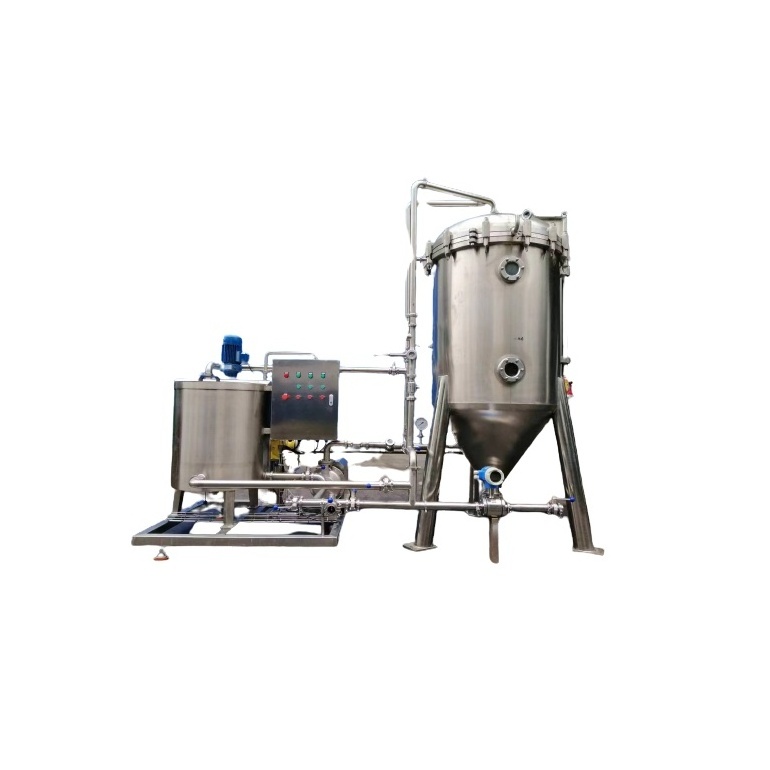

7000L/h kieselguhr filter beer Candle filter DE filter use diatomaceous earth 250L Buffer tank and Beer flow meter
Cassman is the leading Micro brewery equipment supplier in China, o ur s ervice include the brewery design, equipment manufacture, Installation at site and brewing technology transfer.
W e provide complete beer brewing solutions that include : malt handling system, brew house system, beer fermenting/storage system, cooling system, cleaning system, control system, package line.
Established in 2016, Cassman brewing equipment has been exported to more than 20 countries, which include USA, Canada, Australia, Japan, UK, France, Germany, Denmark etc.
7000L/h kieselguhr filter beer Candle filter DE filter use diatomaceous earth 250L Buffer tank and Beer flow meter
Unit I Kieselguhr Mixing system
01 Mix tank Φ450 SS304 1
02 Agitator(with reducer) CM85-LD-17/250 1 0.25Kw
03 CIP SS304
04 Drain system SS304
Unit 2 Pipeline
01 Beer pump GZA(S)50-32/2.2 1 5.2Kw
02 Measuring pump KD-60/0.6 SS304 1 0-170L/h, 0.37kw
03 Safe valve DN20 SS304 1
04 Pressure gauge 0-1MPa Shock-proof
05 Butterfly valve Φ38 SS304
06 Sight light Φ38 SS304
07 Connector Φ38 SS304
08 Blow-off valve DN20 SS304
09 beer flow meter Φ38 / 2 1 extra as a spare part
10 beer flow regulator Φ38
Unit 3 Filter system
01 Filter tank Φ800x 2330 304 1 Top pressure 0.6MPa
Filter accuracy ≤0.4EBC
Candle gap 50um, Filter
efficiency: 6.5~7.2hL/h.
05 Beer dispenser 304
06 Lock 304 1
07 Drain 304 1
08 CIP 304 1
Unit 4 Control cabinet
01 Cabinet 304 1
02 Electrical components
Turnkey Brewery Euipment
1----Mill System
Capacity: 100kg/h, 300kg/h, 500kg/h, 800kg/h, 1000kg/h.
Description: CE or UL listed Motor, Double roller, distance adjustable, stainelss steel 304 material.
Optional: Flexible Auger.
2----Brew House System
-Two-Four vessles or combined system.
-Capacity 100L-5000L, 1bbl-40bbl.
- Steam heated, electrical heated or natural gas
-Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.
-Lauter tun with rake system, milled false bottom, sparging spray ring, VFD motor, insulated 80mm.
-Boiling kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.
-Whirlpool with Tangential whirlpool inlet . insulated 80mm. Stainelsss steel 304.
-Insulated HLT and CLT with the pipelines and pumps
- External grant, hops back, heat exchanger. Wort oxygenation system, working platform.
-All the necessary pipelines and pumps.
3----Fermenter&BBT System
-Capacity: 100L-30000L, 1bbl-100bbl, + 25 % Head space
-Interior shell thickness 3-6 mm, Exterior shell=2mm
-100% TIG welding with pure argon gas shield
-Interior finish: pickled and passivated, external polished, 80mm insulated
- Test pressure 3 bar, working pressure 1.5 bar
-Glycol zones (Both on side and concial/bottom)
-60°conical bottom for Fermener, Shadow less side man way
-Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
-Mechanical relief valve 3 bar on CIP arm with pressure gauge
-Adjustable tank leveling pads
3----Cooling System
Description: Air type chiller + Ice water tank or Glycol tank
Capacity: 3HP, 5HP, 7HP, 10HP, 15HP, 20HP, 30HP+ 500L-20000L tank
Brand: Copeland, SANYO.
4----Control System
-PID or PLC system
-SIEMENS program S7-200, Siemens touch screen.
-Penumatic valves for optional
5----Canning line, Kegging line
| 1-1 | 2-1 | 4-1 |
| 300CPH | 500CPH | 600CPH |
