Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
hszn
-
Model Number:
-
High speed door
-
Product name:
-
Pvc high speed door
-
Frame Material:
-
PVC
-
PVC thickness:
-
0.9mm/1.2mm
-
Track material:
-
galvanized steel or 304 stainless steel
-
Running Speed:
-
Opening 0.2~1.2m/s
-
Wind loading:
-
Within level 6 wind
-
Door type:
-
Roller shutter
-
Motor warranty:
-
1 Year
-
Color:
-
custom color
Quick Details
-
Door Material:
-
pvc
-
Feature:
-
Thermal Insulation
-
Main Material:
-
PVC
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
hszn
-
Model Number:
-
High speed door
-
Product name:
-
Pvc high speed door
-
Frame Material:
-
PVC
-
PVC thickness:
-
0.9mm/1.2mm
-
Track material:
-
galvanized steel or 304 stainless steel
-
Running Speed:
-
Opening 0.2~1.2m/s
-
Wind loading:
-
Within level 6 wind
-
Door type:
-
Roller shutter
-
Motor warranty:
-
1 Year
-
Color:
-
custom color
Details Images
Products Description
|
Type
|
Servo high speed door
|
|
Tubular motor high speed door
|
||
|
|
Low configuration
|
High confiquration
|
|
||
|
Max. size
|
DW4500*DH4500
|
DW4500*DH4500
|
DW6000*DH5000
|
||
|
Min. size
|
DW1600*2250
|
DW1600*2250
|
DW1600*2250
|
||
|
Open speed
|
Max.1.2m/s
|
Max.1.2m/s
|
1.8m/s(adjustable)
|
||
|
Close speed
|
0.6m/s
|
0.6m/s
|
0.6m/s(adjustable)
|
||
|
Wind load resistance
|
300N/㎡（≤Force 7）
|
300N/㎡（≤Force 7）
|
300N/㎡（≤Force 7）
|
||
|
Noise Level
|
12dB
|
12dB
|
12dB
|
||
|
Power
|
0.75kw,1.5kw
|
1.5kW
|
0.75kw,1.5kw
|
||
|
Operating temperature
|
-35 ~ 55°C
|
-35 ~ 55°C
|
-35 ~ 55°C
|
||
|
Opening Frequency
|
60 times hour
|
60 times hour
|
60 times hour
|
||
|
Curtain color
|
Red ,Blue ,Yellow ,Orange ,Gery
|
|
|
||
|
Application
|
Automotive, Electronics, Logistics, Food, Electronics, pharmaceuticals, Traditional, Manufacturing and other Industries.
|
|
|
||
|
MOQ
|
1 Set
|
|
|
||
|
OEM
|
Accepted
|
|
|
||
|
Packing
|
Wooden Box
|
|
|
||
|
Delivery Time
|
12-22 Days
|
|
|
||
Product details

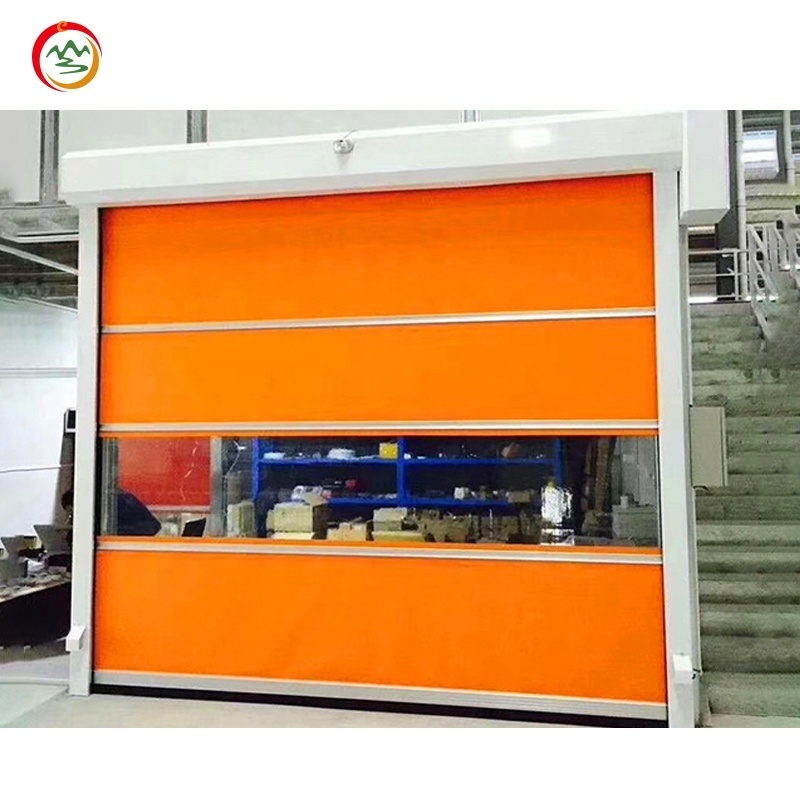

High speed door It can be used in clean workshops (textile,electronics, mechanical printing, chemical, packaging, logistics).Both sides of the door frame are equipped with double-sided sealed brushes, and the bottom is equipped with elastic PVC curtains,which can be tightly combined on uneven ground. The body rises and falls quickly, which plays a role of rapid isolation, dust-proof, wind-proof and odor-proof, so as to ensure a clean working environment. Equipped with a slow start and slow stop function, a long service life, and a safety infrared protection device, which can immediately reverse operation when it senses someone or something under the door to avoid injury to pedestrians, vehicles or other objects. The product has the characteristics of stable operation, high speed, energy saving, environmental protection, dust-proof, insect-proof, easy replacement and easy cleaning.
