Quick Details
-
Brand Name:
-
SEKO
-
Model Number:
-
DMS200
-
Place of Origin:
-
China
-
Horsepower:
-
Type
-
Cable Length:
-
Type
-
Outlet Size:
-
Type
-
Power:
-
Type
-
Product name:
-

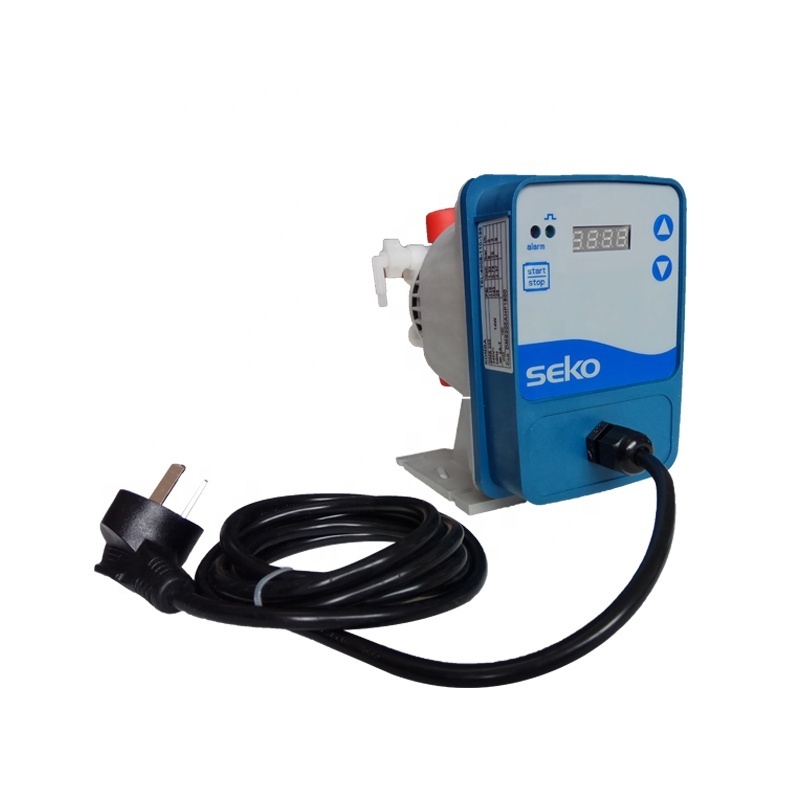

Seko Solenoid Accurate dosing pump
-
Use:
-
Swimming Pool, RO
-
Max pressure:
-
10 Bar
-
Material:
-
PVDF
-
Flow rate:
-
9L/H
-
Certificate:
-
CE Certificate
-
Warranty:
-
1 Year
-
Feature:
-
High Efficiency
-
Keywords:
-
Seko dosing pump
Quick Details
-
Application:
-
Water Treatment Solutions
-
Pressure:
-
Type
-
Voltage:
-
Type, 100-240Vac
-
Brand Name:
-
SEKO
-
Model Number:
-
DMS200
-
Place of Origin:
-
China
-
Horsepower:
-
Type
-
Cable Length:
-
Type
-
Outlet Size:
-
Type
-
Power:
-
Type
-
Product name:
-
Seko Solenoid Accurate dosing pump
-
Use:
-
Swimming Pool, RO
-
Max pressure:
-
10 Bar
-
Material:
-
PVDF
-
Flow rate:
-
9L/H
-
Certificate:
-
CE Certificate
-
Warranty:
-
1 Year
-
Feature:
-
High Efficiency
-
Keywords:
-
Seko dosing pump
KomBa series
KomBa is a simple yet reliable series of micro-processor based digital display type analogue solenoid dosing pumps. It includes DMS,DML,DMC and DMM series.
Main features:
Max pressure: 10 bar; Max flow: 9 L/H; pump head: PVDF
Application area:
Municipal water treatment and waste water treatment, Chlorine dioxide dosing,reverse osmosis,food,drink and pharmaceutical industry etc.
Strong compatibility
Standard Configuration: PVDF pump head and ceramic ball valve
. PVDF pump head can compatible with almost all chemicals for industry, waste water treatmentand drinking water area.
. Using ceramic ball valve can improve the reliability of dosing and the chemical compatibility of whole liquid end.
Reliability
A ll SEKO pumps are tested using modern technologies; their reliability is assured through use of high quality materials, intensive laboratory tests and life stress tests. Every pump is operated 6 hours at maximum speed before the final test. Test Certificate with pressure/flow rate diagram made under customer specification is available as an option.
Dosing mode
Flow manual control or automatic control (signal input control)
DML, DMM and DMC have liquid probe interfaces.
Manual exhaust valve can assist pulse-on the pump.
quid contacted
Liquid contacted materials
Pump head: PVDF
Valve balls: ceramic
Seals: FPM/EPDM
Diaphragm: PTFE
Installation method
Horizontal installation
Wall-hung type (need mounting brackets)
|
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
|
|
|
|
|||
|
Parameter
|
Type
|
Diaphragm
|
PTFE
|
|||
|
|
The flow rate
|
3L/H
|
9l/h
|
|||
|
|
Net Power
|
14w
|
--
|
|||
|
|
GW
|
2.3
|
KG
|
|||
|
|
In/Out(mm)
|
6*4
|
hose
|
|||
|
|
|
|
|
|||
|
Certificate and performance
|
CE
|
ISO9001
|
--
|
|||
|
|
DMS
|
DML
|
DMM
|
|||
|
|
Manual
|
Fluid level
|
Auot
|
|||
Main Features
All SEKO pumps are tested using modern technologies; their reliability is assured through use of high quality materials, intensive laboratory tests and life stress tests. Every pump is operated 6 hours at maximum speed before the final test. Test Certificate with pressure/flow rate diagram made under customer specification is available as an option.
