Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nybon
-
Model Number:
-
NYH
-
Product name:
-
Customized design hydraulic pulling winch
-
Capacity:
-
5~650KN or customizable
-
Drum:
-
Single/double drum
-
Speed:
-
Viriable by hydraulic control
-
Control Method:
-
Hydraulic control
-
Material:
-
Metal steel
-
Certification:
-
ISO CE
-
Rope Capacity:
-
Customizable
-
MOQ:
-
1 Set
Quick Details
-
Power Source:
-
Hydraulic
-
Application:
-
BOAT/CRANE
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nybon
-
Model Number:
-
NYH
-
Product name:
-
Customized design hydraulic pulling winch
-
Capacity:
-
5~650KN or customizable
-
Drum:
-
Single/double drum
-
Speed:
-
Viriable by hydraulic control
-
Control Method:
-
Hydraulic control
-
Material:
-
Metal steel
-
Certification:
-
ISO CE
-
Rope Capacity:
-
Customizable
-
MOQ:
-
1 Set

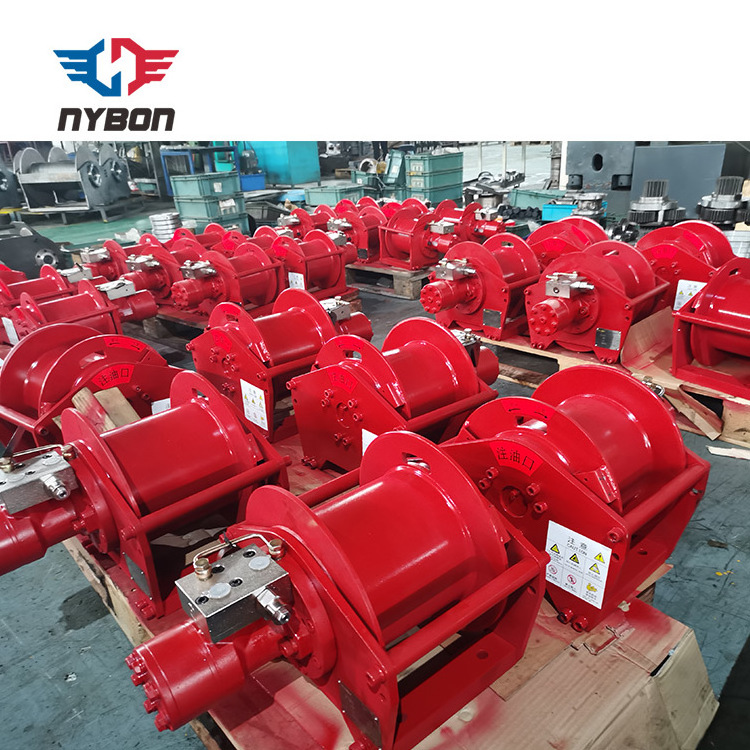

Customized design hydraulic pulling winch for tractors/anchor/excavator/drill/boat
Introduction:
Hydraulic winches, also known as hydraulic winch, are used in a variety of lifting equipment occasions. Types are divided into:built-in hydraulic winch, exposed hydraulic winch, high-speed hydraulic winch, low-speed hydraulic winch.
Main structures:
hydraulic winch usually by the hydraulic motor, control valve, gear boxes, rollers, brackets, (clutch) Rope, installation bracket and other combinations.
Hydraulic winches, also known as hydraulic winch, are used in a variety of lifting equipment occasions. Types are divided into:built-in hydraulic winch, exposed hydraulic winch, high-speed hydraulic winch, low-speed hydraulic winch.
Main structures:
hydraulic winch usually by the hydraulic motor, control valve, gear boxes, rollers, brackets, (clutch) Rope, installation bracket and other combinations.
Application:
Some hydraulic winch does not take stand, directly by the hydraulic motor, control valve group, the drum, the end of the shaft and other components, these can be based on customer needs matching, can be widely used in conveyor tensioners, construction machinery lifting cranes such as truck cranes, crawler cranes, aerial work platforms, forestry cranes, and port vessels such as port cranes, floating cranes, dredgers, crane cranes and davits, as well as heavy lifting equipment Such as oil rigs, offshore oil rigs,rotary drilling rigs for piling machines, rock drills, core drills, hydrostatic piles, and more.
Some hydraulic winch does not take stand, directly by the hydraulic motor, control valve group, the drum, the end of the shaft and other components, these can be based on customer needs matching, can be widely used in conveyor tensioners, construction machinery lifting cranes such as truck cranes, crawler cranes, aerial work platforms, forestry cranes, and port vessels such as port cranes, floating cranes, dredgers, crane cranes and davits, as well as heavy lifting equipment Such as oil rigs, offshore oil rigs,rotary drilling rigs for piling machines, rock drills, core drills, hydrostatic piles, and more.
Features：
>
One-or two-stage planetary gearboxes, smooth operation and reasonable structure.
> Normally closed friction type brake, high braking torque, safe and reliable operating.
> Small volume, compact structure and high transmission efficiency.
> Radial piston hydraulic motor with long life operating.
> Mounting frame is available on request.
> Normally closed friction type brake, high braking torque, safe and reliable operating.
> Small volume, compact structure and high transmission efficiency.
> Radial piston hydraulic motor with long life operating.
> Mounting frame is available on request.
>
Low noise during operation;
> Balance valve, shuttle valve, limit switch and other accessories are also available on request.
> Balance valve, shuttle valve, limit switch and other accessories are also available on request.
Technical Parameter
|
Model
|
Pulling Force
(kN)
|
Rope Speed
|
Working pressure
|
Diameter
of Rope
(mm)
|
Rope capacity
|
Motor Type
|
|
NY2.5-8-65-9
|
8
|
0-40
|
13
|
9
|
65
|
BM3-100F120101
|
|
NY2.5-10-60-10
|
10
|
0-40
|
13
|
10
|
60
|
BM3-125F120101
|
|
NY2.5-12-60-10
|
12
|
0-35
|
12.5
|
10
|
60
|
BM3-160F120101
|
|
NY2.5-15-55-11
|
15
|
0-30
|
12.5
|
11
|
55
|
BM3-200F120101
|
|
NY2.5-18-50-12
|
18
|
0-25
|
12
|
12
|
50
|
BM3-250F120101
|
|
NY2.5-20-50-12
|
20
|
0-20
|
10.5
|
12
|
50
|
BM3-300F120101
|
|
NY3-30-65-15
|
30
|
0-35
|
15.9
|
15
|
65
|
XHS2-420D51
|
|
NY3-40-60-16
|
40
|
0-35
|
16.4
|
16
|
60
|
XHS2-500D51
|
|
NY4-50-70-20
|
50
|
0-40
|
16.3
|
20
|
70
|
XHS3-900D240101
|
|
NY4-60-68-21.5
|
60
|
0-40
|
16
|
21.5
|
68
|
XHS3-1000D240101
|
|
NY5-80-100-24
|
80
|
0-40
|
15.6
|
24
|
100
|
XHS3-1800D240101
|
|
NY5-100-90-28
|
100
|
0-40
|
16
|
28
|
90
|
XHS3-2000D240101
|
|
NY7-200-150-40
|
200
|
0-25
|
17.8
|
40
|
150
|
XHS8-5000D480101
|
|
NY79-300-155-44
|
300
|
0-16
|
17
|
44
|
155
|
XHS7-3600D480101
|
|
NY79-350-150-46
|
350
|
0-16
|
16.8
|
46
|
150
|
XHS7-4300D480101
|
|
NY79-400-145-48
|
400
|
0-16
|
16.5
|
48
|
145
|
XHS7-5000D480101
|
Successful Project
Nybon has been exporting to more than 50 countries or regions, including the Russia, Kazakhstan,l Uzbekistan, Turkey, Spain,Netherlands, Italy, South Korea, Thailand, Singapore, Malaysia, Australia, Saudi Arabia, Kenya, Brazil, Peru, Togo, Cameroon, etc.And also many clients visit us from these countries.
Customer Praise
Exhibition
Machining Equipment
We have laser cutting machine, CNC plasma cutting system, box beam forming production line, automatic submerged arc welding system, CNC boring and miling machine, etc. For winches & electric hoists, we have test platform to test each products before delivery to make sure the quality and performance; Under our strictly mangement regulation, our products certificated by EAC, CE,ISO, CCS, BV, RMRS and many other certifcates;
