Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MY
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
0.2 KG
-
Warranty:
-
One Year
-
Working Temperature Range:
-
-60 - 250 ℃
-
Color:
-
Orange
-
Shape:
-
Round,rectangle,tapered and any out-of-shape
-
Thickness:
-
1.5 mm (standard)
-
MOQ:
-
1 Piece
-
heater temperature:
-
5 degree C-300 degree C
-
working temperature:
-
-60 degree C-400 degree C
-
Marketing:
-
direct selling
-
Model Number:
-
MYSRB, MYSRB2013 silicone rubber
-
Note:
-
Can be customized as your requiremnts
Quick Details
-
Type:
-
Band Heater
-
Power Source:
-
Electric
-
Voltage:
-
3V-440V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MY
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
0.2 KG
-
Warranty:
-
One Year
-
Working Temperature Range:
-
-60 - 250 ℃
-
Color:
-
Orange
-
Shape:
-
Round,rectangle,tapered and any out-of-shape
-
Thickness:
-
1.5 mm (standard)
-
MOQ:
-
1 Piece
-
heater temperature:
-
5 degree C-300 degree C
-
working temperature:
-
-60 degree C-400 degree C
-
Marketing:
-
direct selling
-
Model Number:
-
MYSRB, MYSRB2013 silicone rubber
-
Note:
-
Can be customized as your requiremnts

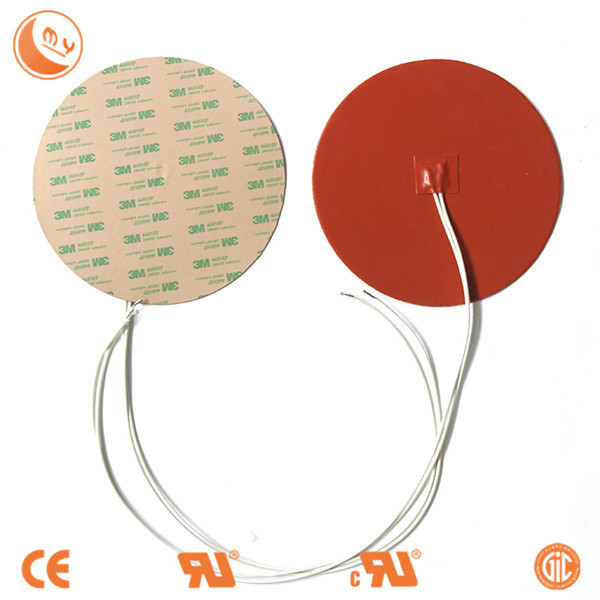

Customized adhesive heat element tape with heating element temperature control
Descript ion:
The silicone rubber heaters have advantages of thinness, lightness and high flexibility.It can close contact with the heated objects and transfer heat to anywhere you need.The silicone rubber heater has advantages of high insulativity,since the insulating layers are made from silicone rubber and fiberglass cloth.
|
NO. |
Description |
Parameter |
|
|
1.
|
size
|
Width range |
10mm~1200mm |
|
Length range |
10mm~ 1 0000mm |
||
|
Thickness |
1.50mm |
||
|
2. |
Voltage range |
1.5v~400v |
|
|
3. |
Power density range |
0. 07 w/ cm²~2. 1 w/ cm² |
|
|
4. |
Power deviation |
5% |
|
|
5. |
Resistance precision |
±10% |
|
|
6 . |
working temperature range |
-60~250 °C (-140~482 ° F) |
|
|
7 . |
Breakdown voltage |
20~50VK/mm |
|
|
8 . |
Mechanical stress |
100.00kg/ cm² |
|
|
9 . |
Minimum bending radius |
3.20mm |
|
NOTE:
•Many kinds of shapes and sizes are available according to your specific requirements.
•Breakdown voltage:20~50VK/mm,please be assured use.
•The heater cannot be put into fluid directly,however,it shows a good performance in high humidity,as silicone rubber is repellent.
Features:
1.Maximum temperature resistant of insulant: 300°C
2 .Insulating resistance: ≥ 5 MΩ
3.Compressive strength: 1500V/5S
4. Fast heat diffusion, uniform heat transfer,directly heat objects on high thermal efficiency,long service life,work safe and not easy to aging .
Main applications:
1) Thermal transfer equipment
2) Freeze or condensation prevention in housings containing electronic equipment, for examples: traffic signal boxes, automatic teller machines, temperature control panels, gas or liquid control valve housings
3) Drums and other vessels and viscosity control and asphalt storage
4) Medical equipment such as blood analyzers, medical respirators, test tube heaters, etc.
5) Computer peripherals such as laser printers, duplicating machines
Installations of silicone heater:
Steel spring
Velcro 3M
A
dhesive
Temperature controller for silicone heater:
Digital temperature controller Dial temperature controller
When inquire, please specify:
1.Size and shape of the heater you need;
2.Power or temperature of the heater you need;
3.Working environment;
4.Quantity of the heater you need;
5.Special requirements if you have.
1.All Products one year warranty and all goods on appro for 3 months .
2.Fast delivery and competitive price.
3.We offer a free help to you for an ideal thermal heating solution conform with your application.
4.Custom made size,shape and voltage&wattage.
