Quick Details
-
Application:
-
Workshop
-
Design Style:
-
Traditional
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JiuQing
-
Model Number:
-
GB/T3003-2006 JQ201
-
Type:
-
Other Heat Insulation Materials
-
Product Name:
-
1260 ceramic blanket heat resistant wool for furnace
-
Color:
-
Pure white
-
Chemical composition:
-
AL2O3+SiO2
-
Fiber Diameter:
-
3μm-5μm
-
Certificates:
-
ISO9001:2008 CE MSDS
-
Thickness:
-
6-50mm
-
Density:
-
96/128/160kg/m3
-
Width:
-
600mm/1200mm
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Workshop
-
Design Style:
-
Traditional
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JiuQing
-
Model Number:
-
GB/T3003-2006 JQ201
-
Type:
-
Other Heat Insulation Materials
-
Product Name:
-
1260 ceramic blanket heat resistant wool for furnace
-
Color:
-
Pure white
-
Chemical composition:
-
AL2O3+SiO2
-
Fiber Diameter:
-
3μm-5μm
-
Certificates:
-
ISO9001:2008 CE MSDS
-
Thickness:
-
6-50mm
-
Density:
-
96/128/160kg/m3
-
Width:
-
600mm/1200mm

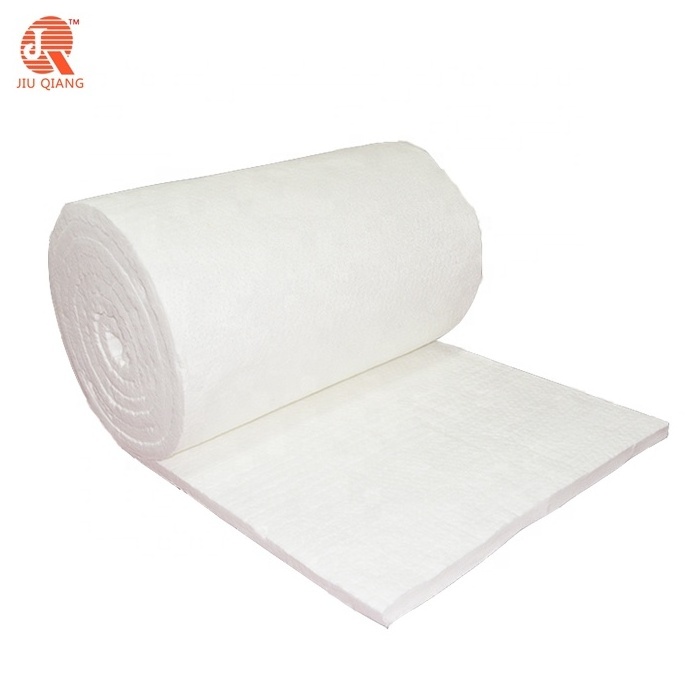

1260 ceramic blanket heat resistant wool for furnace
Product De scription
Ceramic fiber blanket is made through intensive needle-punching processing. The product does not contain any bond or other compositions, and also no slag inclusion content. The intensive needle-punching techniques’ improved the fiber inter-texture and the resistance performances against delaminating as well as the tensile strength. It has good high temperature shrinkage after the heat treatment of 750-950 during the producing. Beside the characteristics in common, it have better sound insulation performance and mechanism strength, is easy to machining and install.
Product Features
1. Low thermal conductivity
2. Excellent heat insulation
3. Excellent chemical stability
4. Shock and chemical attack resistant
5. Low thermal conductivity and shrinkage
6. Low shrinkage under high temperature
7. Excellent sound insulation and resistance of folding
Product Application
1. Industrial furnace, heaters, inside wall of high temperature tube.
2. Electric power furnace, nuclear power station and heat insulation.
3. Liners of chemical industry high temperature reaction equipment and heat insulation.
4. Fire proofing and heat insulation of high building.
5. Heat insulation for kiln door and lid.
6. Filtration material of high temperature.
Technical Data
|
Type |
Common |
Standard |
High Purity |
High Aluminium |
Zirconia |
|
|
Classification temperature (°C) |
1100 |
1260 |
1260 |
1360 |
1400 |
|
|
Working Temperature (°C) |
< 1000 |
1050 |
1100 |
1260 |
1350 |
|
|
Color |
White |
Pure white |
Pure white |
Pure white |
Pure white |
|
|
Density (kg/m3) |
96/128/160 |
96/128/160 |
96/128/160 |
128/160 |
128/160 |
|
|
Shrinkage on heating (%) (24 hours, density as 128/m3) |
-4
|
-3
|
-3
|
-3
|
-3
|
|
|
Thermal conductivity by different temperature (w/m.k) (density as 128kg/m3) |
0.09(400°C)
|
0.09(400°C)
|
0.09(400°C)
0.16(800°C)
|
0.12(600°C)
|
0.16(800°C)
|
|
|
Tensile strength (MPa)
|
0.04 |
0.04 |
0.04 |
0.04 |
0.04 |
|
|
Chemical composition (%) |
AL2O3 |
44 |
46 |
47-49 |
52-55 |
39-40 |
|
AL2O3+SiO2 |
96 |
97 |
99 |
99 |
- |
|
|
AL2O3+SiO2+ZrO2 |
- |
- |
- |
- |
99 |
|
|
ZrO2 |
- |
- |
- |
- |
15-17 |
|
|
Fe2O3 |
<1.2 |
<1.0 |
0.2 |
0.2 |
0.2 |
|
|
Na2O+K2O |
≤0.5 |
≤0.5 |
0.2 |
0.2 |
0.2 |
|
|
Size (mm) |
14640/7200/3600×1220/610×6-50; Other sizes can be available. |
|||||
Packaging & Shipping
We often adopt carton packages or woven bags for our products, but for load and unload consideration, you can also adopt pallet package.
