Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CONWELL
-
Model Number:
-
KW3-95
-

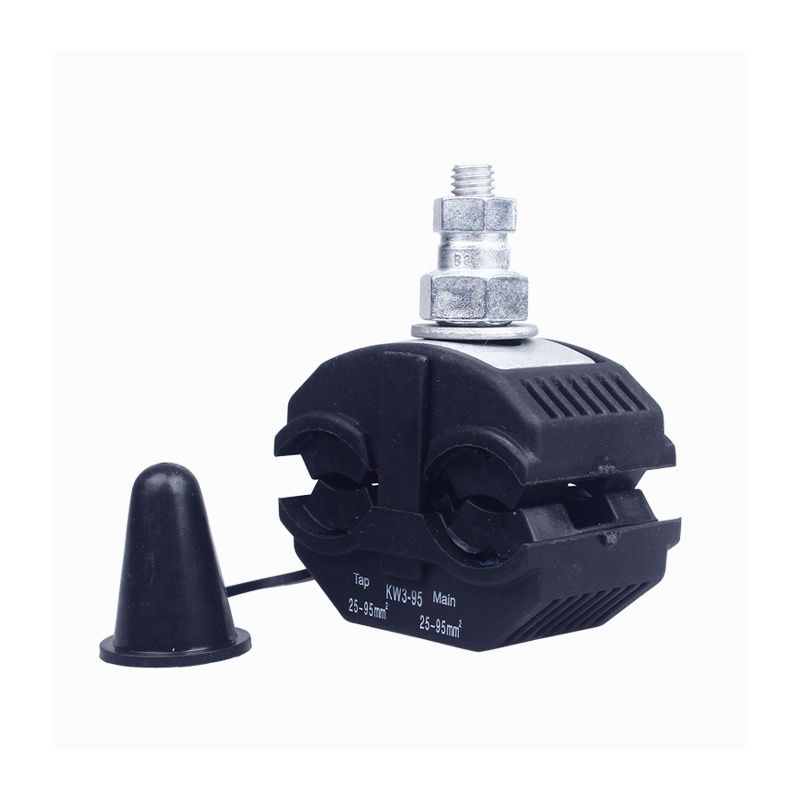

Product Name:
-
wire tap connector
-
Shell material:
-
PA66
-
Teeth material:
-
Aluminum,Brass,Copper
-
Screw:
-
45# Steel
-
Nut material:
-
Zinc alloy and zinc plating
-
lining material:
-
PVC or rubber
-
Piercing depth:
-
3-4mm
-
Standard:
-
CE,RoHs
-
Voltage:
-
0.1-6KV
-
Function:
-
waterproof
Quick Details
-
Type:
-
wire tap connector
-
Application:
-
Power
-
Gender:
-
connector
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CONWELL
-
Model Number:
-
KW3-95
-
Product Name:
-
wire tap connector
-
Shell material:
-
PA66
-
Teeth material:
-
Aluminum,Brass,Copper
-
Screw:
-
45# Steel
-
Nut material:
-
Zinc alloy and zinc plating
-
lining material:
-
PVC or rubber
-
Piercing depth:
-
3-4mm
-
Standard:
-
CE,RoHs
-
Voltage:
-
0.1-6KV
-
Function:
-
waterproof
| Basic Data | ||
| Code | KW3-95 | |
| Name |
Insulation Piercing Connector 25-95 sqmm and 25-95 sqmm |
|
| Certificate |
CE,RoHs,ISO9001 |
|
| Benefits | > Made of hard, corrosion resistant aluminum alloy | |
| > Tested according to international and many national standards | ||
| > Teeth either of pure aluminum or tin-plated aluminum | ||
| Dimensions | ||
| Weight | 174g | |
| Main conductor | 25-95 sqmm | |
| Branch conductor | 25-95 sqmm | |
| Features | ||
| Bolt | M8x80 | |
| Mechanical | ||
| Tightening torque | 20Nm | |
| Specification | ||
| Construction | Component | Material |
| Body | Tin coated corrosion resistant aluminum alloy | |
| Washer | Conical spring washer | |
| Screw | Hot dip galvanized | |
| Cover | Weather and UV-radiation resistant plastic | |
| Installation | Remove conductor inlet caps according to the connection to be made. Open the upper lid.Unscrew the screw until the conductors can be placed into the connector. Tighten the screw until the shearhead breaks. Shut the upper lid. | |
| ETIM | ||
| Surface protection | Tinned | |
| Material main conductor | Aluminum/Copper/Brass | |
| Terminal insulated | Aluminum/Copper/Brass | |
| Type of connection | Insulation piercing connector IPC | |
Application
insulation piercing connector
Packaging
1. 10 pieces in one inner box, 100 pieces in one carton.
Carton Size:45.5*36*21cm
N.W./G.W.:18.5/17.5KGS
2.Specific packaging can be made to order.
