Quick Details
-
Suitable stator I.D:
-
40-110mm
-
Max. OD. Of stator:
-
160mm
-
Suitable stator max. stacking height:
-
10-80mm
-
Air pressure:
-
0.5-0.8MPa
-
Power and voltage:
-
0.75kW, 220V, Single Phase, 50Hz
-
Dimension (L x W x H):
-
1100 x 700 x 1400mm
-
Machine weight:
-
About 450kg
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Zhenhuan
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support
-
Suitable stator I.D:
-
40-110mm
-
Max. OD. Of stator:
-
160mm
-
Suitable stator max. stacking height:
-
10-80mm
-
Air pressure:
-
0.5-0.8MPa
-
Power and voltage:
-
0.75kW, 220V, Single Phase, 50Hz
-
Dimension (L x W x H):
-
1100 x 700 x 1400mm
-
Machine weight:
-
About 450kg

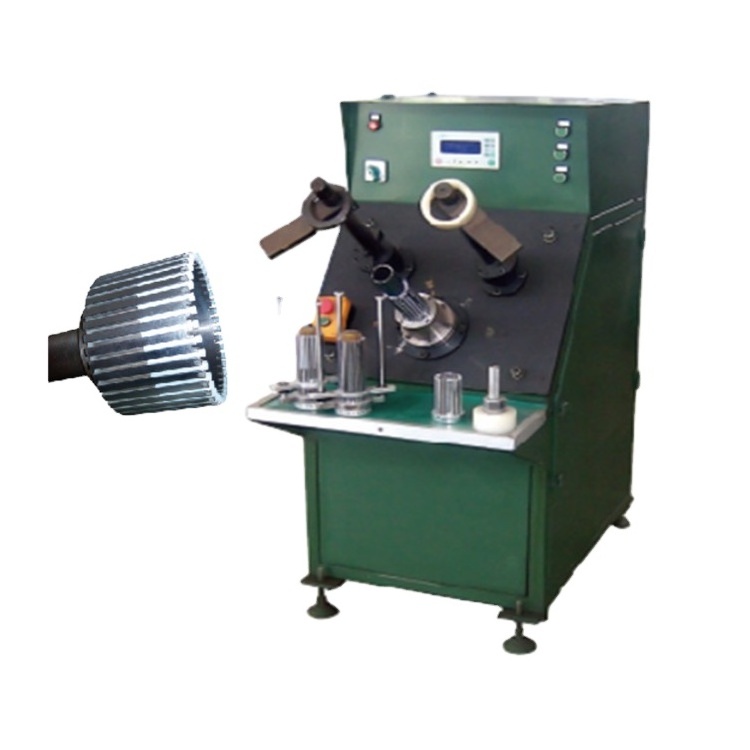

Simple Type Stator Coil Inserting Machine
I Description of the machine
This machine is used for insetting coils into stator slots. This machine doesn’t contain slot insulation function. It should be used with slot insulation machine together.
Simple type coil insertion machine is popular used in small output for 500 pieces per day.
II Main technical data
|
Item |
Data |
|
Model |
HSX-5B |
|
Suitable stator I.D |
40-110mm |
|
Max. OD. Of stator |
160mm |
|
Suitable stator max. stacking height |
10-80mm |
|
Air pressure |
0.5-0.8MPa |
|
Power and voltage |
0.75kW, 220V, Single Phase, 50Hz |
|
Dimension (L x W x H) |
1100 x 700 x 1400mm |
|
Machine weight |
About450kg |
If you want to know more information, please contact us freely.
