Quick Details
-
Dimension(L*W*H):
-
1300*860*1100
-
Weight:
-
260 KG
-
Marketing Type:
-
New Product 2023
-
Name:
-
Screw Oil Pressing Machine
-
Function:
-
Press Oil Seeds
-
Application:
-
Edible Oil Production
-
Advantage:
-
High Oil Output
-
Feature:
-
Operate Simply
-
Capacity:
-
1TPD-1000TPD
-
Application range:
-
Crude Seed Oil
-
After Warranty Service:
-
Field Maintenance
-
Color:
-
Customer Required
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Production Capacity:
-
100-1000kg /H
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1300*860*1100
-
Weight:
-
260 KG
-
Marketing Type:
-
New Product 2023
-
Name:
-
Screw Oil Pressing Machine
-
Function:
-
Press Oil Seeds
-
Application:
-
Edible Oil Production
-
Advantage:
-
High Oil Output
-
Feature:
-
Operate Simply
-
Capacity:
-
1TPD-1000TPD
-
Application range:
-
Crude Seed Oil
-
After Warranty Service:
-
Field Maintenance
-
Color:
-
Customer Required
-
After-sales Service Provided:
-
Online Support
Products Description

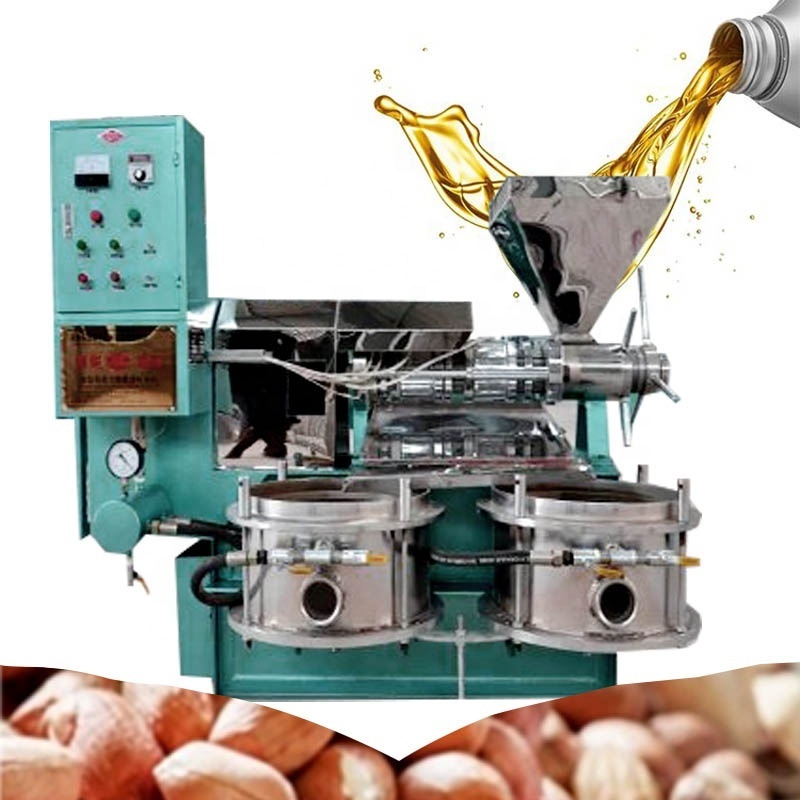

Screw Oil Press Machine
Features of screw oil press machine:
01. High production capacity and good quality final product oil:
Strew oil press machine adopts most advanced technology. It can make 100-500kg/hour. Squeezed oil contains little impurities and high nutrients.
02. Easy operation, less labor and low labor intensity:
Strew oil press machine
is simple to operate, only 1-2 workers needed. Training will be provided, also easy to learn. Workers only need to check on the machine, no much work to do.
03. Small spaced needed & Low power consumption:
YZ series hydraulic oil press occupies at most 2 meters at height, 2.8 meters at length, 1.3 meters at width. You can easily put it in your yard or farm to start your own business. Even better, low power needed to operate. It can save much money on electricity.
04. Less investment and more profit:
The screw oil press equipment is easy to install and disassemble.
Machine Working Principle
When the screw oil press is running, the processed oil enters the pressing chamber from the hopper. The material embryo is continuously pushed inward by the pressing screw for squeezing. Since the material embryo is in motion in the pressing chamber of the screw oil press, under the condition of high pressure in the pressing chamber, a large frictional resistance is generated between the material embryo, the pressing snail and the pressing chamber, so that Friction occurs between the blank and fine materials, causing relative motion. On the other hand, since the root diameter of the pressing snail gradually increases and the pitch gradually decreases, when the pressing snail rotates, the thread force material embryo can both push forward and turn outward, and at the same time approach the thread of the pressing snail. The material layer on the surface also rotates with the pressing shaft. In this way, each embryo particle in the pressing chamber does not move at the same speed and in the same direction, but there is relative motion between the particles. The heat generated by friction meets the necessary heat for the operation of the oil extraction process, which helps to promote thermal denaturation of the protein in the embryo, destroys the colloid, increases the plasticity, and also reduces the viscosity of some parts that are easy to precipitate oil, so The oil yield rate of the screw oil press is improved, so that the oil in the oil is squeezed out and flows out from the gaps in the garden rows and strips.
Raw materials
The screw oil press can operate continuously, with low labor intensity. The residue cake after the oil is produced is thin and small, which is convenient for comprehensive utilization. The screw oil press can press oils including peanuts, soybeans, sunflower seeds, rapeseed, cottonseed, etc.
Production oil
Technology parameters
|
Model
|
Capacity
|
Power
|
Weight
|
Size
|
Voltage
|
|
BXD-70
|
100kg/H
|
3KW
|
260KG
|
1300*860*1250mm
|
220v
|
|
BXD-100
|
150-180kg/H
|
7.5KW
|
700KG
|
1800*1100*1500mm
|
380v
|
|
BXD-125
|
200-300kg/H
|
15KW
|
1100KG
|
1900*1300*2600mm
|
380v
|
|
BXD-150
|
400-500kg/H
|
30KW
|
1400KG
|
2300*1600*2600mm
|
380v
|
MODEL 70
MODEL 100
MODEL125
