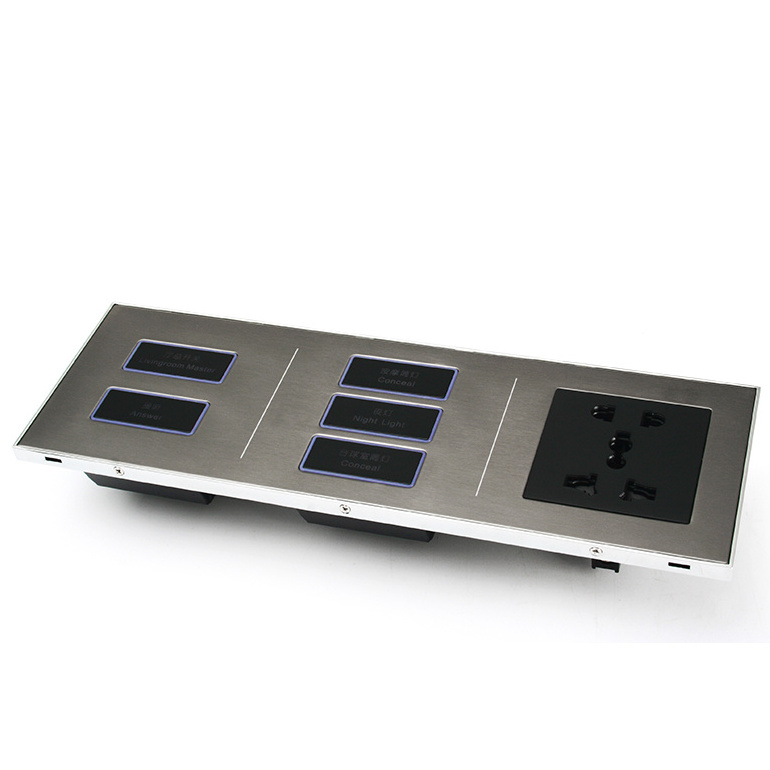

Brushed Gun Color Metal Connected Control Panel Switch with RS485 Modbus Programmable Scene Control Function and 5-pin Socket

Brushed Gun Color Metal Connected Control Panel Switch with RS485 Modbus Programmable Scene Control Function and 5-pin Socket

T his product is our latest developed soft touch design switch which is special for starred luxury hotels. It is using Modbus communication protocol, which will be compatible with Modbus RCU control to achieve luxury starred hotels intelligent central management.

High Quality Zinc Alloy Frame and Brushed Stainless Steel Panel Materials

Exclusive design with high quality zinc alloy frame and brushed stainless steel panel. I t gives you good visual effect, well enhances the hotel level and attraction, will bring more guests and all guests satisfied with distinguished enjoy.

Function Keys, Words C ustom-Made Available

Function keys text on the panel are easy for identification, very image and vivid. Customized design is available including different languages according to different countries clients requirements.

LED Backlight Design

All panels are with nice LED backlight indicator (white and orange). These LED light is soft, not hurt the eyes or disturb the guest sleeping. Meanwhile, it is easy and convenient for guest to recognize at night.

RS485 MODBUS protocol technology, support RCU central program integrate and control, easy wiring

All panels are based on RS485 Standard Modbus communication protocol, International Popular, stable and flexible. It is compatible with most RCU. With it, the stars luxury intelligent hotels will achieve smart centralized mangement control easily and efficiently.

Modular, Integrated Design

Single or connected 1 to 5 modular design can be applied in different space and venues. The panel is integrated in order to make it more firm and secure. Function keys can be customized upon request.

Practical 5-Pin Socket with Modular Design

This panel is practical single panel 86*86mm universal 5-pin socket. Applicable for both flat and round plug, wide applicability and very convenient. Optional 1 to 5 modular design can be applied in different space and venues. Functions can be custom-designed. Convenient and practical, reasonable combination to meet different guest needs.

Rich Set of components

This product has a rich set of components, telephone, TV, computer socket, 5 or 7 pin socket, dimmer switch, speed-control switch. It can be combined in any way you like. We can use different panel materials such as tempered glass, aluminum alloy, brushed aluminum, PC, etc.

Install Mounting Box You Can Choose 86*86*45mm, for Single or for Connected Version

Two install screws distance is 60mm.

Technical Parameters:

Input voltage: 12V DC (220V AC option)

Communication protocol: RS485 Modbus

Materials: Brushed stainless steel panel

Color: Gun gray

LED backlight: White and orange

Operating: Simple touch

Product size: 258*86*35mm

Fixed screw center distance: 60mm (86mm button box)

Operating temperature: -10 ℃ --60 ℃

Working humidity: 0 - 95%
