Hotel Modern Led Light Touching Do Not Disturb Switch Doorbell Sign Panel

Hotel Modern Led Light Touching Do Not Disturb Switch Doorbell Doorplates

This model is our G1 series of hotel touch doorbell system which includes 3 conponents: Outside panel, inside panel, doorbell . The matched key card switch and mounting box also can be provided if need.

The panels is in line with integrated functions of doorbell, do not disturb, make up room in black crystal panels. Room number or one more function such as laundry/check-in/please wait also can be putted into panels if demand.

It is luxurious appearance with LED touch design function key display convenient for identification at night.

This product can be widely used in hotels, resorts, clubs, etc. LED backlit touch design, very convenient for night using.

This is wire version, another choice 433 wireless also can be made, which is more easily for the old hotel use with existing wire diagram, just need a simple setting with the setter, and make the connection between L and N and no specially need the wire connect between above 3 parts. Then the device is ready to use. Finally achieve the process of wireless of connection of the three components.

LED Backlight Display

Different LED backlight display for different functions recognition.

* LED backlit touch-design function:
---Don't disturb red
---make up room green
-- bell touch blue

Indoor panel:
* DND and MUR -- touch button both with blue LED

Crystal Tempered Glass Panel with silver/gold frame

Crystal tempered glass with or without silver/gold frame of nice and delicate glazed quality panels. It also has non-conducting surface and easy to clean.

Personalized Customization

Customizable pattern, logo, words and panel color and LED color upon request. Different languages description and pattern can be printed on the panel so users from all around the world are able to understand the function keys better.

Easy Operation, Precision Machining

Touch-sensitive pads control panel with the combination of vivid graphic and description nakes each function key easily understood by users. CNC processed magnesium aluminum alloy and iPhone touch design makes nice and luxurious appearance.

Touch Control

0.01 second fast and furious touch reaction time.

High-quality PC Flame Retardant Materials

The panel and mounting box both applies high-quality V0 ABS flame retardant materials, fireproofing, flame retardant and strong security.

Excellent Cooling Design

Switch base is designed multi-cellular and the on-off circuit is designed in open space which makes it faster to cool down, and prolong the service life.

Seamless Installation

Standard 86 mounting box to achieve seamless as well as secure installation with wall.

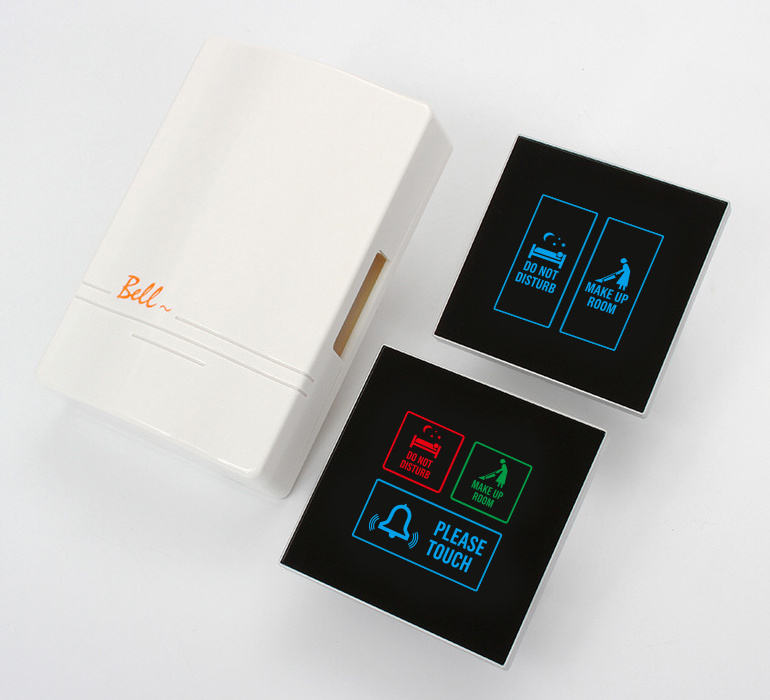

Doorplate Panel + Control Panel + Bell Set with Pleasant Bell Ring

Pleasant mechanical bell ring sound has the unique quality different than the regular music tunes.

Product Parameters

Working voltage: 180-260V AC (other voltage can be customized)

Size: 86*86*45mm

Panel materials: tempered glass with zinc alloy frame

Service life: 100,000 times

Self-consumed power: <1W

Working temperature: -10℃~60℃

Working humidity: 0~95%
