High quality YUCHAI engine backhoe loader small tractor excavator loader with backhoe
High quality YUCHAI engine backhoe loader small tractor excavator loader with backhoe
High quality YUCHAI engine backhoe loader small tractor excavator loader with backhoe
High quality YUCHAI engine backhoe loader small tractor excavator loader with backhoe
High quality YUCHAI engine backhoe loader small tractor excavator loader with backhoe
High quality YUCHAI engine backhoe loader small tractor excavator loader with backhoe
High quality YUCHAI engine backhoe loader small tractor excavator loader with backhoe
High quality YUCHAI engine backhoe loader small tractor excavator loader with backhoe

High quality YUCHAI engine backhoe loader small tractor excavator loader with backhoe

FOB Reference Price: Get Latest Price
≥1 Pieces
US $37500
≥3 Pieces
US $32000
≥5 Pieces
US $24000
≥8 Pieces
US $19200
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Dimension(Long * Breadth * High):
11300*2300*3770
Machine Weight:
7630 kg
Bucket capacity:
1.0m³
Product name:
FUKAI Mini backhoe Loader
Color:
Customized Color Accept
Engine type:
In Line Direct injection Four-Stroke and Injection Combustio
Tyre:
14-17.5/19.5L-24

Quick Details

Engine Brand:
YUCHAI
Power:
75 KW
Brand Name:
FUKAI
Place of Origin:
Shandong, China
Dimension(Long * Breadth * High):
11300*2300*3770
Machine Weight:
7630 kg
Bucket capacity:
1.0m³
Product name:
FUKAI Mini backhoe Loader
Color:
Customized Color Accept
Engine type:
In Line Direct injection Four-Stroke and Injection Combustio
Tyre:
14-17.5/19.5L-24
Product Overview

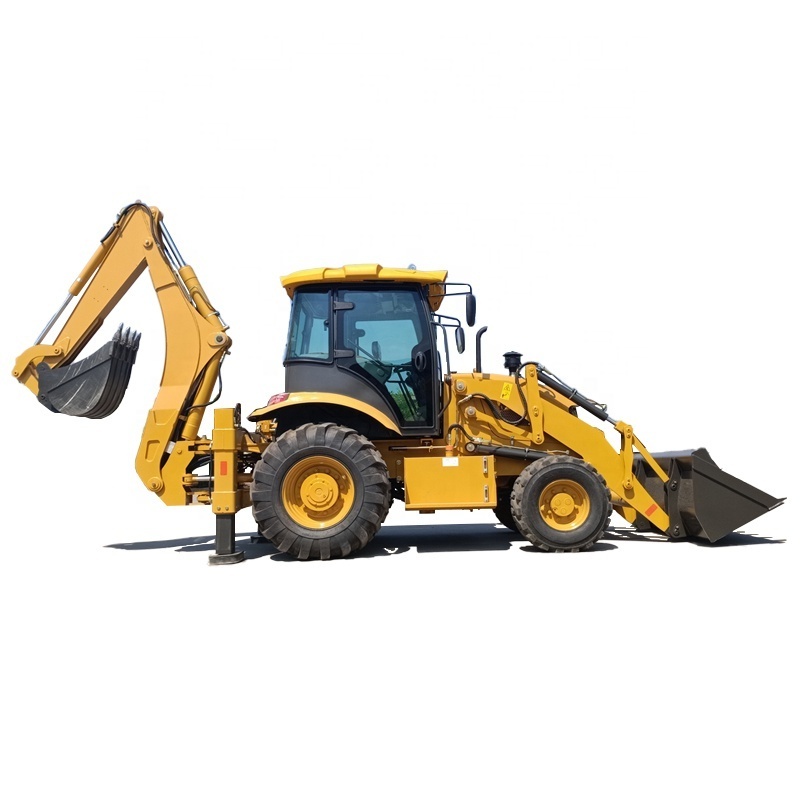

High quality YUCHAI engine backhoe loader small tractor excavator loader with backhoe

JAK-870K is a kind of the multi-functional engineering machinery incorporating and loading into an organic whole. It adopts the
complete machine is rationally distributed and compact; it is comfortable and convenient to handle, the turning radius is small
and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the
building, the oil field, water conservancy, the forest farm, the military project, and so on. It also can be used in excavating,
carrying and leveling and can carry on the flexible and swift homework to scrap heap and waste residue of the large and
medium-sized enterprise. It is the ideal model of realizing machine with multi-functions.
FEATURES AT A GLANCE

* HIGH OPERATING EFFICIENCY

* HIGH POWER ENGINE

* LOW FUEL CONSUMPTION

* SIMPLE CONTROL

* EASY MAINTENANCE

* LOW NOISY CAB

* LOW MAINTENANCE COST



PRODUCT SPECIFICATIONS
Item
JFK-870
Dimension(mm)
11300*2300*3770
Height over cab
3000mm
Rated dynamic/static Load of front axle
7.5t/18.75t
Operating weight
3Ton
Dumping Height
2742mm
Dumping Distance
925mm
Min.  Ground Clearance
300mm
Bucket Capacity
1.0 m³
Breakout Force
38 KN
Loading Lifting Capacity
2500 KG
Digging Depth
52mm
Max. Digging Depth
4082mm/4500mm
Backhoe bucket capacity
0.3m³
Wheel base
2200mm
Swing Angle of Excavator Grab
190°
Max. Pulling Force
39KN
ENGINE
Engine Model
YUCHAI YC4A105Z-T20
Engine power
75kw/2200rmp
Pattern
In line,direct injection, 4-storke, and Injection combustion chamber.
Cylinder-inside Diameter *Stroke
4-108*120
Max. Torque
≥261.7N.M/ 1800r/min
Rated Speed
2200r/min
Displacement
4.4l
Min. Fuel Consumption
≤216g/km.h
TRANSMISSION  SYSTEM
Torque         Converter
Type
Single-stage Three Elements
Model
YJ280/TLB1-4WD
Max. Efficiency
84.4%
Inlet Pressure
0.5Mpa
Outlet Pressure
1.1Mpa-1.3Mpa
Cooling Method
Oil-cooling Pressure Circulation
Gear Box
Type
Fixed Shaft Power  Transmission
Oil Pressure of Cluth
1373Kpa-1569Kpa
Gears(Chinese/Carraro)
Two gears ahead, Two gears astern, Carraro four gears ahead, four gears astern
Max. speed(Chinese/ Carraro)
28/38 Km/h
Axels
Manufacturer
Chinese of Carraro
Rated dynamic/static load of front axle
7t/22t
STEERING STYRE
Model of Steering Device
BZZ5-250
Steering angle
±33°
Min. turning radius
6950mm
Pressure of the system
12mPA
BRAKE SYSTEM
Service Brake
Wet-type
Internal Type
Self-regulation
Self-balance
Emergency Brake
Spring Brake
Terminating Brake Through Hydraumatic
TYRE
Model
114-17.5/19.5l-24
Pressure of front Wheel
0.55mpa
Pressure of Back Wheel
0.23Mpa
PACKAGE
1 Unit in 40HQ
PRODUCT CONFIGURATION
