Main Features

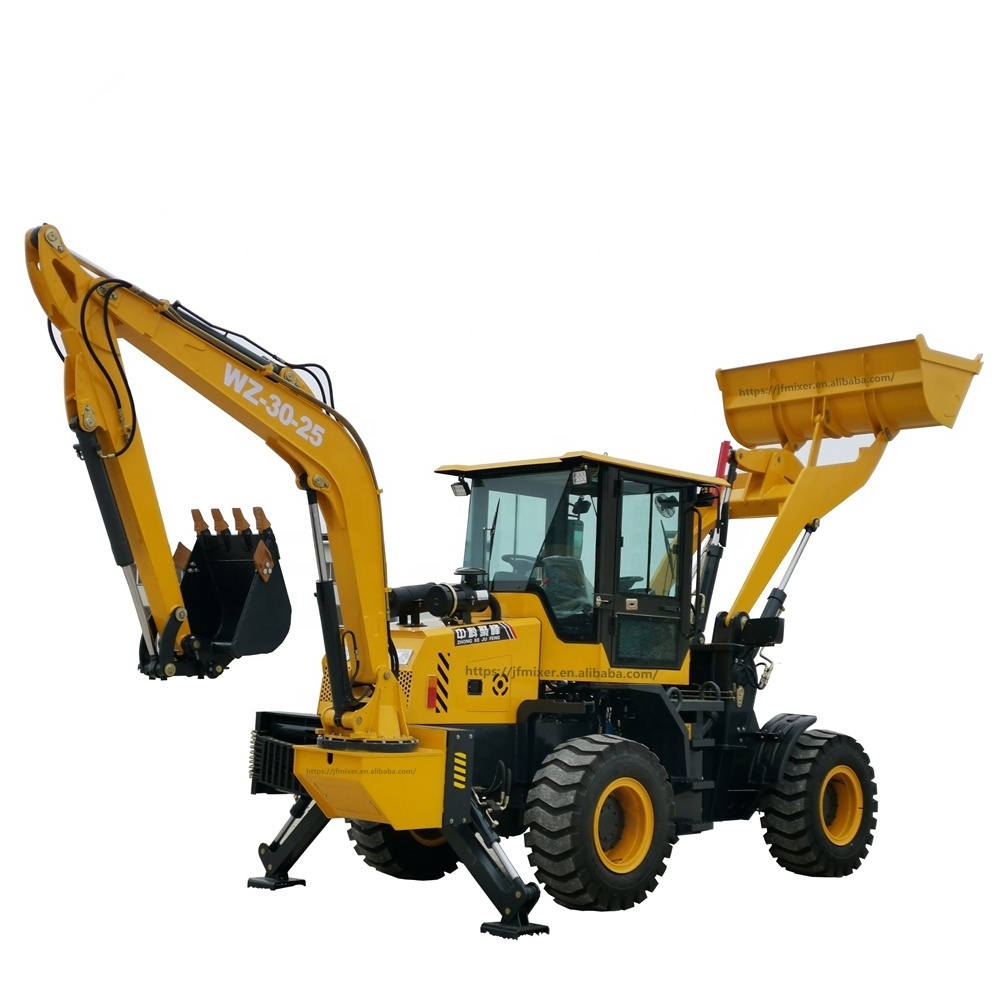

WZ30-25 is driven by
YUNNEI 4102,
76 kW (103 HP)
,
Turbo-charged & Water-cooled Diesel Engine, which features High Reliablity and Low Fuel Comsumption. The CUMMINS Engine is availabe upon request.
2000 mm wide loader bucket, the rated load of bucket is 2500 Kg. The dumping height is 3500 mm and dumping reach is 1000 mm. The excavator bucket is 0.1M3 , max. digging height is 5000 mm, max. digging depth is 3000 mm, and max. digging radius is 4800 mm.
ROPS & FOPS cabin is available on this vehicle which helps to increase the safety of driver greatly.
Leaning-forward front frame which features long dumping distance and high raising weight.
Safety lock outrigger is applied on this vehicle to guarantee the safe operation.
The engine casing adopts thickened punch forming steel plate, which increases the stability of whole vehicle greatly.
Split type torque converter is applied on this vehicle which is not easy to overheat, and it is easy for maintenance.
|
Bucket
|
|
|
|
|||
|
Rated Load
|
2500 Kg
|
|
|
|||
|
Bucket Capacity
|
1.2 M3
|
|
|
|||
|
Bucket Width
|
2000 mm
|
|
|
|||
|
Dumping Height
|
3500 mm
|
|
|
|||
|
Dumping Reach
|
1000 mm
|
|
|
|||
|
Excavator Bucket
|
|
|
|
|||
|
Bucket volume
|
0.1M3
|
|
|
|||
|
Bucket Width
|
550 mm
|
|
|
|||
|
Max. Digging height
|
5000 mm
|
|
|
|||
|
Max. Digging depth
|
3000 mm
|
|
|
|||
|
Max. Digging Radius
|
4800 mm
|
|
|
|||
|
Boom Slewing Angle
|
270°
|
|
|
|||
|
Engine
|
|
|
|
|||
|
Model
|
YUNNEI,
4102 Turbo Charged and Water Cooled
|
|
|
|||
|
Rated power
|
76 KW (103 HP)
|
|
|
|||
|
Emission standard
|
Euro II
|
|
|
|||
|
Chassis
|
|
|
|
|||
|
Structure
|
Articulated chassis
|
|
|
|||
|
Articulation angle
|
35 degrees
|
|
|
|||
|
Transmission gear
|
Automatic, 2F+ 2R shift
|
|
|
|||
|
Driving & steering
|
4-Wheel drive (4x4), hydraulic articulated steering
|
|
|
|||
|
Wheelbase
|
2550 mm
|
|
|
|||
|
Tread
|
1600 mm
|
|
|
|||
|
Axles
|
Medium wheel-side reducer driving axle
|
|
|
|||
|
Torque Converter
|
YJ280 (Split type)
|
|
|
|||
|
Brake
|
Air brake
|
|
|
|||
|
Tyre size
|
Off road steel cord type, 16/70-20
|
|
|
|||
|
Cabin
|
|
|
|
|||
|
Type
|
ROPS & FOPS type
|
|
|
|||
|
Air conditioning system
|
Optional
|
|
|
|||
|
Vehicle
|
|
|
|
|||
|
Min. turning radius
|
5.5 m
|
|
|
|||
|
Min. ground clearance
|
350 mm
|
|
|
|||
|
Operating weight
|
6500 Kg
|
|
|
|||
|
Overall size (L×W×H)
|
7800 x 2100 x 3100 mm
|
|
|
|||
|
Optional accessories:
|
|
|
|
|||
|
YUCHAI Engine (4102, 78 KW), CUMMINS Engine (4BT-C100, 75 KW),YUNNEI Engine (4105, 90 KW)
|
|
|
|
|||
|
Air Conditioner in side cabin
|
|
|
|
|||
Laizhou Jufeng Machinery Co., Ltd.
is the leading manufacturer specializing in construction machinery and equipment in China. Founded in 1992, our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.
The main products we manufacture include Self Loading Concrete Mixer with output capacity ranging from 0.8 CBM to 6.5 CBM, Wheel Loader with payload from 1 Ton to 3 Ton, Backhoe Loader, Site Dumper, Crawler Excavator, Concrete Mixer Pump, Concrete Boom Pump, Block Making Machine and Compaction Machine, etc.
We have constantly improved and updated our products according to customer's feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatching inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer's trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan, Mongolia, Malaysia, Philippines, Middle East, Kenya, Uganda, Algeria and Australia, etc.
In accordance with the development strategy of "Make ZKJF as a Brand with One Hundred Year's History", we endeavor to head towards of our great goal of be first-class enterprise in mainland China and well-known engineering machinery manufacturer in the worldwide as well.
