Quick Details
-

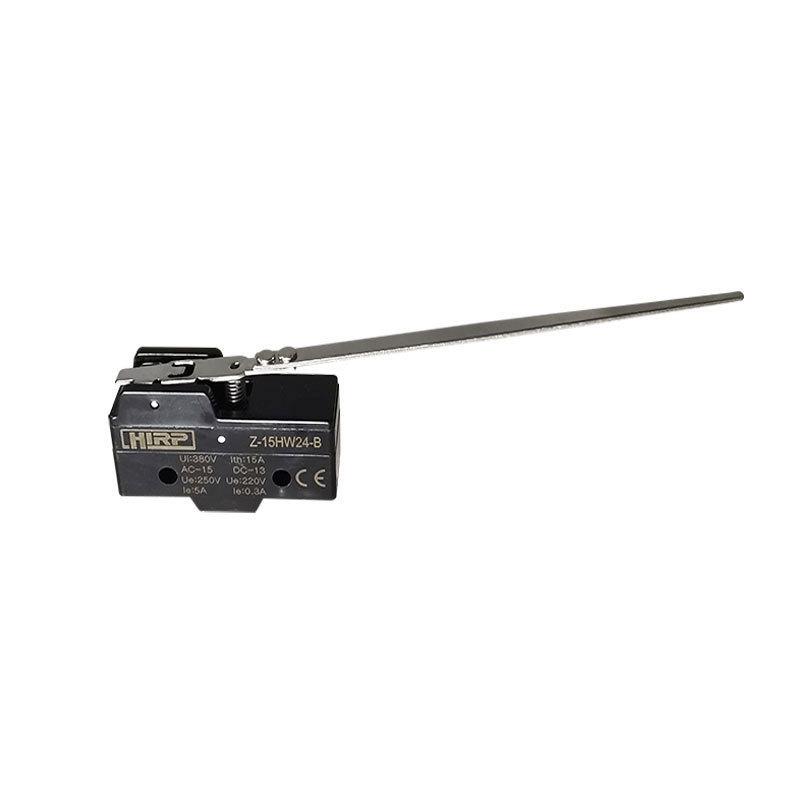

Model Number:
-
Z-15HW24-B
-
Max. Current:
-
15A
-
Operating Temperature:
-
-25℃-+80℃
-
Protection Level:
-
IP40
-
Contact Resistance:
-
15m Max.(initial Value)
-
Insulation Resistance:
-
100m Above(at 500VDC)
-
Dielectric strength:
-
Polarity AC 1000V (50/60Hz)
-
Mechanical Life:
-
1,000,000 operations min
-
Electrical life:
-
100,000 operations min
-
Color:
-
Black
-
WARRANTY:
-
1 YEAR
-
Contact type:
-
SPDT
-
Keyword:
-
Micro Switch
-
Certification:
-
CE,CCC
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HIRP
-
Model Number:
-
Z-15HW24-B
-
Max. Current:
-
15A
-
Operating Temperature:
-
-25℃-+80℃
-
Protection Level:
-
IP40
-
Contact Resistance:
-
15m Max.(initial Value)
-
Insulation Resistance:
-
100m Above(at 500VDC)
-
Dielectric strength:
-
Polarity AC 1000V (50/60Hz)
-
Mechanical Life:
-
1,000,000 operations min
-
Electrical life:
-
100,000 operations min
-
Color:
-
Black
-
WARRANTY:
-
1 YEAR
-
Contact type:
-
SPDT
-
Keyword:
-
Micro Switch
-
Certification:
-
CE,CCC
Products Description
Geneal purpose micro switches are used in AC control circuits of 50 or 60Hz, with a voltage up to 380V and rated control capacity of 100VA or in DC control cirucits with a voltage up to 220V and a rated control capacity of 10W.
