Quick Details
-
Voltage:
-
220V/380V
-
Disc Dia.:
-
1200mm
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Youda
-
Model Number:
-
DA900
-
Warranty:
-
1 year
-
Wall Panels:
-
EPS (rock wool and glass wool as optional)
-
Main Door:
-
3 fold
-
Basement:
-
300MM
-
Generator Setting:
-
Aluminum ally frame
-
Intake:
-
turbo fan or centrifugal fan
-
Extract:
-
turbo fan or centrifugal fan
-
Heating:
-
Italy Riello oil burner
-
Filter System:
-
4 sorts of filters
-
Lighting:
-
Top lights and side lights
-
Color:
-
Orange Red/white/blue
Quick Details
-
Power:
-
18KW
-
External Size:
-
7000x5400x3400mm
-
Internal Size:
-
6900x3900x2650mm
-
Voltage:
-
220V/380V
-
Disc Dia.:
-
1200mm
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Youda
-
Model Number:
-
DA900
-
Warranty:
-
1 year
-
Wall Panels:
-
EPS (rock wool and glass wool as optional)
-
Main Door:
-
3 fold
-
Basement:
-
300MM
-
Generator Setting:
-
Aluminum ally frame
-
Intake:
-
turbo fan or centrifugal fan
-
Extract:
-
turbo fan or centrifugal fan
-
Heating:
-
Italy Riello oil burner
-
Filter System:
-
4 sorts of filters
-
Lighting:
-
Top lights and side lights
-
Color:
-
Orange Red/white/blue
Spray booth/Car paint booth
Features:
Booth Cabin:
Double skinned walls are solid interlock panel construction, pre-coated finish and prevented with plastic film.
Entrance Doors:
Insulated, rubber gasket sealed doors with positive internal lock bar in threshold base and solid header base. Standard tri-fold.
Personnel Door:
Equipped with safety glass observation window, rubber sealed.
All components are recognized, listed or certified by CCC,UL,ETL, CAS or CE .
Note for all types of Paint Booth: Rock wool / glass wool wall panels, extra side lights, extra accelerate blower&nozzle system for water-based paint, gas burner, any other special designs are available on request.
| Inside Dimensions: | 6900(L)X3900(W)X2650(H) mm | |
| Outside Dimensions: | 7000(L)X5400(W)X3400(H) mm | |
| Wall Panels: | Thickness: 50mm, double skined with polystyrene insulation(EPS) inside, tongue and groove interlock construction | |
| Roof Panels: | Galvanized steel sheet; C-shape ceiling filter holders, powder coated. | |
| Doors: | 3-fold main doors, 3000(W)x2600(H) mm. One personnel door, 800(W)x2000(H) mm | |
| Basement and Floor: |
300mm high raised metal- base with 2/4 pcs ramps outside, complete grating floor Optional p it type, 2 rows of grating. |
|
| Generator Setting | Aluminum ally frame | |
| Intake: | One backward inclined turbo fan, capacity:25000cmh,motor:7.5kW, direct drive | Two double-intake centrifugal fans, capacity:24000cmh, motor: 2x4kW, belt drive |
| Extract: | One backward inclined turbo fan, capacity:25000cmh,motor:7.5kW, direct drive | One double-intake centrifugal fan, capacity:20000cmh, motor:7.5kW, belt drive |
| By-Pass: | Pneumatic damper from spraying to baking cycle | |
| Heating System: | Stainless heating exchanger, 60°C - 80°C working temperature. Italy Riello RG5S oil burner, capacity 260000Kcal/h | |
| Filter System: | 4 sorts of filters: Prefilter(pocket style), ceiling filter, floor paint-stop filter, activated carbon filter (pocket style). | |
| Lighting: | 8 units 4×36W inclined ceiling lights, 6 units 4×36 W vertical side lights. Philips tubes. Illumination≥1200Lux. | |
| Control System: | Reliable components, digital temperature readout, spray and bake temperature settings, bake timer,spray and bake switch, pressure gauge, emergency stop. | |

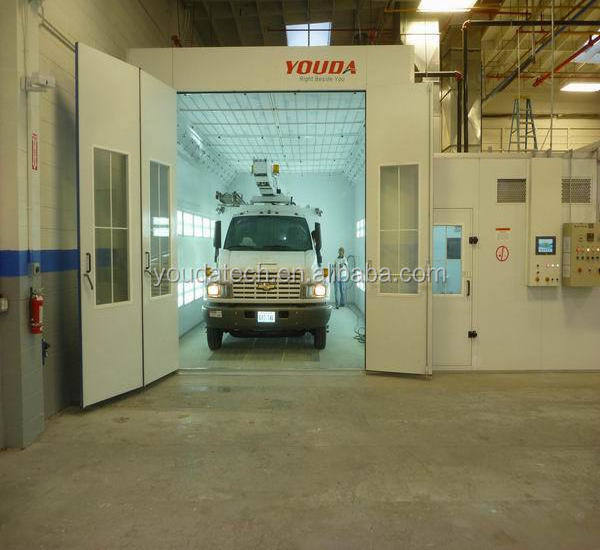

More Photos of spray booth
Prep Station
