Quick Details
-
Model Number:
-
MJ-10125-2S
-
Usage:
-
Level Sensor
-
Output:
-
Switching Transducer
-
Theory:
-
Current Sensor
-
Color:
-
White
-
Material:
-
PP
-
Max Operating Power:
-
50W(Can be adjust to 10W)
-
Max Operating Voltage:
-
220V(Can be adjust to 100V)
-
Max Operating Current:
-
1A(Can be adjust to 0.5A)
-
Max Operating Pressure:
-
0.2MPA
-
Operating Temperature:
-
-30°C~125°C
Quick Details
-
Grade:
-
DIY
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MOJO
-
Model Number:
-
MJ-10125-2S
-
Usage:
-
Level Sensor
-
Output:
-
Switching Transducer
-
Theory:
-
Current Sensor
-
Color:
-
White
-
Material:
-
PP
-
Max Operating Power:
-
50W(Can be adjust to 10W)
-
Max Operating Voltage:
-
220V(Can be adjust to 100V)
-
Max Operating Current:
-
1A(Can be adjust to 0.5A)
-
Max Operating Pressure:
-
0.2MPA
-
Operating Temperature:
-
-30°C~125°C
Product Show
Product description and advantage:
1.Small size and can be customized products for our customers
2.The working principle is EASY
3.Reliable quality
4.Low cost

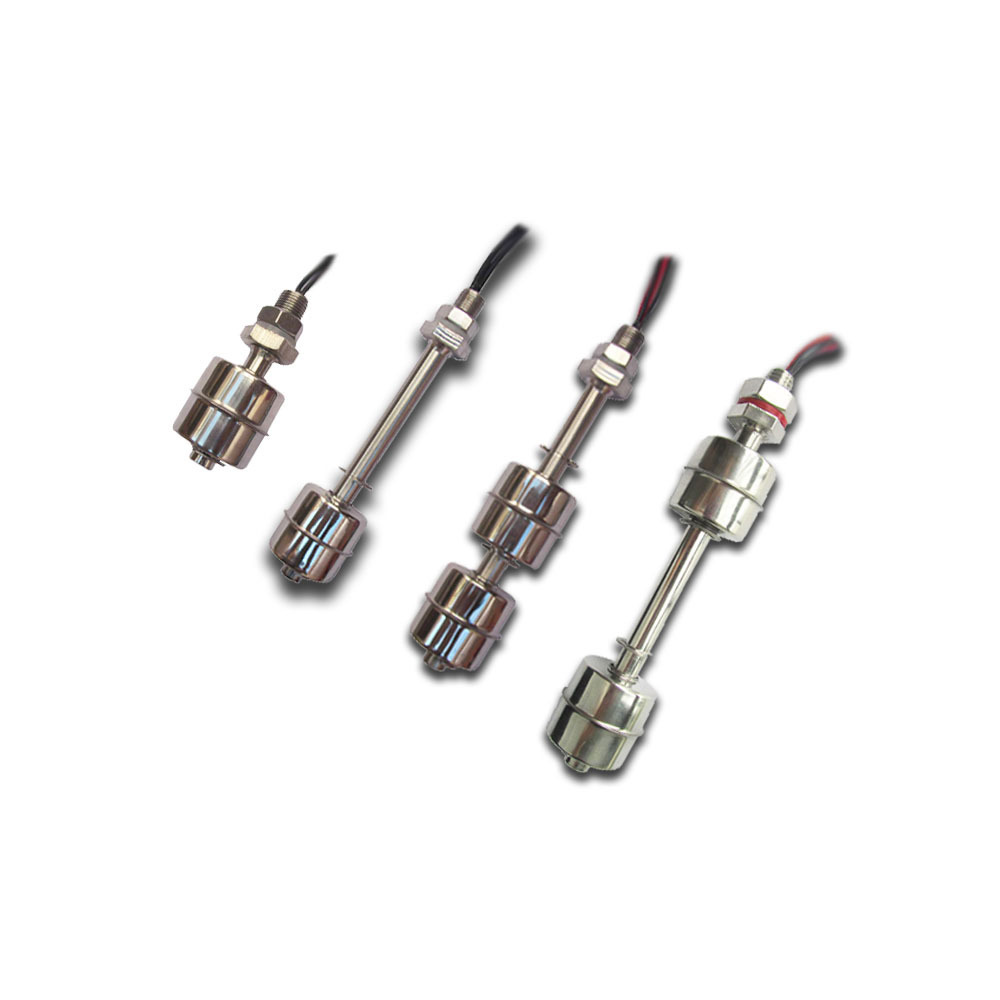

Product Image:
The principle of operation
Liquid level sensors by the composition of reed switches andfloat, reed switch encapsulated in the guide, and a ring mag - net is equipped in the float, w - hen the float moves up and d - own with the measured of liquid level,and the internal magnet to attract magnetic reed switch contact action,so that it can to detect the liquid level position.
Installation instructions
1.Should be mounted away from the inlet, or switch will caused malfunction by the fluctuations in intake.
2.The load must be controlled circuit capacity with float switch contacts to match.
3.The proportion of liquid to be measured must be greater than the proportion of float.
4.Float action points have been ordered by the customer requirements adjusted at the factory, Please do not adjust the float position.
Routine maintenance
Periodically clear the guide rod and float on the dirt (as the media cycle may be). Check for the loose buckle .
|
Date scan |
1A1 |
2A1 |
|
Max Contact Rating |
1 0W |
50W |
|
Max Switching Voltage |
11 0VAC/ 11 0VDC |
220VAC/220VDC |
|
Max Switching Current |
0 .5A |
1.5A |
|
Max Breakdown Voltage |
11 0VDC |
300VAC/350VDC |
|
Max Carry Current |
1 .0A |
3.0A |
|
Max Contact Resistance |
100mΩ |
100mΩ |
|
Temperature range |
-30 ~ + 200 °C |
-30 ~ + 200 °C |
|
Float Ball Materia |
SUS304 |
SUS304 |
|
Float Body Material |
SUS304 |
SUS304 |
NOTE: In s tock is 2 A1,if need 1 A1,may need custom-make.
|
Mounting |
Top or bottom of the vertical installation |
|
Installation dimensions |
M10 |
|
Operating Characteristics |
Floating on or fall on (optional) |
|
Working Medium |
Water, oil, chemical media |
|
Temperature range |
– 3 0~+ 200 °C |
|
Pressure range |
0.2MPa |
