Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
AGM
-
Product name:
-
pu wall cladding exterior wall panels manufacture in Tianjin
-
size:
-
3800*380*16mm
-
Length:
-
≤6m
-
Core material:
-
Hard Polyurethane Foam
-
Thickness:
-
16mm
-
weight:
-
3.7kg/m2
-
Surface material:
-
Alu-Zn Galvanized Sheet
-
Advantage:
-
Easy Installation, fire proofing ,sound insulation
-
Color:
-
customized
Quick Details
-
Project Solution Capability:
-
Others
-
Application:
-
Office Building
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
AGM
-
Product name:
-
pu wall cladding exterior wall panels manufacture in Tianjin
-
size:
-
3800*380*16mm
-
Length:
-
≤6m
-
Core material:
-
Hard Polyurethane Foam
-
Thickness:
-
16mm
-
weight:
-
3.7kg/m2
-
Surface material:
-
Alu-Zn Galvanized Sheet
-
Advantage:
-
Easy Installation, fire proofing ,sound insulation
-
Color:
-
customized
---------------------------------------------------

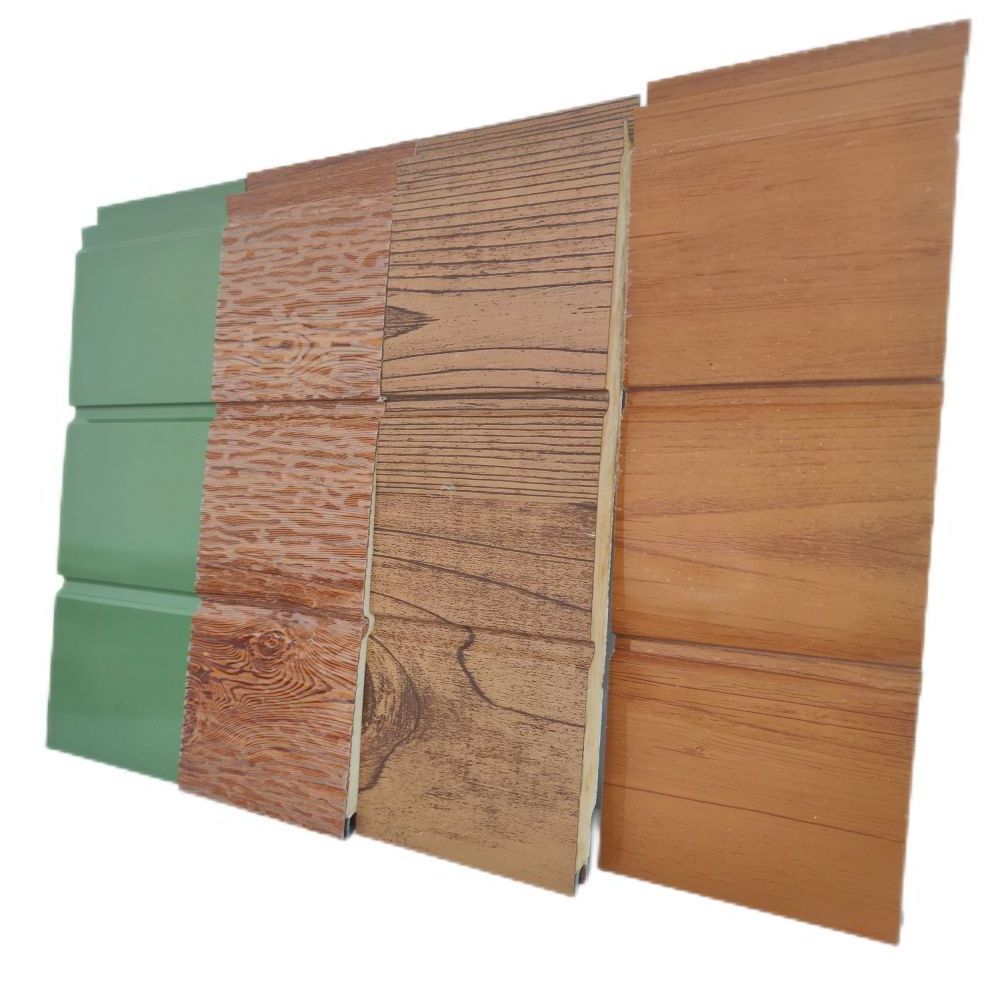

Product Dispaly
---------------------------------------------------
AGM Thermo Siding is composed of three key parts:
1.surface material:Zn-Al Alloy/ Coated Steel Sheet
2.insulating material: Rigid Polyurethane Foam
3.Bottom material:Aluminum-foil Paper
|
No
|
Examination Categories
|
Units
|
Standard
|
Technical Indicator
|
Examination Result
|
|
1
|
Core density
|
Kg/m³
|
GB/T6343-2009
|
N/A
|
42
|
|
2
|
Heat conducting efficiency
|
W/m.K
|
TB/T10297-1998(25℃)
|
N/A
|
0.022
|
|
3
|
Water absorbing capacity
|
(V/V)%
|
GB/T8810-2005
|
N/A
|
1.3
|
|
4
|
Compressive strength
|
MPa
|
GB/T8813-2008
|
N/A
|
0.21
|
|
5
|
Impermeability
|
mm
|
JC/T998-2006
|
N/A
|
1.5
|
|
6
|
Horizontal firing average burning time
|
s
|
GB/T8332-2008
|
N/A
|
20.1
|
|
7
|
Horizontal firing average burning scope
|
mm
|
GB/T8332-2008
|
N/A
|
23
|
|
8
|
Oxygen index
|
%
|
GB/T2406.2-2009
|
N/A
|
26.2
|
|
9
|
Surface density
|
Kg/m³
|
JC/T868-2000
|
N/A
|
3.4
|
|
10
|
Peeling resistance
|
%
|
JC/T868-2000
|
N/A
|
95
|
|
11
|
Cohesional strength
|
Mpa
|
JC/T868-2000
|
N/A
|
0.14
|
|
12
|
Bending resistance
|
Kn/m²
|
JC/T868-20009 (Max bending capacity)
|
N/A
|
1.46
|
|
13
|
Acid tolerance
|
N/A
|
In 5% HCI for 24 hours
|
N/A
|
No color change,no swell,no bubble,no pulverization
|
|
14
|
Alkali tolerance
|
N/A
|
In 5% NaOH for 24 hours
|
N/A
|
No color change,no swell,no bubble,no pulverization
|
---------------------------------------------------
Advantage
---------------------------------------------------
Good Thermal Insulation Performance
Instead of the other exterior materials, AGM Thermo Siding used rigid foamed polyurethane filler with excellent
thermal insulation as the intermediate layer. High thermal insulation not only reduces air-conditioning and heating
expenses, but also cuts back CO2 emissions.
thermal insulation as the intermediate layer. High thermal insulation not only reduces air-conditioning and heating
expenses, but also cuts back CO2 emissions.
The socket connecting method makes the panels form an integrated structure to prevent invading rainfall. This
structure also improves durability of the house by exterior ventilating function.
structure also improves durability of the house by exterior ventilating function.
When an earthquake occurs, the building’s own weight-bearing capacity will decrease. AGM panel is a light-weight wall
materials (3.7kg/SQM), so there is no need to worry
materials (3.7kg/SQM), so there is no need to worry
Advantage:
1. Significant energy-savings performance.
thermal conductivity coefficient is 0.024W/(c.K),
16mm thickness , metal board thickness 0.27-0.33mm,
recovery reaches 99.9%, service life is more than 45 years .
2. Anti-seismic and Anti-cracking lightweight ,good shock resistance, strong integrity after anchoring, makes it possible to eliminate the earthquake damage to buildings.
3. Flame retardant and fire resistant.
4. Waterproof, Damp-proof and Anti-leaking.
5. Sound insulation and Noise reduction The Core material Hard PU foam is independent and consists of a closed bubble structure ,so it has good sound effect and provides you a quiet and comfortable environment even in noisy areas.
6. Easy and quick installation.
7. Strong Decorative effects and Eco-friendly.
2. Anti-seismic and Anti-cracking lightweight ,good shock resistance, strong integrity after anchoring, makes it possible to eliminate the earthquake damage to buildings.
3. Flame retardant and fire resistant.
4. Waterproof, Damp-proof and Anti-leaking.
5. Sound insulation and Noise reduction The Core material Hard PU foam is independent and consists of a closed bubble structure ,so it has good sound effect and provides you a quiet and comfortable environment even in noisy areas.
6. Easy and quick installation.
7. Strong Decorative effects and Eco-friendly.
-------------------------------------------------------------
Colour
-------------------------------------------------------------
--------------------------------------------------------
Installation
--------------------------------------------------------
-------------------------------------------------------
A
ccessories
-------------------------------------------------------
-------------------------------------------------------
Application
-------------------------------------------------------
---------------------------------------------------
Why choose us
---------------------------------------------------
--------------------------------------------------- Why choose us ---------------------------------------------------
-----------------------------------------------
Production process
-----------------------------------------------
-----------------------------------------------------
Factory Show
-----------------------------------------------------
----------------------------------------------------- Factory Show -----------------------------------------------------
AGM (Tianjin) New Building Material Co., Ltd.
is a professional manufacturer of ECO-Friendly new building materials, with registered capital of 1.5 million USD.
In the end of 2018, we established strategic cooperation with AGM KOREA company, and set up our own R&D center in Korea. AGM KOREA is one of the leading companies in roofing waterproof and exterior insulation industry (ECO-Friendly new building materials) in South Korea and dominates over 30% of this market.
We have tens of embossed roller types and more than one hundred exterior designs and
colors available. Furthermore, to satisfy the future market demands, the company plans to develop 2-3 new
roller designs every year, expanding the range of product choices. Finally, we attempt to extend our market to
global, beyond Korea and China
colors available. Furthermore, to satisfy the future market demands, the company plans to develop 2-3 new
roller designs every year, expanding the range of product choices. Finally, we attempt to extend our market to
global, beyond Korea and China
_______________________________________________________________________
Very welcome to know your requirement, fast and best plan will be provided to you,We are confident that we can expand your product
supplying scope.
---------------------------------------------------------
Exhibition
---------------------------------------------------------
------------------------------------------------
Packing&Shipping
------------------------------------------------
Five layer standard export carton to make sure the panel will not be damaged.
-------------------------------------------------------------- F A Q --------------------------------------------------------------
1.Q: Are you a factory or trading company?
A: We are a factory.
2.Q: Can we get samples?
A:Yes, you could choose from our E-catalog .
3.Q: How long can we expect to get samples?
A: Samples will be sent out within 3-5days.
4.Q: Can we order products of different colors?
A: Sure.We supply OEM &ODM service .
5.Q: What is the delivery time?
A: 5-15days , Customized products 15-30 days.
6.Q: What is the terms of payment?
A:100%TT or 50%payment once confirm order ,50%payment before delivery
A: We are a factory.
2.Q: Can we get samples?
A:Yes, you could choose from our E-catalog .
3.Q: How long can we expect to get samples?
A: Samples will be sent out within 3-5days.
4.Q: Can we order products of different colors?
A: Sure.We supply OEM &ODM service .
5.Q: What is the delivery time?
A: 5-15days , Customized products 15-30 days.
6.Q: What is the terms of payment?
A:100%TT or 50%payment once confirm order ,50%payment before delivery
