Quick Details
-
Product name:
-
Encoder
-
Encode:
-
H.264\H.265
-
Code rate:
-
CBR, VBR control code rate 64KB~8M
-
Frame rate:
-
25/30 frame rate
-
Transfer Protocol:
-
Onvi f protocol, support rtsp, rtmp live streaming protocol
-
Sampling Rate:
-
Adaptive, output sampling rate optional
-
Color depth:
-
32 bit
-
Network port:
-
RJ45/1000M
-
Power:
-
12V/1A
-
Power consumption:
-
5W
Quick Details
-
Place of Origin:
-
shenzhen
-
Brand Name:
-
Micagent
-
Model Number:
-
MA1000-05
-
Product name:
-
Encoder
-
Encode:
-
H.264\H.265
-
Code rate:
-
CBR, VBR control code rate 64KB~8M
-
Frame rate:
-
25/30 frame rate
-
Transfer Protocol:
-
Onvi f protocol, support rtsp, rtmp live streaming protocol
-
Sampling Rate:
-
Adaptive, output sampling rate optional
-
Color depth:
-
32 bit
-
Network port:
-
RJ45/1000M
-
Power:
-
12V/1A
-
Power consumption:
-
5W
MA-V0005 codec is a codec product independently developed by Shenzhen Micagent Technology Co.Mcloud codec supports 1080P@60Hz video capture, encoding, decoding and video output; supports HDMI or VGA HD video input, and HDMI HD video output. It adopts B/S architecture to manage the device and supports two streams, main stream and sub stream; supports onvif, RTSP, RTMP live push stream and other protocols, and many other functions. Mcloud series is widely used in security computer on the wall, video conferencing system, webcasting system and monitoring computer on the wall field.
|
Video Input |
Video Input |
1 channel HDMI/VGA |
|
Input Resolution |
1080P@60HZ\1080i\720P@60HZ 1440X900@60HZ; 1366X768@60HZ. 1280X768@60HZ; |
|
|
Audio Input |
Built-in |
HDMI built-in audio input |
|
Code |
Code |
H.264\H.265 |
|
Code Rate |
CBR,VBR control code rate 64KB~8M |
|
|
Video frame rate |
25 frame rate \ 30 frame rate |
|
|
Transfer Protocol |
Transfer Protocol |
onvif protocol, support rtsp, rtmp live streaming protocol |
|
Sampling rate |
Sampling rate |
Adaptive, output sampling rate selectable |
|
Color depth |
Color depth |
32 bit/pixel |
|
Network port |
Network port |
RJ45/1000M |
|
Upgrade |
Upgrade |
Software upgrades available via the web |
|
General parameters |
Nominal Level |
0.7VP-P |
|
impedance |
50Ω-75Ω |
|
|
Interface |
VGA (15-pin D-sub(DB15/DE-15F)/female) HDMI (Type A) |
|
|
Temperature range |
0~45℃(working), -20~80℃(storage) |
|
|
Power supply |
12V/1A |
|
|
Power consumption |
5W |
|
|
Package Size |
ISTA 1A carton |
|
|
Weight |
0.3KG |
Technical parameters
• H.264, H.265 video compression coding.
• Support for HDMI or VGA video interface capture.
• Support for onvif protocol, rtsp, rtmp push streaming protocol.
• Support for decoding and storage of Hikvision NVR ( control marker points ).
• Support for web browser configuration and access to videos.
• Support for local decoding preview in computer browsers.
• Support for importing images, logos, advertising images for OSD overlay coding.
• The network interface adopts 1000M full duplex mode.
• Support up to 720P60HZ , 1080P60HZ, 1080i telecom set-top box and other high-definition HDMI video input.
• Encoder with freely adjustable encoding frame rate 25-30 frame rate and code stream 1-12M.
• Support image parameter OSD setting.
• Support dual stream output.
• Support stream resolution setting.
• Support one click to restore the default configuration.
• Low power supply design.

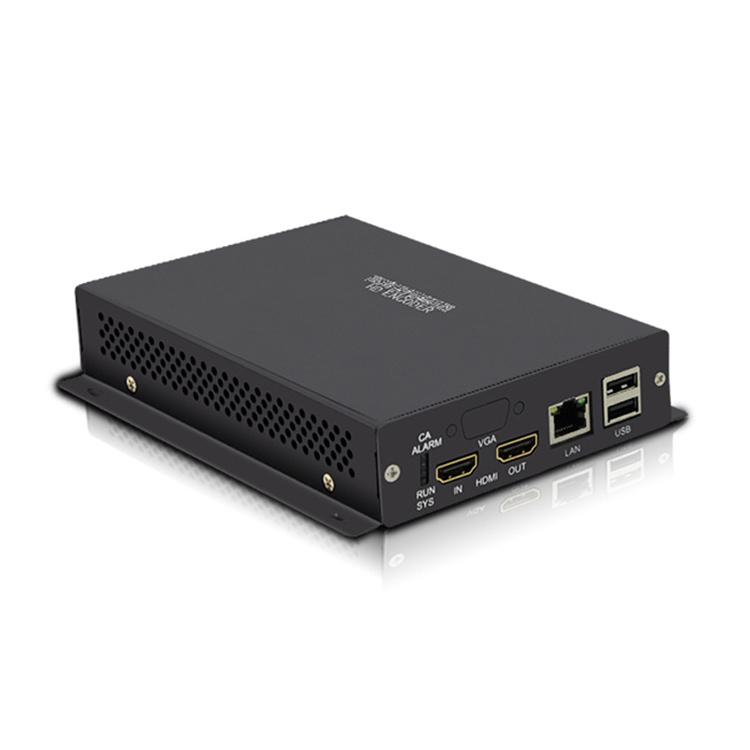

Product Show
