Quick Details
-
Rated Voltage:
-
5-25KV
-
Tensile Strength:
-
300-1500LBS
-
Product Name:
-
SM Series Bus Bar Insulator
-
Color:
-
Red
-
Insulator Material:
-
BMC (Bough Moulding Compound); SMC(Sheet Moulding Compound)
-
Matel Part:
-
Brass
-
Usage:
-
Electrice Power Insulation Protection
-
Screw size:
-
5-10mm
-
OEM Production:
-
Available
-
Sample:
-
Available. Welcome to contact us!
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LITEAM
-
Model Number:
-
SM -30
-
Rated Voltage:
-
5-25KV
-
Tensile Strength:
-
300-1500LBS
-
Product Name:
-
SM Series Bus Bar Insulator
-
Color:
-
Red
-
Insulator Material:
-
BMC (Bough Moulding Compound); SMC(Sheet Moulding Compound)
-
Matel Part:
-
Brass
-
Usage:
-
Electrice Power Insulation Protection
-
Screw size:
-
5-10mm
-
OEM Production:
-
Available
-
Sample:
-
Available. Welcome to contact us!
LITEAM - Product Description
|
Product Name：SM Series Insulator
|

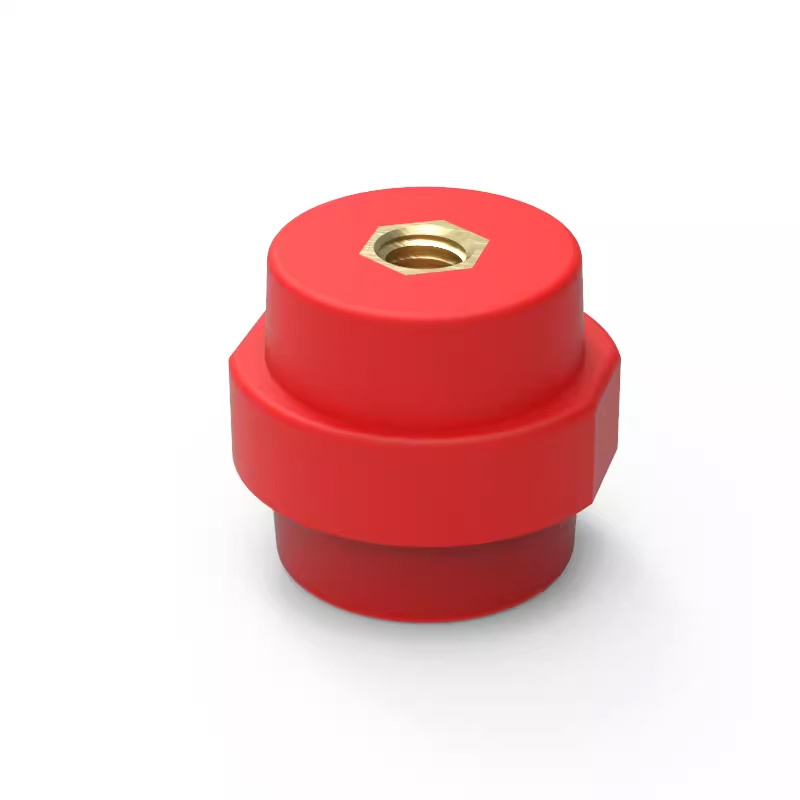

SM Series Busbar Insulator
|
|
|
[SM Series Insulators] Model Nos.
|
SM-30, SM-25, SM-30, SM-35, SM-40, SM-51, SM-60, SM-76; SM-7105, SM-7110, SM-7120, SM-7160
|
|
|
Brand
|
LITEAM
|
|
|
Material
|
Glassfibre(DMC/BMC, SMC)
|
|
|
Insert
|
Copper
|
|
|
Color
|
Red for stock, customised according to your needs.
|
|
|
Operating Temperature
|
-40 ~ +140
|
|
|
Model: SM-25
|
|
|
||
|
Insert Parts
|
Strength
|
Electrical Properties
|
||
|
Nut Specification:
M6/M8
|
Axial tension:
2000N
|
Working voltage: 600V
|
||
|
Screw hole depth:
8
mm
|
Bending resistance:
3000N
|
Pulse voltage: 3000V
|
||
|
Nut material: Copper
|
Tightening torque:
10N/m
|
Withstand voltage:
6kv
|
||
|
/
|
/
|
Leakage current at 2000V Working Voltage: 1mA
|
||
|
/
|
Insulation Property
|
/
|
||
|
/
|
Insulation resistance:
500mΩ
|
/
|
||
SM series insulators
SM
stands for the series name, the number behind represents
the height of the product. Usually, the default colour of the product is red.
For other custom made colours, please contact customer service for help.
Related Top Picks
Apply Scenario
SM series insulators
are made of DMC/SMC/
BMC
resin and are often used in low-voltage environment (600V-25000V) , such as distribution cabinet, Switch Cabinet, inverter and new energy power supply.
