- Product Details
- {{item.text}}
Quick Details
Quick Details
-
Place of Origin:
-
Zhejiang, China
|
Specification
|
7KW 11KW 22KW
|
|
Input
|
3-phase 400V 50Hz
|
|
Standby consumption
|
< 3W
|
|
Charging plug
|
IEC62196-2 type 2
|
|
Output
|
Max. 22kW 3-phase 400V
|
|
Charging current
|
8A / 10A / 13A / 16A /32A
|
|
Residual current detection
|
RCD type B all-current sensitive
|
|
Contact resistance
|
≤0.3mΩ (L/N)
|
|
Insulation resistance
|
500MΩ (1.000V AC)
|
|
Contact temperature rise
|
≤50K
|
|
Charging mode
|
IEC 62196-2, IEC 61851-1
|
|
Operating humidity
|
5%...95% non condensing
|
|
Flammability class
|
UL94 V-0
|
|
Pull-off force
|
45N…80N
|
|
Plugging cycles
|
≥10.000x (Load-free)
|
|
Cooling method
|
Convection
|
|
Housing
|
ABS + PC housing material
|
|

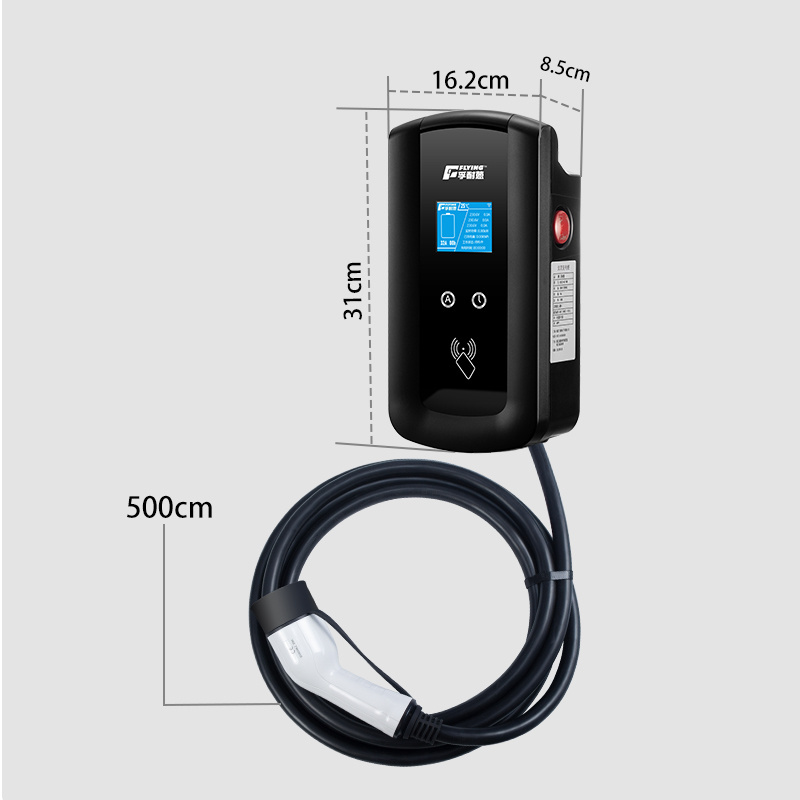

Dimensions
|
310x160x80mm
|
|
Installation
|
Wall mounting
|
|
Protection type
|
IP55
|
|
Operating temperature
|
-30°C...+55°C
|
|
Charging cable
|
5m length, 5*6mm2+12+0.75mm2
|
|
Weight
|
6000g
|
|
Protective functions
|
Overvoltage, undervoltage, overcharging and overheating protection, fault current detection, PE detection
|
1. Who are we?
We are headquartered in Zhejiang, China, founded in 2012, and sell our products to Eastern Europe (50.00%) and North America (50.00%). We have 51-100 employees.
2. How do we guarantee the quality?
Pre-production samples are made before mass production;
Final inspection must be done before shipment;
3. What can you buy from us?
AC charging post, portable charging gun
4. Why should I buy from us instead of other suppliers?
Feiyang New Energy Co., Ltd. has been established for 12 years and is mainly engaged in the technical research and development, production and sales of charging piles.
5. What services can we provide?
Accepted delivery terms: None
Accepted payment currency: USD;
Accepted payment type: null;
