Quick Details
-
Voltage:
-
380v/220/customized
-
Dimension(L*W*H):
-
2100*1050*850
-
Weight:
-
460kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Online support, Field installation, commissioning and training
-
item:
-
Mini lab shaking table
-
Bearing capacity:
-
0.4-0.8t
-
Output of generator:
-
1.1kw
-
Output of engine:
-
30HP
-
Output of crusher:
-
<2.5mm=80%
-
Crushing density of crusher:
-
30%-45%
-
Feeding density of sluice box:
-
18%-25%
-
Feeding density of shaking table:
-
20%-25%
-
Clean-up cycle of sluice box:
-
2h-4h
-
Certification:
-
ISO2008.CE
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
China
-
Brand Name:
-
hengcheng
-
Voltage:
-
380v/220/customized
-
Dimension(L*W*H):
-
2100*1050*850
-
Weight:
-
460kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Online support, Field installation, commissioning and training
-
item:
-
Mini lab shaking table
-
Bearing capacity:
-
0.4-0.8t
-
Output of generator:
-
1.1kw
-
Output of engine:
-
30HP
-
Output of crusher:
-
<2.5mm=80%
-
Crushing density of crusher:
-
30%-45%
-
Feeding density of sluice box:
-
18%-25%
-
Feeding density of shaking table:
-
20%-25%
-
Clean-up cycle of sluice box:
-
2h-4h
-
Certification:
-
ISO2008.CE

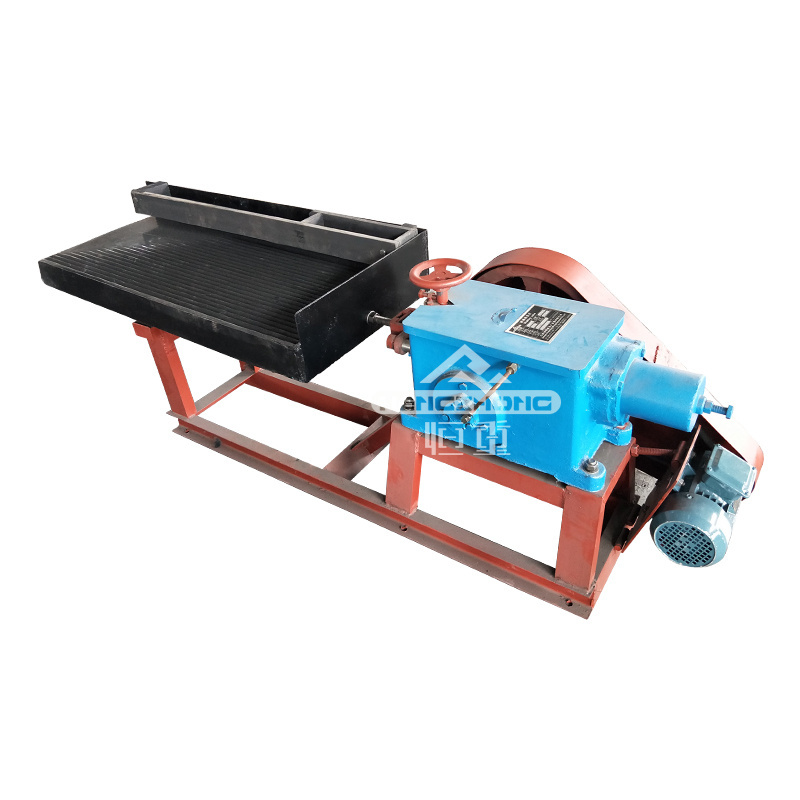

High recovery mobile gold processing plant Mini lab shaking table
G ENERAL DESCRIPTION
Nowadays conditions of the majority of rock gold mining become worse, large scale mining machine is limited by the condition. Small gold machine is an excellent solution for small scale miners, because it’s flexible, convenient, movable, low cost and high recovery, it applies to small scale mining of rock gold or placer gold.
Lab shaking table specification :
| Model | LY -4.08m² | LY-1.95m² | LY-0.5m² | |
| Deck Size(mm) | 3000*1320*110 | 2100*1050*850 | 1100*500*430 | |
| Feeding Size (mm) | Ore sand | -2 | -2 | -2 |
| Slurry | -0.1 | -0.074 | -0.074 | |
| Feeding Density (%) | 10-30 | 10-30 | 10-30 | |
| Capacity (t/h) | Ore Sand | 0.7-1.5 | 0.4-0.8 | 0.1-0.2 |
| Slurry | 0.4-1 | 0.3-0.5 | 0.05-0.1 | |
| Water Added (t/h) | 0.3-1.5 | 0.2-1 | 0.1-0.5 | |
| Motor power (kw) | 1.1 | 1.1 | 1.1 | |
| Dimension (mm) | 4075*1320*795 | 3050*1050*1035 | 1540*500*815 | |
| Weight (kg) | 665 | 460 | 158 | |
MACHINE COMPONENTS
1. water pump 2. generating unit 3. electrical control cabinet
4. diesel engine 5. shaking table 6. rock hammer crusher
7. general power switch 8. Battery cell storage box 9. sluice box
10. ground wire
1) crush system
The rock hammer crusher driven by 30HP diesel engine, it can break rock which is not bigger than 50mm to minus 2.8mm, in that case useful mineral can be completely liberated from the rock, then flow to gold sluice box which as rougher for separation.
2) rough separation system
The rougher is a gold sluice box, it’s 2500mm length, 600mm width, it covered by professional gold recovery carpet.
3) clean system
The concentrate get from gold sluice box still has impurities, it should have a re-separation of enrichment for the gold. Shaking table is an excellent cleaner which can separate gold perfectly with very low cost. The power is 1.1KW only.
4) water system
The plant adopts an unified water supply system, it can supply 8-10 tons per hour, because of low quality of water allowed for gold separation, so the water can be recycled when it is in shortage. The power of water pump is 1.5KW only.
5) gold purify device
Amalgamator/melting furnace can be added on the mobile plant according to customer’s need.
6) mobile device
whole plant move by wheel, and fix on the ground by mechanical leveling supports when it working.
