Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DACPOWER
-
Model Number:
-
DAC-P30
-
Speed:
-
1500/1800rpm
-
Product Name:
-
30kw Diesel Generator
-
Alternator:
-
Leroy Somer or stamford
-
Engine:
-
Pekin/cumins /FAWADE/RICARDOor others
-
Controller:
-
Deepsea/Smartgen/etc
-
Options:
-
ATS/Container/Trailer/oilheater /engine heater
-
Control panel:
-
LCD Digital Display
-
Cooling system:
-
Water-cooling System
-
Color:
-
red,white,black,blue,yellow, optional
-
Certificate:
-
CE/ISO9001
-
Warranty:
-
12 months or 1000 hours whichever comes first
Quick Details
-
Rated Voltage:
-
400/230V,220/380v
-
Rated Current:
-
25A to 900A
-
Frequency:
-
50/60HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DACPOWER
-
Model Number:
-
DAC-P30
-
Speed:
-
1500/1800rpm
-
Product Name:
-
30kw Diesel Generator
-
Alternator:
-
Leroy Somer or stamford
-
Engine:
-
Pekin/cumins /FAWADE/RICARDOor others
-
Controller:
-
Deepsea/Smartgen/etc
-
Options:
-
ATS/Container/Trailer/oilheater /engine heater
-
Control panel:
-
LCD Digital Display
-
Cooling system:
-
Water-cooling System
-
Color:
-
red,white,black,blue,yellow, optional
-
Certificate:
-
CE/ISO9001
-
Warranty:
-
12 months or 1000 hours whichever comes first

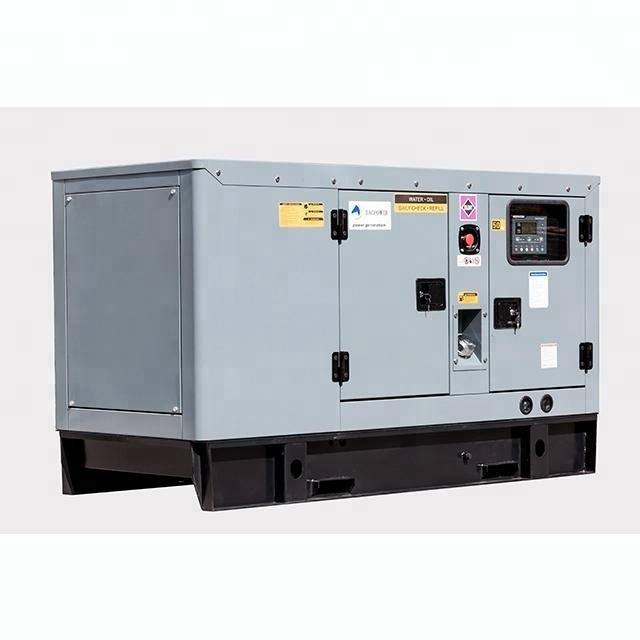

12kw/15kVA Pekin Power Electric Diesel Generator Set/Generating Set/Genset
Product Description
Pekin Diesel Generating Set, power ranging from 10kVa up to 2500kVa.Perkins is the world top engine brand, for more than 80 years, UK Pekin has been the world's leading supplier of diesel and gas engines in the 4 - 2,000 kW (5 -2,800 hp) market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.
Perkins global product support is provided by 4,000 distribution, parts and service centers. Pekin distributor network provides support wherever needed around the world and an extremely high standard is set to ensure the distribution network provides an outstanding service to all customers.
| Engine | Cummins | 4B3.9-G1 | ||
| Units | Prime | Standby | ||
| General Performance | Frequency | Hz | 50 | |
| Engine Speed | r/min | 1500 | ||
| Cylinders / Type | 4-cycle | |||
| Aspiration | Naturally Aspirated | |||
| Governor Type | mechanical | |||
| Bore / Stroke | mm | 102/120 | ||
| Displacement | Litres | 3.9 | ||
| Compression Ratio | 17.3:1 | |||
| Engine Power (Net) | kWm | 24 | 27 | |
| Combustion Air Flow | m³/min | |||
| Fuel System | Fuel Consumption at 110% Prime Power | Litres/hour | 8.0 | |
| Fuel Consumption at 100% Prime Power | Litres/hour | 7.1 | ||
| Fuel Consumption at 75% Prime Power | Litres/hour | 5.7 | ||
| Fuel Consumption at 50% Prime Power | Litres/hour | 4.3 | ||
| Standard Fuel Tank Capacity | Litres | 180 | ||
| Air System | Maximum Air Intake Restriction | |||
| - Clean Filter | kPa | 4 | ||
| - Dirty Filter | kPa | 6 | ||
| Air Filter Type | Dry paper element | |||
| Exhaust System | Exhaust Gas Flow | L/s | 68 | 71 |
| Exhaust Gas Temperature | °C | 380 | 410 | |
| Maximum Back Pressure | kPa | 10 | ||
| Exhaust Outlet Size | mm | N/A | ||
| Oil System | Total Oil System Capacity | Litres | 9.5 | |
| Sump Capacity Only | Litres | 10.9 | ||
| Oil Temperature (In Sump) Maximum | °C | 121 | ||
| Oil Temperature (In Sump) Normal | °C | 115 | ||
| Cooling System | Total System Capacity | Litres | 7.2 | |
| - Engine Only | Litres | 7.2 | ||
| Thermostat Operation Range | °C | 82-95 | ||
| Maximum Top Tank Temperature | °C | 100 | 104 | |
| Electric System | Electrical System Voltage | V | 12 | |
| Battery | Maintenance-free | |||
| Connecting Cables | Available | |||
| Alternator | 50Hz/1500R.P.M | |||
| Units | ||||
| General Data | Manufacture / Brand | Stamford | ||
| Model | PI144F | |||
| Output...........Continuous duty/40℃ | KVA/KW | 27.5/22 | ||
| ............Standby /27℃ | KVA/KW | 30.3/24.2 | ||
| Coupling / No. of Bearings | Direct / Single Bearing | |||
| Phase / Poles | 3-Phase / 4-Pole | |||
| Power Factor | Cos Φ = 0.8 | |||
| AVR Regulation | Yes | |||
| Voltage Regulation | ± 0,5 % | |||
| Insulation Class | H | |||
| Drip Proof | IP23 | |||
| Excitation | Brushless self-excitation | |||
| Altitude | m | ≤1000 | ||
| Overspeed | min -1 | 2250 | ||
