Quick Details
-
Rated Lifting Moment:
-
9M
-
Max. Lifting Height:
-
16M
-
Span:
-
0
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
EW
-
Warranty:
-
12 months
-
Showroom Location:
-
None
-
Product Name:
-
spider crane with forklift
-
Hook up Speed:
-
2.5m/min(4)
-
Boom Form:
-
5(5 Automatic)
-
Hydraulic oil tank capacity:
-
80L
-
Climbing Capacity:
-
20°
-
colour:
-
as your requirement
-
Crawler Belt:
-
Synthetic rubber
-
Ground pressure:
-
51kpa
-
Walking Way:
-
Hydraulic and electric
-
certification:
-
ISO RMRS CE
Quick Details
-
Weight (KG):
-
2500
-
Application:
-
build the house
-
Rated Loading Capacity:
-
3ton
-
Rated Lifting Moment:
-
9M
-
Max. Lifting Height:
-
16M
-
Span:
-
0
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
EW
-
Warranty:
-
12 months
-
Showroom Location:
-
None
-
Product Name:
-
spider crane with forklift
-
Hook up Speed:
-
2.5m/min(4)
-
Boom Form:
-
5(5 Automatic)
-
Hydraulic oil tank capacity:
-
80L
-
Climbing Capacity:
-
20°
-
colour:
-
as your requirement
-
Crawler Belt:
-
Synthetic rubber
-
Ground pressure:
-
51kpa
-
Walking Way:
-
Hydraulic and electric
-
certification:
-
ISO RMRS CE
Product Description

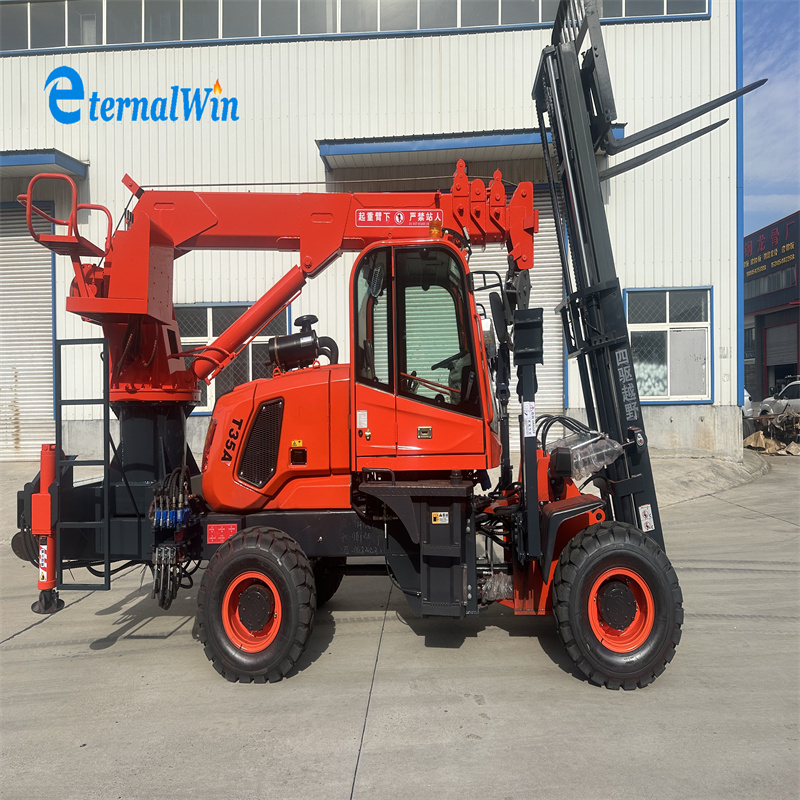

Forklift crane
On the basis of maintaining the mechanical properties of forklift trucks, modified a full back to the rotating arm, a small lifting machine, which is to preserve the loading and unloading of forklift trucks, but also make up for the forklift trucks can not be loaded and unloaded heavy work. Forklift tail crane using the original hydraulic system, easy to operate, safe and reliable, flexible, with high efficiency, multi-purpose performance and so on. Both the original forklift function, but also lifting function, so especially suitable for workshop maintenance, yard and place of narrow stacking of goods, can also be used as a general lifting and loading and unloading. Generally, it is suitable for the work area with narrow space, and it can go in and out freely. It can also be equipped with wireless remote control to realise the operation without dead angle.
Specification
|
3.5ton Forklift (4WD)
|
|
|
|
|
|
|
Rated capacity
|
3.5ton
|
|
|
|
|
|
Engine brand
|
Yunnei 490
|
|
|
|
|
|
Cab
|
Fully enclosed cab
|
|
|
|
|
|
Axle
|
Small wheel edge cast steel reduction axle
|
|
|
|
|
|
Transmission
|
265 double high and low speed
|
|
|
|
|
|
Tires
|
20.5/70-16 dragon pattern
|
|
|
|
|
|
Standard lifting height
|
3 meters
|
|
|
|
|
|
Stage width
|
16cm
|
|
|
|
|
|
Dimensions
|
4200*1800*2600mm
|
|
|
|
|
|
Fork width
|
12cm
|
|
|
|
|
|
Fork length
|
1.2 m
|
|
|
|
|
|
Crane
|
5ton
|
|
|
|
|
|
Chassis model
|
reinforced round chassis
|
|
|
|
|
|
Maximum lifting height
|
5ton
|
|
|
|
|
|
Boom type
|
Full extension 12m (3 m and 4 sections)
|
|
|
|
|
|
Winch
|
5 tons
|
|
|
|
|
|
Hydraulic legs
|
5 (2 on both sides, 1 on the back)
|
|
|
|
|
|
5ton Forklift (4WD)
|
|
|
|
Rated capacity
|
5ton
|
|
|
Engine brand
|
Yunnei 4102
|
|
|
Cab
|
Fully enclosed cab
|
|
|
Axle
|
large and medium wheel edge cast steel reduction axle
|
|
|
Transmission
|
265 double high and low speed
|
|
|
Tires
|
16/70-24 dragon pattern
|
|
|
Standard lifting height
|
4 meters
|
|
|
Stage width
|
18cm
|
|
|
Dimensions
|
4500*2000*2950
|
|
|
Fork width
|
12cm
|
|
|
Fork length
|
1.52 m
|
|
|
Crane
|
5ton
|
|
|
Chassis model
|
reinforced round chassis
|
|
|
Maximum lifting height
|
5ton
|
|
|
Boom Length
|
Full extension 16m (4 m and 4 sections)
|
|
|
Winch
|
5 tons
|
|
|
Hydraulic legs
|
5 (2 on both sides, 1 on the back)
|
|
|
8ton Forklift (4WD)
|
|
|
|
|
|
|
Rated capacity
|
8ton
|
|
|
|
|
|
Engine brand
|
Yuchai 4105 supercharged engine(Emission standard 2）
|
|
|
|
|
|
Gearbox
|
280 Double high and low speed hydraulic torque converter
|
|
|
|
|
|
Axle
|
Heavy wheel edge cast steel axle
|
|
|
|
|
|
Driven mode
|
4WD 4 Wheels
|
|
|
|
|
|
Tires
|
12R22.5 Vacuum wire tyre,Larger double row tires
|
|
|
|
|
|
Minimum turning radius
|
3500mm
|
|
|
|
|
|
Standard lifting height
|
4 meters
|
|
|
|
|
|
Stage width
|
22cm
|
|
|
|
|
|
Dimensions
|
4500*2200*2800mm(Mast and cab are detachable)
|
|
|
|
|
|
Fork width
|
12cm
|
|
|
|
|
|
Fork length
|
1.52 m
|
|
|
|
|
|
Crane
|
8ton
|
|
|
|
|
|
Chassis model
|
Enlarged reinforced round base
|
|
|
|
|
|
Rated lifting weight
|
8ton
|
|
|
|
|
|
Boom type
|
16m (5 sections, 4m each , and U type boom)
|
|
|
|
|
|
Winch
|
8ton
|
|
|
|
|
|
Hydraulic legs
|
5
|
|
|
|
|
Packing & Delivery
Product Overview
FAQ
Q: What is the capacity you need?
A: 3.5T, 5T and 8T
Q: What is the requirement for engine commission?
A: National 2, National 3 for your option
