Quick Details
-
Warranty:
-
1Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Guangling
-
Model Number:
-
GF-50W
-
Speed:
-
1500RPM/1800RPM, 1500RPM
-
Product Name:
-
Product Name
-
Certificate:
-
CE/ISO9001
-
ATS:
-
AISIKAI/SUYANG OPTIONAL
-
Controller:
-
OPTIONAL
-
Fuel tank capacity:
-
8 Hours Continue Running
-
keywords:
-
50kva genset
-
Type:
-
Silent(super Silent)or Open
-
Color:
-
Customers' Requirement
-
Options:
-
Automatic Transfer Switch/customer logo
-
Certification:
-
CE,ISO
Quick Details
-
Rated Voltage:
-
110/220/380V
-
Rated Current:
-
90A
-
Frequency:
-
50HZ/60HZ
-
Warranty:
-
1Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Guangling
-
Model Number:
-
GF-50W
-
Speed:
-
1500RPM/1800RPM, 1500RPM
-
Product Name:
-
Product Name
-
Certificate:
-
CE/ISO9001
-
ATS:
-
AISIKAI/SUYANG OPTIONAL
-
Controller:
-
OPTIONAL
-
Fuel tank capacity:
-
8 Hours Continue Running
-
keywords:
-
50kva genset
-
Type:
-
Silent(super Silent)or Open
-
Color:
-
Customers' Requirement
-
Options:
-
Automatic Transfer Switch/customer logo
-
Certification:
-
CE,ISO
Product Description

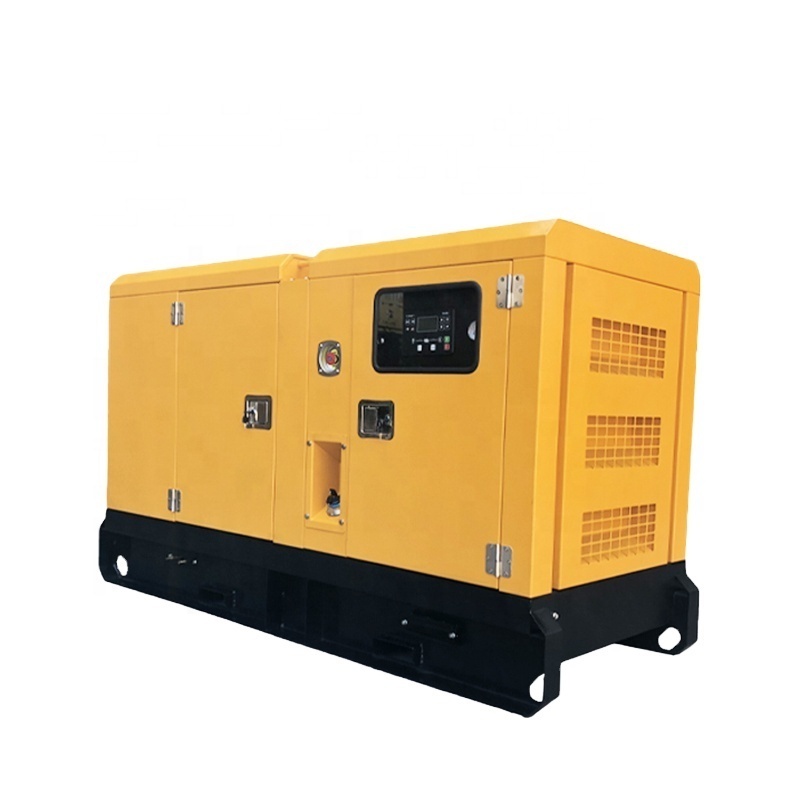

fast ship 40000 watt/40 kw/40kw/50kva 3 phase water cooled silent engine low fuel heavy duty ac diesel motor generator set
GL diesel generators are strong-built, ideal for emergency back-up,job sites and industrial appplications.
Powered by reliable air/water cooled diesel generators sets, industrial grade, great fuel efficiency, less maintenance, long operating life.
Low oil shut-down provides added safety against engine damage.
8-10hours long run fuel tanktank with fuel gauge.
stainless steel parts with door lock and hinge fuel tank lock.
Strong frame/capony, durable and strong protection and security on the job.
Hour meter / maintenance resets - easily monitor run time and track maintenance intervals.
Optional ATS sockets for connecting with an external automatic transfer switch.
Powered by reliable air/water cooled diesel generators sets, industrial grade, great fuel efficiency, less maintenance, long operating life.
Low oil shut-down provides added safety against engine damage.
8-10hours long run fuel tanktank with fuel gauge.
stainless steel parts with door lock and hinge fuel tank lock.
Strong frame/capony, durable and strong protection and security on the job.
Hour meter / maintenance resets - easily monitor run time and track maintenance intervals.
Optional ATS sockets for connecting with an external automatic transfer switch.
Product parameters
|
genset type
|
rated output
|
Engine
|
Alternator
|
control
|
|
|||||
|
|
|
(Kofo)
|
|
|
|
|||||
|
|
KW/KVA
|
model
|
model
|
Comap
|
|
|||||
|
GF2-55
|
40/50
|
N4105ZDS
|
224G(100%COPPER)
|
Comap
IL3AMF9 |
|
|||||
|
|
|
|
|
|
|
|||||
|
Genset SIZE
|
|
|
2200*890*1230
|
|
|
|||||
|
Weight
|
|
|
950kgs
|
|
|
|||||
|
Fuel comsuptions 100%Loading
|
|
|
12L/H
|
|
|
|||||
|
Base Fuel tank
|
|
|
8-10hours fuel tank
|
|
|
|||||
|
Engine Data sheet
|
|
|
|
|
|
|||||
|
Engine model
|
|
|
N4105ZDS
|
|
|
|||||
|
Type
|
|
|
Water cooling,in line,
four-stroke,wet liner and direct injection |
|
|
|||||
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
Number of cylinders
|
|
|
4
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
Bore/Stroke mm
|
|
|
105-120
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
Displancement L
|
|
|
4.15
|
|
|
|||||
|
Compression ratio
|
|
|
17:01
|
|
|
|||||
|
Aspiration
|
|
|
turbo
|
|
|
|||||
|
Rated output kW
|
|
|
56
|
|
|
|||||
|
Rated speed r/min
|
|
|
1500
|
|
|
|||||
|
g/kW.h
Fuel consumption rate |
|
|
≤248.8
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
r/min
No load Speed |
|
|
≤1575
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
%
Steady speed adjusting rario at rated condition |
|
|
≤5
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
Mpa
Oil pressure |
|
|
0．2-0．4
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
r/min
Idling speed |
|
|
≤650
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
Mpa
Oil pressure at idle speed |
|
|
≥0.10
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
g/kW.h
Oil consumption rate |
|
|
2.04
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
L
Oil sump capacity |
|
|
13
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
Starting method
|
|
|
Electric motor start
|
|
|
|||||
|
Lubricating method
|
|
|
Pressure lubrication
|
|
|
|||||
|
Crankshaft rotating direction
|
|
|
Counter clockwise(face to output end)
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
Fring order
|
|
|
1-3-4-2
|
|
|
|||||
|
Net mass kg
|
|
|
420
|
|
|
|||||
|
Alternator data sheet
|
|
|
|
|
|
|||||
|
Brnad
|
|
|
Copy stamford
|
|
|
|||||
|
model
|
|
|
DE-50KW
|
|
|
|||||
|
Prime power
|
|
|
50KW
|
|
|
|||||
|
Exciation mode
|
|
|
Brushless self-excitation
|
|
|
|||||
|
Power factor
|
|
|
0.8
|
|
|
|||||
|
Pressure regulating mode
|
|
|
AVR automatic pressure regulation
|
|
|
|||||
|
bearing
|
|
|
Long life and no need maintencances
|
|
|
|||||
|
Class of insulation
|
|
|
H grade
|
|
|
|||||
|
protection
|
|
|
IP23
|
|
|
|||||
Our Services
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
FAQ
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is
longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms
or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is
longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms
or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
