① TAIWAN HIWIN Guide Rail ② Anti-Collision Device ③ UV LED Lamp
④ Printhead ⑤ Emergency Stop Button ⑥ Universal Wheel
- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
UV ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ntek
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
L1060mm*W2100mm*H1160mm
-
Weight:
-
400 KG
-
Marketing Type:
-
New Product 2021
-
Product name:
-
6090 UV Flatbed Printer
-
Print head:
-
XP600/i3200/TX800/DX5/DX7, Ricoh Gen5//GH2220, Toshiba CE4
-
Ink:
-
uv ink
-
Printing Size:
-
A1(600*900mm)
-
Ink colors:
-
CMYK W V optional
-
Print speed:
-
3-12 sqm/h
-
UV lamp life:
-
Three years
-
Emboss print:
-
Available
Quick Details
-
Print Dimension:
-
900mm*600mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ntek
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
L1060mm*W2100mm*H1160mm
-
Weight:
-
400 KG
-
Marketing Type:
-
New Product 2021
-
Product name:
-
6090 UV Flatbed Printer
-
Print head:
-
XP600/i3200/TX800/DX5/DX7, Ricoh Gen5//GH2220, Toshiba CE4
-
Ink:
-
uv ink
-
Printing Size:
-
A1(600*900mm)
-
Ink colors:
-
CMYK W V optional
-
Print speed:
-
3-12 sqm/h
-
UV lamp life:
-
Three years
-
Emboss print:
-
Available
Product Description

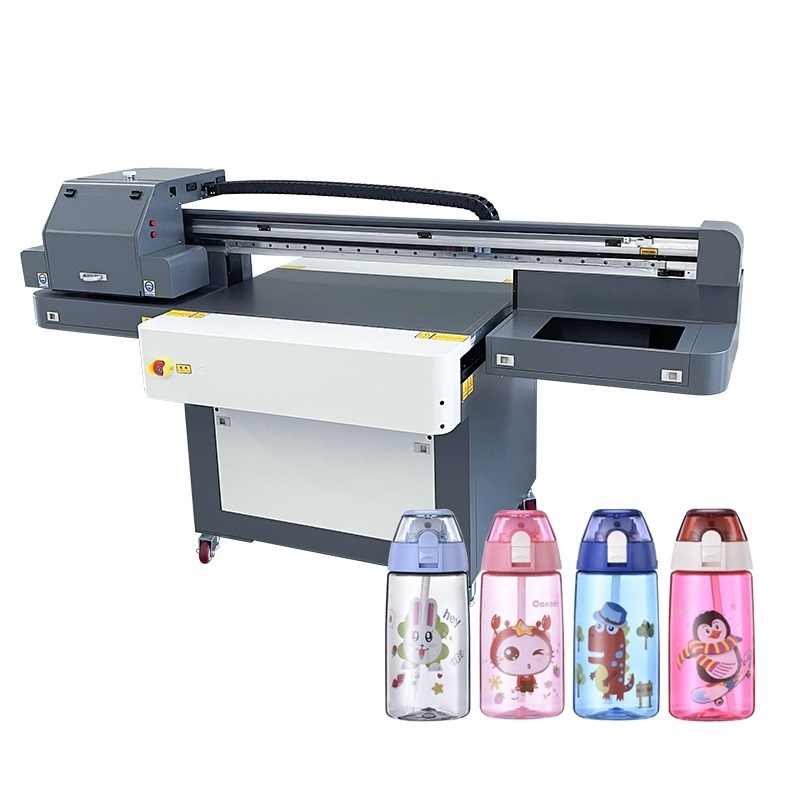

Ntek Low Price Small 6090 UV Flatbed Printer Pen Bottle Gift Printing Machine
6090 UV flatbed printer can widely print on glass, ceramic tile, PVC, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, corrugated cardboard, leather, flex banner, canvas, mesh paper, sticker, wallcoverings, etc.
Product Specification
|
Product Name & Model
|
UV Flatbed Printer YC6090
|
|
|
|
|||
|
Printhead Type
|
XP600/TX800/i3200/DX5/DX7, Ricoh G5i/GH2220, Toshiba CE4
|
|
|
|
|||
|
Printhead Number
|
2-8 heads
|
|
|
|
|||
|
Ink Characteristics
|
UV Curing Ink (VOC Free )
|
|
|
|
|||
|
Ink Reservoirs
|
Refillable on the fly while printing/1000ml per color
|
|
|
|
|||
|
LED UV Lamp
|
More than 30000-hours life
|
|
|
|
|||
|
Printhead Arrangement
|
C M Y K LC LM W varnish optional
|
|
|
|
|||
|
Print Height
|
0-100mm, higer can be customized
|
|
|
|
|||
|
Printing Resolution
|
720*600dpi, 720*900dpi, 720*1200dpi
|
|
|
|
|||
|
Media Thickness
|
0-100mm, higher can be customized
|
|
|
|
|||
|
UV Lamp Cooling
|
Water cooled
|
|
|
|
|||
|
3D or Emboss effect
|
Available
|
|
|
|
|||
|
File Format
|
TIFF, JPEG, Postscript, EPS, PDF etc.
|
|
|
|
|||
|
RIP Software
|
RipPrint/ Photoprint optional
|
|
|
|
|||
|
Power Supply
|
220V 50/ 60Hz (10%)
|
|
|
|
|||
|
Operating System
|
Windows
|
|
|
|
|||
|
Power
|
3100W
|
|
|
|
|||
|
Machine Dimension
|
1060*2100*1160mm
|
|
|
|
|||
|
Packing Dimension
|
2435*1220*1340mm
|
|
|
|
|||
|
Weight
|
400kg
|
|
|
|
|||
|
Warranty
|
12 months exclude the consumables like printhead
|
|
|
|
|||
9060 UV Flatbed Printer-Each Part Name
A1 UV Flatbed Printer Size : 2100*1060*1160mm
9060 UV Printing Machine-Each Side
Printer details
1. Printhead Type
Our 9060 printer can be with Japanese imported
DX5/DX7/XP600/TX800/i3200, Ricoh GH2220/
Gen5i or Toshiba CE4 head optional, which
provide a high-precision printing
DX5/DX7/XP600/TX800/i3200, Ricoh GH2220/
Gen5i or Toshiba CE4 head optional, which
provide a high-precision printing
2. Ink Characteristics
Our 6090 printer Use non-VOC environmental UV
curing ink, clear and perfect printing quality, no
bias color, no mixing color, waterproof, wear-
resistant
curing ink, clear and perfect printing quality, no
bias color, no mixing color, waterproof, wear-
resistant
3. Lift Cap Station System
Our 6090 UV printing machine adopt high precision screw rod, which lower noise, stable movement, ensure printer stable working
4. High Precision Mute Guide Rail
Our 9060 flatbed uv printer use the high precision
mute Taiwan HIWIN guide rail, long service life,
high stability, immensely decrease noise while
printer is printing, within 40DB while printing.
Drag Chain
Belt
UV LED Water Chiller
Printing Samples
CMYK LC LM White Varnish optional
Our 6090 fuv flatbed printer adopt small ink droplet printheads, provide high printing resolution printing, with variaible drop printing technology, achieve vivid printing effect. With multi-color printing, can print the 3D/5D/8D effect, embossing effect and glossy effect.
