Quick Details
-
Application:
-
Mortar spraying
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BAILUN
-
Dimension(L*W*H):
-
1700*700*800mm
-
Weight:
-
400 kg
-
Power:
-
11kw
Quick Details
-
Max. vertical conveying distance:
-
50M
-
Max. horizontal conveying distance:
-
100M
-
Hopper Capacity:
-
50L
-
Application:
-
Mortar spraying
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BAILUN
-
Dimension(L*W*H):
-
1700*700*800mm
-
Weight:
-
400 kg
-
Power:
-
11kw

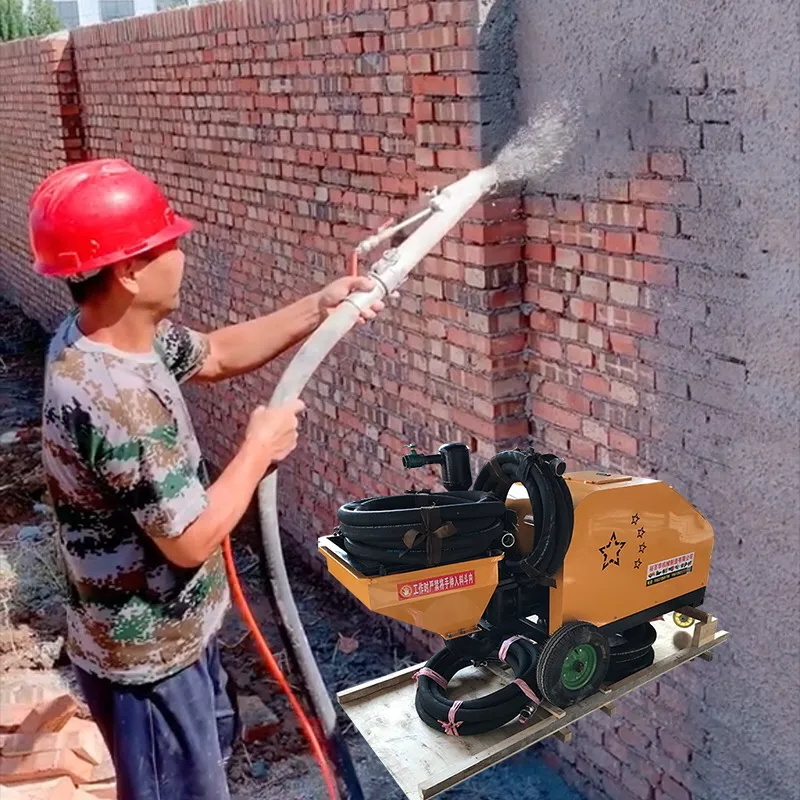

The utility model relates to a spraying device, in particular to a plunger type spraying machine, which can be widely used in the surface painting and spraying operation in the construction industry, including a frame welded with stainless steel materials, a driving motor and an air compressor are arranged on the frame, a feeding hopper is arranged on the top of the driving motor, and a gear box is arranged on the outer surface of the driving motor, The lower part of the gear box is provided with a plunger pump, the plunger pump is connected with an air compressor, the discharge port of the plunger pump is connected with a hose, the other end of the hose is fixedly connected with a spraying gun, and a control box is arranged at the armrest position of the rack. The plunger type spraying machine disclosed by the utility model has the advantages of simple structure, small volume, etc., and is suitable for use in narrow places, The consistency of the sprayed mortar and the uniformity of the mortar quality are guaranteed.
Product Description
Specification
|
Maximum conveying capacity
|
7 m³/h
|
|
Horizontal conveying distance
|
150m
|
|
Vertical conveying distance
|
60m
|
|
Maximum mortar ratio
|
1:3
|
|
Displacement of air compressor
|
0.36 m³/ min
|
|
Air compressor power
|
3kw
|
|
Total Weight
|
450kg
|
|
Outline size
|
1850*545*605mm
|
|
Main engine power
|
11kw
|
FAQ
1. We will provide the after- service support for all the customers.
2. If the customer needs, we will assign the engineers to provide technical support on site.
3. Implement the first responsibility system with warm reception, and must answer all questions.
4. Provide technical consultation on material selection and use, and follow up on site as required.
5. The delivery accuracy of the goods is 100%, and the goods code, invoice and warranty are processed according to the
requirements of the customers and timely delivered to the customers.
6. Follow up user's product usage, provide technical support and training in time.
2. If the customer needs, we will assign the engineers to provide technical support on site.
3. Implement the first responsibility system with warm reception, and must answer all questions.
4. Provide technical consultation on material selection and use, and follow up on site as required.
5. The delivery accuracy of the goods is 100%, and the goods code, invoice and warranty are processed according to the
requirements of the customers and timely delivered to the customers.
6. Follow up user's product usage, provide technical support and training in time.
