Quick Details
-
Product:
-

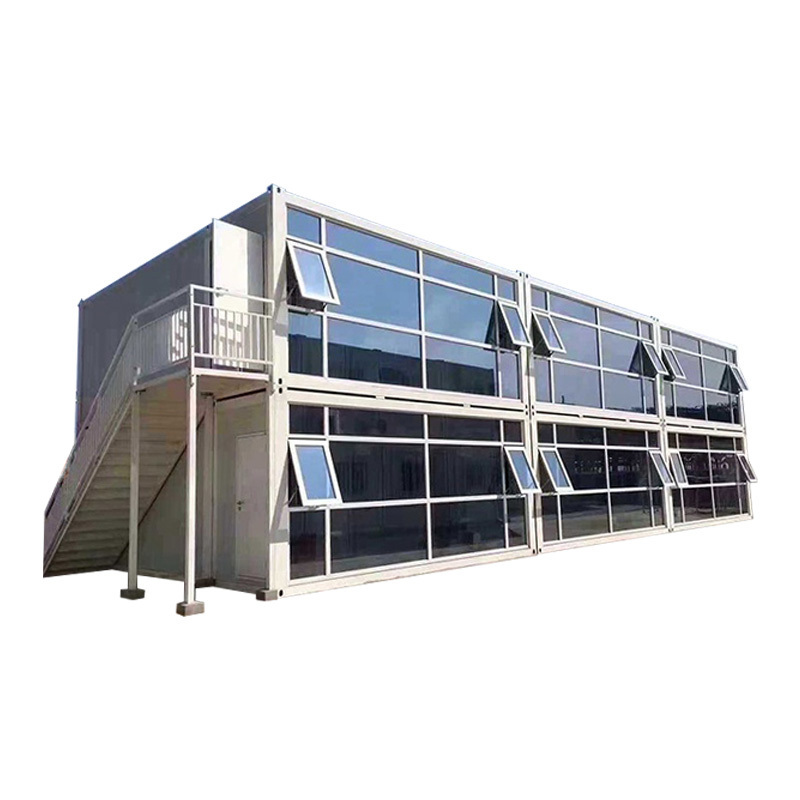

Detachable Container House
-
Main material:
-
Steel Structue Frames
-
Door material:
-
Glass Door/Fireproof Steel Door/Panel Door/Double Door
-
Wall:
-
Fixed Glass Wall/EPS Panel Wall/PU Panel Wall
-
Size:
-
5800*2400*2896mm
-
Wind resistant:
-
0.3kN/㎡
-
Earthquake resistant:
-
8 Grade
-
Loading:
-
6~7set/40HQ
-
Name:
-
exhibition container house
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
MEISHUO
-
Product name:
-
folding container house foldable small tiny container garden office
-
Product:
-
Detachable Container House
-
Main material:
-
Steel Structue Frames
-
Door material:
-
Glass Door/Fireproof Steel Door/Panel Door/Double Door
-
Wall:
-
Fixed Glass Wall/EPS Panel Wall/PU Panel Wall
-
Size:
-
5800*2400*2896mm
-
Wind resistant:
-
0.3kN/㎡
-
Earthquake resistant:
-
8 Grade
-
Loading:
-
6~7set/40HQ
-
Name:
-
exhibition container house
What is Flat Pack Container House？
Flat pack container house is a sustainable building solution for expanding site camp, designed to be energy-efficient and flexible working spaces. The 20ft(6m) container house is the base model self-contained unit.
Flat pack container house is rolled and formed by hot-dip galvanized steel sheet, which has high firmness, good fire resistance and waterproofness, and can be customized in size. Labor Camp flat pack container houses are low cost, easy to install and recyclable.
|
Name
|
Prefabricated Construction Site Container House Flat Pack Container Office For Sale
|
|
|
|
|||
|
Size
|
Standard Size: 6055*2990*2896mm Export Size: 5800*2400*2896mm
|
|
|
|
|||
|
Performance index
|
Heat insulation
|
λ=0.048W/m.K
|
Windproof
|
0.60kN/sqm
|
|||
|
|
Sound insulation
|
Sound insulation loss≥30dB
|
Fireproof
|
Grade A
|
|||
|
|
Waterproof
|
Sound insulation 360 degrees bite, organized drainage, precipitation 16mm/ min, no leakage.
|
Quakeproof
|
Grade 9
|
|||
|
|
Ground bearing capacity
|
2.0kN/sqm
|
Floor live load
|
1.1kN/sqm
|
|||
|
Structure
|
Structural section
|
Ground girder: 160mm, galvanized beam 3.0mm thick;
Ground secondary beam: specification 100*50*1.8mm, 9pcs galvanized square tubes; Column: 210*150 mm, galvanized beam 3.0 mm thick; Roof main beam: 180mm, galvanized beam 3.0mm thick; Roof secondary beam: 80*40*1.5mm thick, 7pcs galvanized square pipes; |
|
|
|||
|
|
Structural connection
|
M12*30 high strength bolt
|
|
|
|||
|
|
surface treatment
|
Electrostatic spraying plastic powder baking paint≥80μm
|
|
|
|||
|
Wallboard
|
Rock wool board
|
The color steel composite board is 75mm in thickness, 1150mm in width, 0.426mm in thickness, attached with PE film, white gray in
color, and free of embossing on double-sided flat plate; the bulk density of rock wool is 80kg/ M~3, and the combustion performance is A-class non combustible. |
|
|
|||
|
Roofing
|
Roof panel
|
Roof tile: color steel veneer bite thickness 0.426 mm, 360 ° bite
|
|
|
|||
|
|
Insulation layer
|
It has a thickness of 50 mm, a bulk density of 14 kg / M~3, and a class of incombustible
|
|
|
|||
|
|
Ceiling
|
831 strip ceiling board, 0.4mm
|
|
|
|||
|
Floor
|
Structural plate
|
Cement fiberboard, thickness 18mm
|
|
|
|||
|
|
Floors
|
PVC floor leather, 2.0 mm thick, seamless
|
|
|
|||
|
Door
|
Entrance doors
|
Steel suit door, size>w840mm × h2040mm, fireproof door lock
|
|
|
|||
|
Window
|
External window
|
UPVC series plastic steel sliding window, size: w1125mm x H1100 mm x 2 μm; 5 + 9 + 5 insulating glass with anti-theft net and
screen window |
|
|
|||
|
Decorate
|
Interior decoration
|
The inner corner is 0.5mm color steel folding piece, the column edge is 0.5mm color steel folding piece, and the skirting line is
PVC |
|
|
|||
|
Electrical
|
Light
|
LED strip lamp x 2 sets, 15W/ set
|
|
|
|||
|
|
Socket
|
10A five hole socket x 3 or 36V low voltage 4-hole USB panel x 3, 16a air conditioning socket x 1
|
|
|
|||
|
|
Switch
|
Single key switch x 1
|
|
|
|||
|
|
Power Distribution Box
|
Concealed distribution box x 1
|
|
|
|||
|
|
CEE industrial plug
|
220V,50Hz,3P32A x 1,
|
|
|
|||
|
|
Cable line
|
Household line: 3*6 square meters, air conditioning socket: 3*4 square meters, five hole sockets: 3*2.5 square meters, lighting:
2*1.5 square meters |
|
|
|||
FAQ：
1.Q: Could you please design a new and unique prefab house for me?
1.Q: Could you please design a new and unique prefab house for me?
A: Absolutely! We are able to provide you with not only construction scheme, but landscape design! One-stop service is our outstanding superiority with no doubt.
2.Q: What should I provide to build a prefab house?
A: So easy! Sketch drawing would be a better reference for us. However, you will never mind if you don't have any. Simply notify us your requirements, such as the area, usage and the stories of the house. Before long, you'll possess an amazing design.
3.Q: How could I ensure the cost of building a prefab house?
A: Firstly, the designing scheme should be accepted. Then, the kinds of building materials should be confirmed since different types and qualities make various prices. After that, we will send you a detailed quotation.
4.Q: How Long does it take to build a light steel prefab house?
A: It depends on the size of the house. Generally, one 50 square meter house five workers 1-3days finished installation, save manpower and time
5.Q: Is it difficult to build a prefab house?
A: Totally not, you can build the house independently according to the construction drawings as long as you know how to use anelectric tool.
6.Q: Does this kind of house can only be used in residential buildings?
A: Absolutely not. It can be used in all kinds of buildings, such as hotel, office, school, entertainment club, light industrial
workshop, etc.
7.Q: Is prefab house stable?
A: Set your hearts at rest! You are completely safe living in light steel prefab house even if there are hurricanes of 200km/h and 9-grade earthquake outside.
8.Q: what are the advantages of prefab house compared to the traditional building?
A: Better isolation of sound and heat, Better fireproof and anti-seismic, Wind resistance, Time and labor saving, More usable area, Excellent termite-proof capability
9.Q: Does prefab house look different from the ordinary one?
A: Yes. prefab house is more beautiful and suitable for any style.
10.Q: How do we cooperate on certain project?
A: Firstly, please send us your project details and your requirements. Then we will design accordingly, free of charge.
Afterwards, please check and confirm whether you like the drawings. If not, we shall get the drawings revised until your
confirmation. Finally, we make a deal on alibaba.com with Trade Assurance. Project details --> Drawings for your project -->
Revised drawings --> Transaction confirmation with Trade Assurance
11.Q: What is the delivery time?
A: Delivery time depends on order quantities. Generally, the delivery time will be 15-25 days after receiving the deposit
2.Q: What should I provide to build a prefab house?
A: So easy! Sketch drawing would be a better reference for us. However, you will never mind if you don't have any. Simply notify us your requirements, such as the area, usage and the stories of the house. Before long, you'll possess an amazing design.
3.Q: How could I ensure the cost of building a prefab house?
A: Firstly, the designing scheme should be accepted. Then, the kinds of building materials should be confirmed since different types and qualities make various prices. After that, we will send you a detailed quotation.
4.Q: How Long does it take to build a light steel prefab house?
A: It depends on the size of the house. Generally, one 50 square meter house five workers 1-3days finished installation, save manpower and time
5.Q: Is it difficult to build a prefab house?
A: Totally not, you can build the house independently according to the construction drawings as long as you know how to use anelectric tool.
6.Q: Does this kind of house can only be used in residential buildings?
A: Absolutely not. It can be used in all kinds of buildings, such as hotel, office, school, entertainment club, light industrial
workshop, etc.
7.Q: Is prefab house stable?
A: Set your hearts at rest! You are completely safe living in light steel prefab house even if there are hurricanes of 200km/h and 9-grade earthquake outside.
8.Q: what are the advantages of prefab house compared to the traditional building?
A: Better isolation of sound and heat, Better fireproof and anti-seismic, Wind resistance, Time and labor saving, More usable area, Excellent termite-proof capability
9.Q: Does prefab house look different from the ordinary one?
A: Yes. prefab house is more beautiful and suitable for any style.
10.Q: How do we cooperate on certain project?
A: Firstly, please send us your project details and your requirements. Then we will design accordingly, free of charge.
Afterwards, please check and confirm whether you like the drawings. If not, we shall get the drawings revised until your
confirmation. Finally, we make a deal on alibaba.com with Trade Assurance. Project details --> Drawings for your project -->
Revised drawings --> Transaction confirmation with Trade Assurance
11.Q: What is the delivery time?
A: Delivery time depends on order quantities. Generally, the delivery time will be 15-25 days after receiving the deposit
