1. Each cut need just 0.5s. (need to change for the different thickness );
2. Circuit adopt import plc programmable logic controller control, and color touch-screen operation;
3. With automatic off, automatic folder management, automatic shutdown;
4. Stable performance, fully automatic production ,system self-diagnostics and warning;
5. Positioning servo systems, precision ball screw drive, cutting the resolution up to 0.01mm.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JYD
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
2800*750*1300mm
-
Weight:
-
800 kg
-
Product:
-
Paper Tube Cutting Machine
-
Tube length:
-
10-1500mm
-
Diameter:
-
50-200mm
-
Thickness:
-
1-20mm
-
Knife quality:
-
1
-
Cutting way:
-
Tube rotate only
-
Feed way:
-
Pneumatic
-
Load and unload:
-
Manual
-
PLC:
-
Delta
-
Speed control:
-
Serve
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
1 times/0.6s
-
Max. workable width:
-
1500mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JYD
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
2800*750*1300mm
-
Weight:
-
800 kg
-
Product:
-
Paper Tube Cutting Machine
-
Tube length:
-
10-1500mm
-
Diameter:
-
50-200mm
-
Thickness:
-
1-20mm
-
Knife quality:
-
1
-
Cutting way:
-
Tube rotate only
-
Feed way:
-
Pneumatic
-
Load and unload:
-
Manual
-
PLC:
-
Delta
-
Speed control:
-
Serve
Features

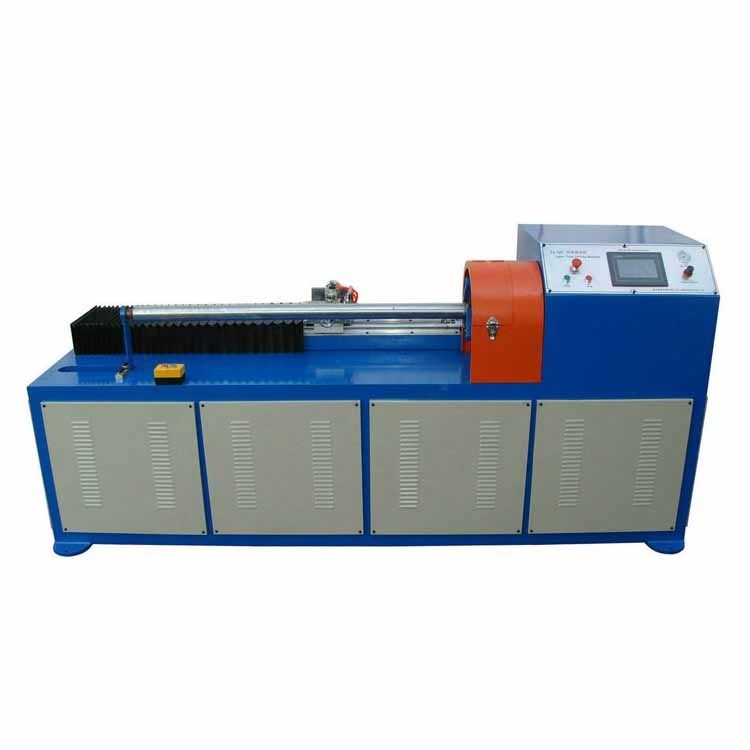

Paper tube cutting machine
Product Paramenters
|
Paper tube Diameter
|
Φ50-200(mm)
|
|
paper tube thickness
|
1-20(mm)
|
|
Cutting paper tube Length
|
10-1500(mm)
|
|
Mother tube length
|
1500mm
|
|
Working air pressure
|
0.6MPa
|
|
Knife quantity
|
1 set
|
|
Motor power
|
2.2kw
|
|
Operator
|
1
|
|
Speed control
|
Serve
|
|
Load and unload
|
Manual
|
|
Voltage
|
380V/220V
|
|
Main dimensions: length * width * height
|
2800mm*750*1300mm
|
|
Total weight
|
800kg
|
