Quick Details
-
Place of Origin:
-
China
-
Mechnical life:
-
100,000 times
-
Electrical life:
-
100,000 times
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
DC 0.6A, AC 15A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
China
-
Mechnical life:
-
100,000 times
-
Electrical life:
-
100,000 times

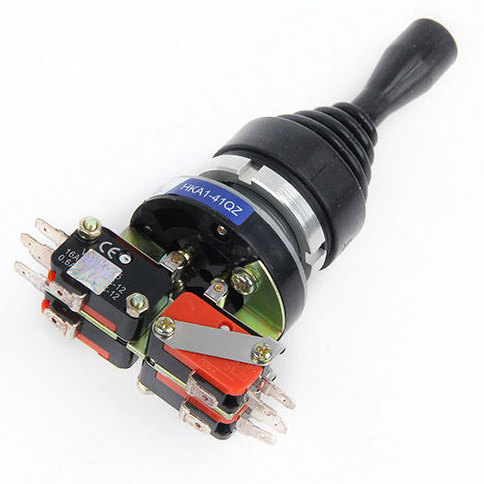

HKA1-41QZ DC 0.6A 125Vdc 0.3A 250Vdc and AC 15A 125Vac 250Vac 30mm fixing hole Spring return 4NC 4NO Momentary Joystick Switch
| Product Name | Joystick Switch | |||||||
| Model | HKA1-41Z02 | HKA1-41Y02 | HKA1-41Z04 | HKA1-41Y04 | HKA1-42Z04 | HKA1-42Y04 | HKA1-41QZ | HKA1-41QY |
| Reference Photo: |
|
|
|
|||||
| Action Type | Momentary | Latching | Momentary | Latching | Momentary | Latching | Momentary | Latching |
| Position | 2 Position | 4 Position | ||||||
| Contact Type | 2NO | 4NO | 8NO | 4NO 4NC | ||||
| Contact Figure |
|
|||||||
| Voltage & Current | AC 380V, max 15A | 0.6A 125Vdc, 0.3A 250Vdc, 15A 125Vac/250Vac | ||||||
| Fixing Hole | 30mm diameter | |||||||
| Angle | ±30° | |||||||
| Mechanical Life | 100 Thousand times | |||||||
| Electrical Life | 100 Thousand times | |||||||
* HKA1-41Z02-2: 2 position, 4NO, Momentary
* HKA1-41Y02-2: 2 position, 4NO, Latching
* model plusing "A" in the end: with button type
Dimension of HKA1-41Z02, HKA1-41Y02, HKA1-41Z04, HKA1-41Y04:
Dimension of HKA1-42Z04, HKA1-42Y04:
Dimension of HKA1-41QZ, HKA1-41QY:
