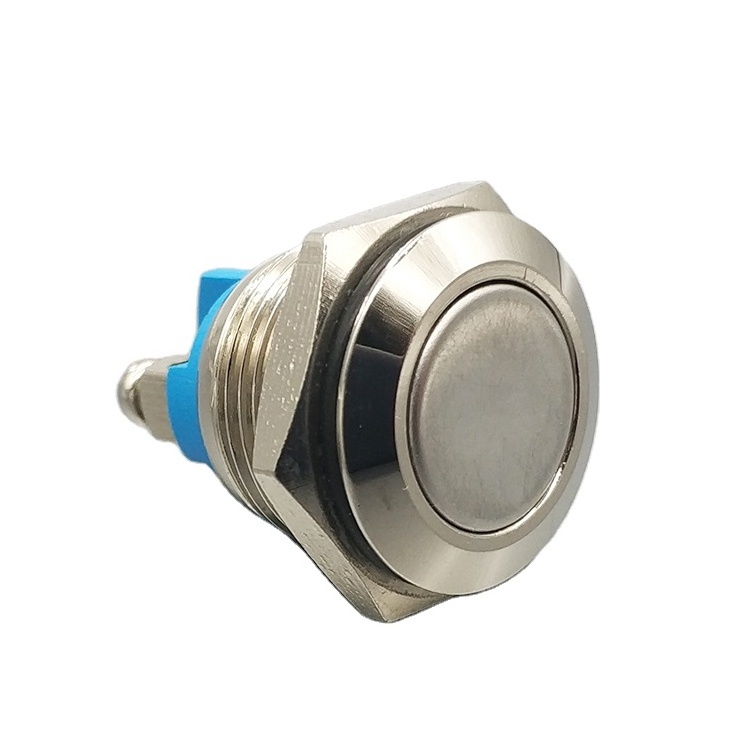

Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fzolink
-
Model Number:
-
OL-16QA
-
IP level:
-
IP65
-
Hole Size:
-
16mm
-
Head Shape:
-
High Round,Flat,Ball
-
Structure:
-
1NO
-
Specifications:
-
2A/36VDC,2A/250VAC
-
Function:
-
Momentary
-
Terminals:
-
J pin/Screw
-
Lamp Color:
-
R,O,Y,G,B,W
-
Shell Material:
-
Brass nickel plated,Stainless steel
-
Protection Grade:
-
IP65,IK08
-
Panel Thickness:
-
1-10mm
Quick Details
-
Protection Level:
-
IP65 IK08
-
Max. Current:
-
2A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fzolink
-
Model Number:
-
OL-16QA
-
IP level:
-
IP65
-
Hole Size:
-
16mm
-
Head Shape:
-
High Round,Flat,Ball
-
Structure:
-
1NO
-
Specifications:
-
2A/36VDC,2A/250VAC
-
Function:
-
Momentary
-
Terminals:
-
J pin/Screw
-
Lamp Color:
-
R,O,Y,G,B,W
-
Shell Material:
-
Brass nickel plated,Stainless steel
-
Protection Grade:
-
IP65,IK08
-
Panel Thickness:
-
1-10mm
More product options
Product Parameters
|
NO.
|
MODEL
|
ITEM NO.
|
HEAD SHAPE
|
SWITCH
FUNCTION
|
TERMINAL
|
LAMP TYPE
|
SHELL MATERIAL
|
|
1
|
C10
|
16QA-H10/D
|
High Round
|
1NO
Momentary
|
J Pin Terminal
|
Dot
|
Stainless steel |
|
2
|
C8
|
16QA-H10/E
|
High Round
|
|
J Pin Terminal
|
Ring
|
|
|
3
|
C7
|
16QA-F10/D
|
Flat
|
|
J Pin Terminal
|
Dot
|
|
|
4
|
C27
|
16QA-P10/E
|
Plane
|
|
J Pin Terminal
|
Ring
|
|
|
5
|
C26
|
16QA-H10L/E
|
High Round
|
|
Screw Terminal
|
Ring
|
|
|
6
|
C25
|
16QA-F10L/E
|
Flat
|
|
Screw Terminal
|
Ring
|
|
|
7
|
C9
|
16QA-F10/E
|
Flat
|
|
J Pin Terminal
|
Ring
|
|
|
8
|
C34
|
16QA-F10/EV
|
Flat
|
|
J Pin Terminal
|
Ring&Symbol
|
|
|
9
|
C3
|
16QA-H10L
|
High Round
|
|
Screw Terminal
|
|
|
|
10
|
C33
|
16QA-G10L
|
High Concave
|
|
Screw Terminal
|
|
|
|
11
|
C2
|
16QA-F10L
|
Flat
|
|
Screw Terminal
|
|
|
|
12
|
C1
|
16QA-B10L
|
Ball
|
|
Screw Terminal
|
|
|
|
13
|
C5
|
16QA-F10
|
Flat
|
|
J Pin Terminal
|
|
|
|
14
|
C4
|
16QA-B10
|
Ball
|
|
J Pin Terminal
|
|
|
|
15
|
C6
|
16QA-H10
|
High Round
|
|
J Pin Terminal
|
|
|
|
* Technical Parameters
|
|
|
|
|
||||
|
Terminal Type
|
J Pinl/Screw Terminal
|
Protection Grade
|
|
IP65/IK08
|
||||
|
Structure
|
1NO
|
Material
|
Contact
|
Silver alloy
|
||||
|
Specifications
|
2A/36VDC 2A/250VAC
|
|
Button
|
Stainless steel
|
||||
|
Contact Resistance
|
≤50mΩ
|
|
|
Zn-Al alloy(Made to order any color)
|
||||
|
Insulation Resistance
|
≥1000MΩ
|
|
Body
|
Brass nickel plated/Stainless steel
|
||||
|
Dielectric Strength
|
2000VAC
|
|
|
Zn-Al alloy(Made to order any color)
|
||||
|
Environent Temperature
|
-20℃~+55℃
|
|
Base
|
PBT
|
||||
|
Mechanical Life
|
>1000000 times
|
Lamp
Parameters |
Rated
Voltage |
Red Orange yellow 2V
|
||||
|
Electical Lifer
|
>200000 times
|
|
|
green blue White 3V
|
||||
|
Panel Thickness
|
1~10mm
|
|
|
Other voltages require an external resistor
|
||||
|
Nut Torque
|
5-14Nm
|
|
Color
|
Red Orange yellow
|
||||
|
Operating Pressure
|
3-5N
|
|
|
green blue White
|
||||
|
Operating Distance
|
About 2.0mm
|
|
Life
|
50000 Hours
|
||||
