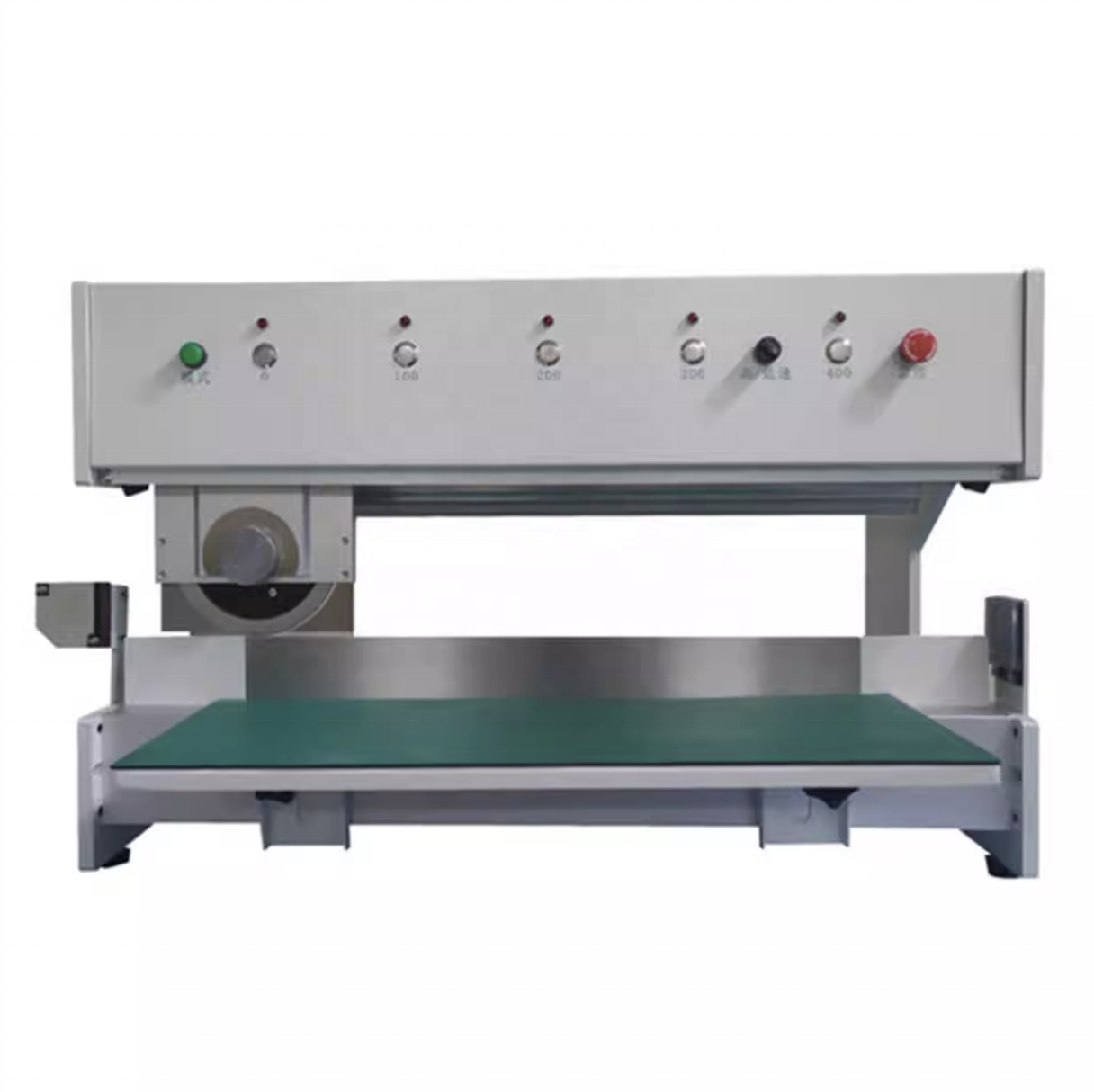

High quality PCB circuit board cutting making machine

Product description:
The knife-type splitting machine adopts the design of the upper circular knife and the lower straight knife. When cutting the board, the v-cut is placed on the lower straight knife, the circuit board does not move, and the upper circular knife moves to cut the board. The stress is relatively small, and the board does not move the knife. The dynamic board cutting mode also effectively avoids bumps during circuit board splitting operations, and avoids problems such as hidden damage and component damage. Suitable for all kinds of glass fiber boards, FR-4boards, FR-1boards, etc. Relatively speaking, the hardness is not as large as aluminum substrates. For PCB boards with components on both sides, this equipment is especially suitable for board separation.

Features of High quality PCB circuit board cutting making machine:

1.Any PC board with V-CUT is appropriate for this machine.

2.The linear slide rail, stress reduction when segmentation, to prevent the solder joint cracking.

3.The circular knife eccentric design, distance between upper and lower cutter can be adjusted , PC board thickness can be adjusted.

4. The machine light, does not occupy space. Easy operation and maintenance.

5. For special specifications of the PC board, can be customized .

7.Conveyor belt is optional , conveniently transfer finished PCB out.

8.Stop block can be used for different PCBs, to raise working efficiency.

Specifications for each model:
