Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SLT-220vdc motor
-
Model Number:
-
SLT77ZYT-01B220-220vdc motor
-
Torque:
-
1N.m
-
220v dc motor:
-
high voltage 220v dc motor with bracket 200W 1Nm
-
Voltage:
-
220V
-
Rated Current:
-
3.5A
-
Rated speed:
-
2600 r/min
-
Rated Power:
-
200W
-
Rated torque::
-
1N.m
-
Diameter:
-
13mm-130mm
-
Length:
-
175mm
Quick Details
-
Speed(RPM):
-
2600 r/min
-
Continuous Current(A):
-
3.5A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SLT-220vdc motor
-
Model Number:
-
SLT77ZYT-01B220-220vdc motor
-
Torque:
-
1N.m
-
220v dc motor:
-
high voltage 220v dc motor with bracket 200W 1Nm
-
Voltage:
-
220V
-
Rated Current:
-
3.5A
-
Rated speed:
-
2600 r/min
-
Rated Power:
-
200W
-
Rated torque::
-
1N.m
-
Diameter:
-
13mm-130mm
-
Length:
-
175mm
High voltage 220v dc motor with bracket 200W 1Nm

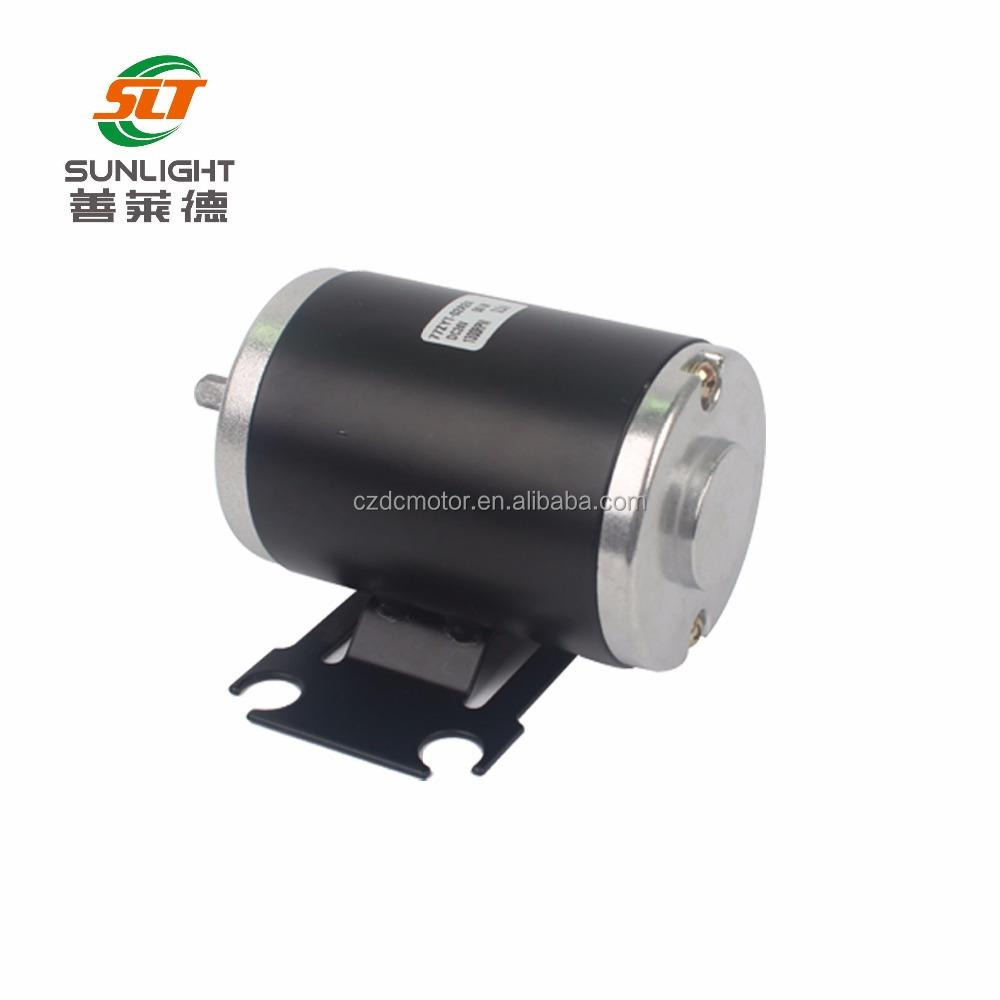

Picture of 20vdc motor
Specification of 220v dc motor
77ZYT-01B220
| Voltage | 220VDC |
| Rated Current | 3.5A |
| Rated Speed | 2600r/min |
| Rated Power | 200W |
| Rated Torque | 1N.m |
| Length | 175mm |
Specification of 77mm DC motor with bracket
| SLT-PT17 | ||||||
| Specification | ||||||
| Model |
Voltage (V)DC |
Rated Current (A) |
Rated Speed (r/min) |
Rated Power (W) |
Rated Torque (N.m) |
Length (mm) |
| 77ZYT-01B24 | 24 | 6 | 2200 | 80 | 0.32 | 131 |
| 77ZYT-01B12 | 12 | 6 | 2300 | 35 | 0.15 | 131 |
| 77ZYT-02B24 | 24 | 4.5 | 1000 | 60 | 0.6 | 135 |
| 77ZYT-03B24 | 24 | 1.8 | 1000 | 25 | 0.25 | 109 |
| 77ZYT-04B36 | 36 | 5.5 | 2800 | 120 | 0.8 | 145 |
| 77ZYT-01B180 | 180 | 2 | 2700 | 120 | 0.5 | 120 |
| 77ZYT-01B220 | 220 | 3.5 | 2600 | 200 | 1 | 175 |
| General scope: | ||||||
| Voltage | 12 & 220 V DC | |||||
| Output Power | 0 - 200 W | |||||
| Rated Speed | 0-5000 RPM | |||||
| Ambient Temperature | ’-20℃ ~ + 40℃ | |||||
| Insulation class | B,F | |||||
| Use occasions |
Fitness equipment, oil pump, plastic machine, pump, water pump equipment |
|||||
Drawing of 77ZYT-01B220 220v dc motor
