Quick Details
-
Table Size:
-
120*110*110CM
-
Weight:
-
1000 kg
-
Marketing Type:
-
Hot Product 2022
-
Name:
-
Wheelchair lift platform
-
Loading capacity:
-
maximum 300 Kg
-
Lifting Height:
-
1-6M
-
platform pavement:
-
3mm Anti-skid trade plate
-
Install type:
-
Non- pit iinstallation
-
Overload protection:
-
over-current relay control
-
Hydraulic oil cylinder:
-
1 or 2 pieces
-
Hydraulic pump station:
-
Produced by Italy & China Joint Venture company
-
Hydraulic Oil:
-
32# wearable hydraulic oil
-
Product name:
-
Elevator Home Lift
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAFELY
-
Table Size:
-
120*110*110CM
-
Weight:
-
1000 kg
-
Marketing Type:
-
Hot Product 2022
-
Name:
-
Wheelchair lift platform
-
Loading capacity:
-
maximum 300 Kg
-
Lifting Height:
-
1-6M
-
platform pavement:
-
3mm Anti-skid trade plate
-
Install type:
-
Non- pit iinstallation
-
Overload protection:
-
over-current relay control
-
Hydraulic oil cylinder:
-
1 or 2 pieces
-
Hydraulic pump station:
-
Produced by Italy & China Joint Venture company
-
Hydraulic Oil:
-
32# wearable hydraulic oil
-
Product name:
-
Elevator Home Lift

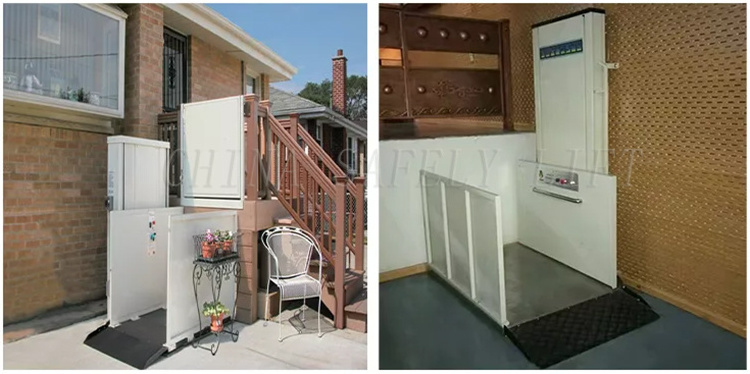

Wheelchair Elevator Lift Outdoor small elevator for disabled
Products Description
Wheelchair lift is special designed for disabled and elderly people,so it very stable and safety.
The wheelchair lift is made of high-end aluminum, which is very good in process, easy to disassemble and assemble, and not like the Welded iron material,has a rough workmanship.
We mainly produce the wheelchair lift from 1m-10m,the load capacity is 250kg, and the platform size can be customized.If you have a special requirements for color,we can also design according to your request.
|
Product name
|
Home elevator
|
|
Platform Size
|
1200*690mm
|
|
Minimum Platform Height
|
1.5M
|
|
Maximum Lifting Height
|
18M(Custom)
|
|
Entry & Exit Mode
|
0°/90°/180°
|
|
Lifting Speed
|
60mm/s---Adjustable
|
|
Load Capacity
|
300KG
|
|
Control Source
|
220V
|
|
Motor Power
|
1.1KW
|
|
Power Supply
|
220V/50HZ
|
|
Drive System
|
Hydraulic driven
|
|
Running Mode
|
ogging control or setted lifting range
|
|
Installation Mode
|
No pit, installed to the concrete ground directly
|
|
Extron Control Device
|
The panel boxes are placed next to the entrance on the above/below floor.
|
