Quick Details
-
Voltage:
-
380V/220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NEW STAR
-
Dimension(L*W*H):
-
4600*1960*1500mm
-
Weight:
-
2100 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max Paper Size:
-
920/1040mm
-
Min Paper Size:
-
270*240mm
-
Paper Thickness:
-
100-500g/m2
-
Gross Power:
-
18kw
-
Total Weight:
-
2100kg
-
Overall Dimensions:
-
5600x1450x1600mm
-
Usage:
-
Laminating Materials
-
Speed:
-
0-80m/min
Quick Details
-
Packaging Type:
-
Barrel, Belt, Bottles, CANS, Capsule, Cartons, case, Film, Foil, Pouch, Stand-up Pouch
-
Packaging Material:
-
Glass, Metal, Paper, Plastic, Wood
-
Driven Type:
-
Electric
-
Voltage:
-
380V/220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NEW STAR
-
Dimension(L*W*H):
-
4600*1960*1500mm
-
Weight:
-
2100 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max Paper Size:
-
920/1040mm
-
Min Paper Size:
-
270*240mm
-
Paper Thickness:
-
100-500g/m2
-
Gross Power:
-
18kw
-
Total Weight:
-
2100kg
-
Overall Dimensions:
-
5600x1450x1600mm
-
Usage:
-
Laminating Materials
-
Speed:
-
0-80m/min
Product Overview

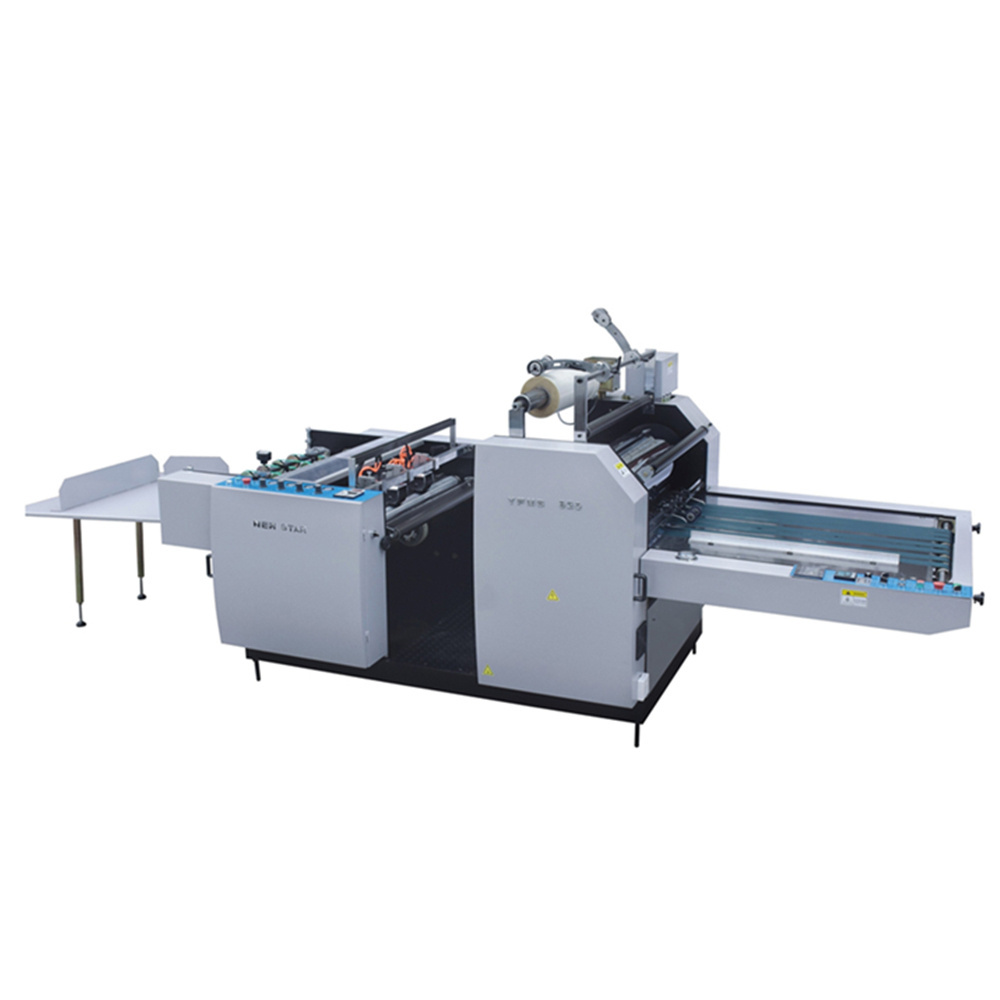

YFMB-950B Semi-automatic Photo Laminating Machine
Applications
·pre-glued film / thermal film
Roller Diameter: 268mm or 320mm use on 950 model
·pre-glued film / thermal film
Roller Diameter: 268mm or 320mm use on 950 model
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Model
|
YFMB-950A
|
|
2
|
Max paper size
|
920mm
|
|
3
|
Min paper size
|
210*270mm
|
|
4
|
Paper weight
|
105-500g/m2
|
|
5
|
Laminating speed
|
0-30m/min
|
|
6
|
Voltage
|
380V
|
|
7
|
Temperature
|
Room-130oC
|
|
8
|
Power
|
15kw
|
|
9
|
Total weight
|
1800kg
|
|
10
|
Overall dimension
|
4200x1700x1600mm
|
PRODUCT CONFIGURATION
·Omron frequency converter is equipped for infinitely variable speed, and the operator can change the machine' s speed easily and guarantee the machine' s running stable.
·One-piece construction design makes the machine run more stably, and lengthens the machine' s lifetime.
·Manual paper feeding.
·Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
·High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
·Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
·Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
·The combination of air expansion shaft and braking device can adjust film release tension and speed.
·Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
·Film perforating wheel perforates film edge for the automatic cut of laminated paper.
·Anti-curvature device: when going through anti-curvature device, the laminated paper shall be leveled at once and wont curve again after cut.
·Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the workable paper size on the text screen.
·The cut paper is sent to paper receiving table. And the table height is adjustable upon applications.
·One-piece construction design makes the machine run more stably, and lengthens the machine' s lifetime.
·Manual paper feeding.
·Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
·High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
·Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
·Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
·The combination of air expansion shaft and braking device can adjust film release tension and speed.
·Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
·Film perforating wheel perforates film edge for the automatic cut of laminated paper.
·Anti-curvature device: when going through anti-curvature device, the laminated paper shall be leveled at once and wont curve again after cut.
·Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the workable paper size on the text screen.
·The cut paper is sent to paper receiving table. And the table height is adjustable upon applications.
Suction device
Front guage
Pneumatic slitting system
