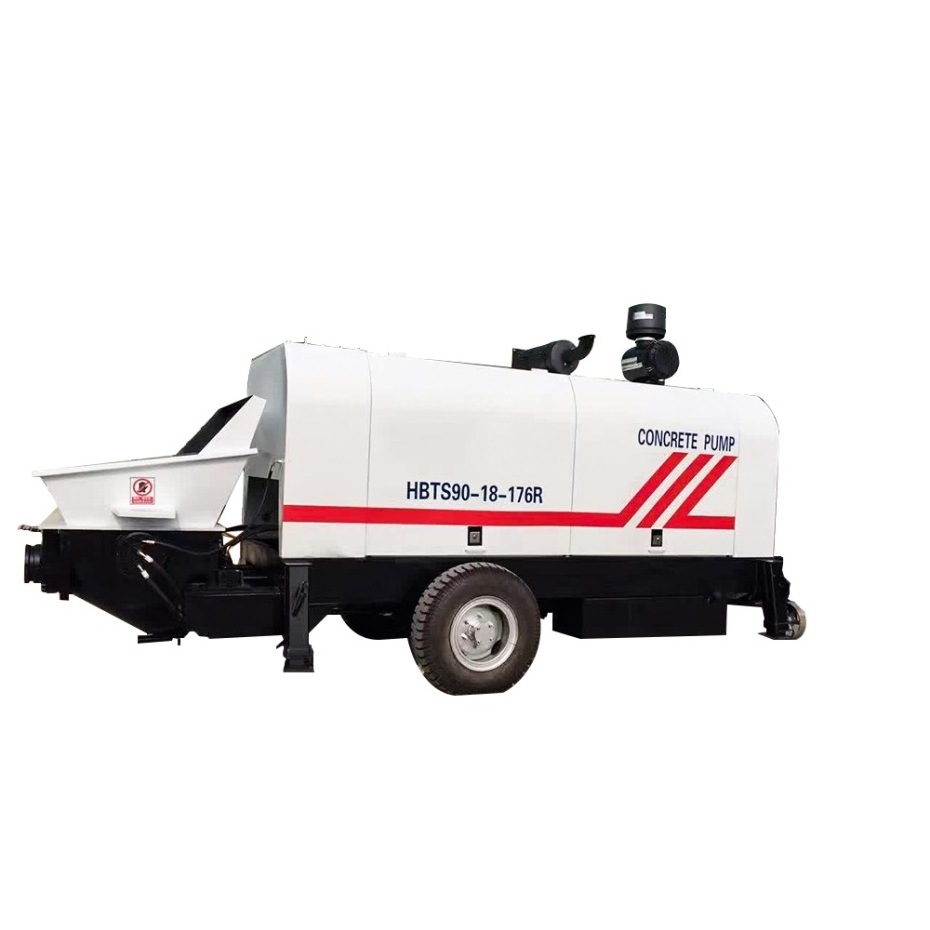

New mini concrete pump machine prices with diesel engine trailer mounted concrete stationary pumps for sale
New mini concrete pump machine prices with diesel engine trailer mounted concrete stationary pumps for sale
New mini concrete pump machine prices with diesel engine trailer mounted concrete stationary pumps for sale
New mini concrete pump machine prices with diesel engine trailer mounted concrete stationary pumps for sale
New mini concrete pump machine prices with diesel engine trailer mounted concrete stationary pumps for sale
New mini concrete pump machine prices with diesel engine trailer mounted concrete stationary pumps for sale
New mini concrete pump machine prices with diesel engine trailer mounted concrete stationary pumps for sale
New mini concrete pump machine prices with diesel engine trailer mounted concrete stationary pumps for sale

New mini concrete pump machine prices with diesel engine trailer mounted concrete stationary pumps for sale

FOB Reference Price: Get Latest Price
≥1 Sets
US $7600
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Productivity:
90m3/h, 15M³/H
Place of Origin:
Henan, China
Weight:
26000 kg
Dimension(L*W*H):
11055X2510X3830
Power:
Diesel
Maximum delivery volume:
15M³/H
Aggregate size:
0.5-3cm
Horizontal conveying distance:
60-180m
Motor Power:
30kw

Quick Details

Power Type:
Diesel
Max. vertical conveying distance:
38M, 20m-60m
Max. horizontal conveying distance:
33M, 60m-180m
Productivity:
90m3/h, 15M³/H
Place of Origin:
Henan, China
Weight:
26000 kg
Dimension(L*W*H):
11055X2510X3830
Power:
Diesel
Maximum delivery volume:
15M³/H
Aggregate size:
0.5-3cm
Horizontal conveying distance:
60-180m
Motor Power:
30kw

New mini concrete pump machine prices with diesel engine trailer mounted concrete stationary pumps for sale

Description

HBT/R series fine stone concrete pump is a kind of concrete pumping equipment that continuously transports fine stone concrete that meets the pumping requirements to the pouring site through horizontal or vertical pipelines. Excellent performance and stability, the pumping height can reach more than 100 meters vertically, even under harsh concrete pumping conditions, it still shows excellent performance, widely used in floor heating engineering, walls of high-rise buildings, ground mortar and concrete Support lining for pumping tunnels, mines and other underground projects.
Among them, BS-RS is a diesel-powered fine stone concrete pump , which is mainly suitable for remote areas without electricity.

Advantages

Features

Electric control system:

Fully enclosed electrical control box, the protection control device can work under harsh conditions.
PLC programmable, program controller is used to simplify electrical appliances, the reliability and service life are obviously improved, and it has a fault display function, which is convenient for troubleshooting. Wired remote control, safe and convenient to operate.

Hydraulic system:

The liftable side door is very convenient for operation, maintenance and maintenance.
The side door is made with special technology, which can effectively reduce the operating noise.
Double-pump, double-circuit open hydraulic system is adopted.
The system is simple, with long component life and high reliability.
The pumping oil circuit adopts non-contact automatic reversing and time-delay control, which avoids reversing impact, and the reversing is accurate, stable and reliable.
The hydraulic system is equipped with safety overflow protection and overpressure automatic cut-off and interception device, so that the main pump has multi-level reliable protection.
The suction filter technology is adopted to prevent foreign matter from entering the hydraulic circuit, which greatly prolongs the service life of system components while improving system reliability.
Independent forced air cooling to ensure the oil temperature is lower than 60°C.

Pumping system

The reducing diameter design of the material port can release the reducing diameter pressure of concrete in the conveying tube to the maximum extent, and reduce the wear resistance life of the S-tube outlet. At the same time, the French connection between the reducer and the outlet is adopted, which effectively reduces the phenomenon of pumping shock and vibration, and eliminates the security risks caused by the clamp connection.

The high-torque mixing system not only has large torque, but also the mixing shaft design that is easy to disassemble and assemble, which greatly facilitates the maintenance of customers. The mixing blade adopts the three-sided surfacing welding process of wear-resistant alloy to ensure its high life.

Stepless adjustment of pumping displacement: The pumping speed can be adjusted stepless, and the pumping displacement can be changed according to the specific conditions of construction to meet the needs of different working conditions.

Application

Structures

Working site

Technical parameters

Model

HB22-20

Motor

HB22-20 Diesel

30 Enhanced motor

30 Enhanced diesel

4180-40 Motor

4180-40 Diesel

Convey measure

(m 3 /h )

15

15

15-20

15-20

30-40

30-40

Maximum outlet pressure

(Mpa )

18

18

18

18

23

23

Grain diameter

(mm )

≤20

≤20

≤30

≤30

≤30

≤30

Hopper capacity (L )

150

150

150

150

/

/

Bore Stroke

/

/

/

/

160*1100

160*1100

Pipe diameter

(mm )

20

80/100

80/100

80/100

80/100

80/100

Weight

(KG )

1100

1400

1300

1700

2200

2500

Dimension

(mm )

2800*1300*1400

3500*1400*1700

3500*1400*1500

3800*1400*1500

4100*1700*1700

4100*1700*1900

Power (KW )

22

37

37

37

45

65

Horizontal transport diameter

(m )

80

80

150

150

300

300

Vertical transport distance

(m )

40

40

80

80

130

130

Packaging-and-Delivery

Company

Certification

FAQ

Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China.

Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .

Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China.

Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.

Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
