Quick Details
-
Max. Loading Capacity:
-
200L
-
Weight (KG):
-
650 KG
-
Place of Origin:
-
China
-
Brand Name:
-
FONFAR
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1900mm*800mm*1600mm
-
Power (kW):
-
1.1 kW
-
Product name:
-
Chemical mixing equipment
-
Packaging Type:
-
Wooden Carton
-
Working Capacity:
-
11kg~100kgs
-
Barrel movement mode:
-
360 degree rotation
-
Machine material:
-
Stainless Steel
-
Heating Method:
-
Electric
-
Unloading method:
-
Ball valve discharge
-
Layout form:
-
Horizontal
-
Material type:
-
Particle powder
Quick Details
-
Barrel Volume (L):
-
100 L
-
Max. Loading Volume (L):
-
200 L
-
Range of Spindle Speed(r.p.m):
-
1 - 12 r.p.m
-
Max. Loading Capacity:
-
200L
-
Weight (KG):
-
650 KG
-
Place of Origin:
-
China
-
Brand Name:
-
FONFAR
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1900mm*800mm*1600mm
-
Power (kW):
-
1.1 kW
-
Product name:
-
Chemical mixing equipment
-
Packaging Type:
-
Wooden Carton
-
Working Capacity:
-
11kg~100kgs
-
Barrel movement mode:
-
360 degree rotation
-
Machine material:
-
Stainless Steel
-
Heating Method:
-
Electric
-
Unloading method:
-
Ball valve discharge
-
Layout form:
-
Horizontal
-
Material type:
-
Particle powder

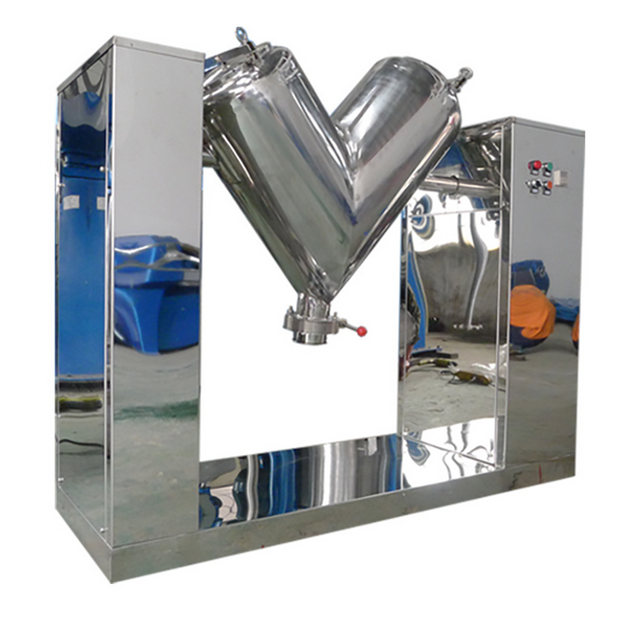

Chemical V Shape Dry Powder Trough Type Ribbon Mixer/Pharmaceutical V type powder mixer
Description of Chemical mixing equipment :
This machine is suitable for the mixing of two or more dry powder and granular materials in the chemical and food industries. This machine's mixing cylinder has a unique structure, high mixing efficiency and no dead ends. It is made of stainless steel, polished on the inner and outer walls, beautiful in appearance, uniform in mixing, wide in application area, and can be equipped with a forced agitator according to the requirements of users to suit thinner It is used to mix powder, block, and materials with certain moisture content.
Features of Chemical mixing equipment :
1.This machine can use vacuum suction to work in a sealed state.
2.No transmission mechanism inside, clean, sanitary, no dead angle, meet GMP requirements.
3. The mixing barrel is made of stainless steel with polished internal and external walls.
4. This machine has beautiful appearance, uniform mixing and wide application.
Parameters of Chemical mixing equipment :
| Model | V-50 | V-100 | V-200 | V-300 |
|---|---|---|---|---|
| Volume | 50L | 100L | 200L | 300L |
| Max. Filling Capacity | 20L | 40L | 80L | 120L |
| Best Filling Capacity | 14L | 28L | 56L | 84L |
| Power | 0.75KW | 1.1KW | 1.5KW | 1.5KW |
| Rotational Speed | 20r/min | 15r/min | 15r/min | 15r/min |
| Dia. Of barrel | Φ300mm | Φ350mm | Φ450mm | Φ500mm |
| Dia. Of Inlet | Φ160mm | Φ250mm | Φ300mm | Φ300mm |
| Dia. Of Outlet | Φ80mm | Φ80mm | Φ100mm | Φ100mm |
| Dimensions(mm) | 1350*450*1160 | 1900*800*1190 | 2010*850*1440 | 2220*900*1470 |
Details Picture of Chemical mixing equipment:
Physical Pictures
of Chemical mixing equipment:
