Yaham variable message sign, often used on roadways, are designed to deliver traffic information covering congestion report,accident report, temperature, lane control and limit speed sign, etc. It has been widely used in modern transportation system and it is becoming indispensable..
- Product Details
- {{item.text}}
Quick Details
-
Panel Size:
-
customized
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
YM-VMS-P10
-
use:
-
traffic road, highway, Road Safety
-
Specification:
-
led message board
-
Pixel:
-
10mm
-
usage:
-
Roadway Safty
-
Module Size:
-
320X160mm
-
Power supply:
-
12V-24V DC
-
Cabinet size:
-
960x960mm
-
led type:
-
3 in 1 SMD +LENS
-
Contrast ratio:
-
C2 En12966
-
Light source:
-
CREE/Nicha/nation star
-
Certificate:
-
EN12966/CE/ROHS/FCC/ISO
Quick Details
-
Application:
-
highway
-
Brand Name:
-
YAHAM
-
Color:
-
ful color, ful color
-
Panel Size:
-
customized
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
YM-VMS-P10
-
use:
-
traffic road, highway, Road Safety
-
Specification:
-
led message board
-
Pixel:
-
10mm
-
usage:
-
Roadway Safty
-
Module Size:
-
320X160mm
-
Power supply:
-
12V-24V DC
-
Cabinet size:
-
960x960mm
-
led type:
-
3 in 1 SMD +LENS
-
Contrast ratio:
-
C2 En12966
-
Light source:
-
CREE/Nicha/nation star
-
Certificate:
-
EN12966/CE/ROHS/FCC/ISO
Product Details
VMS Variable message sign

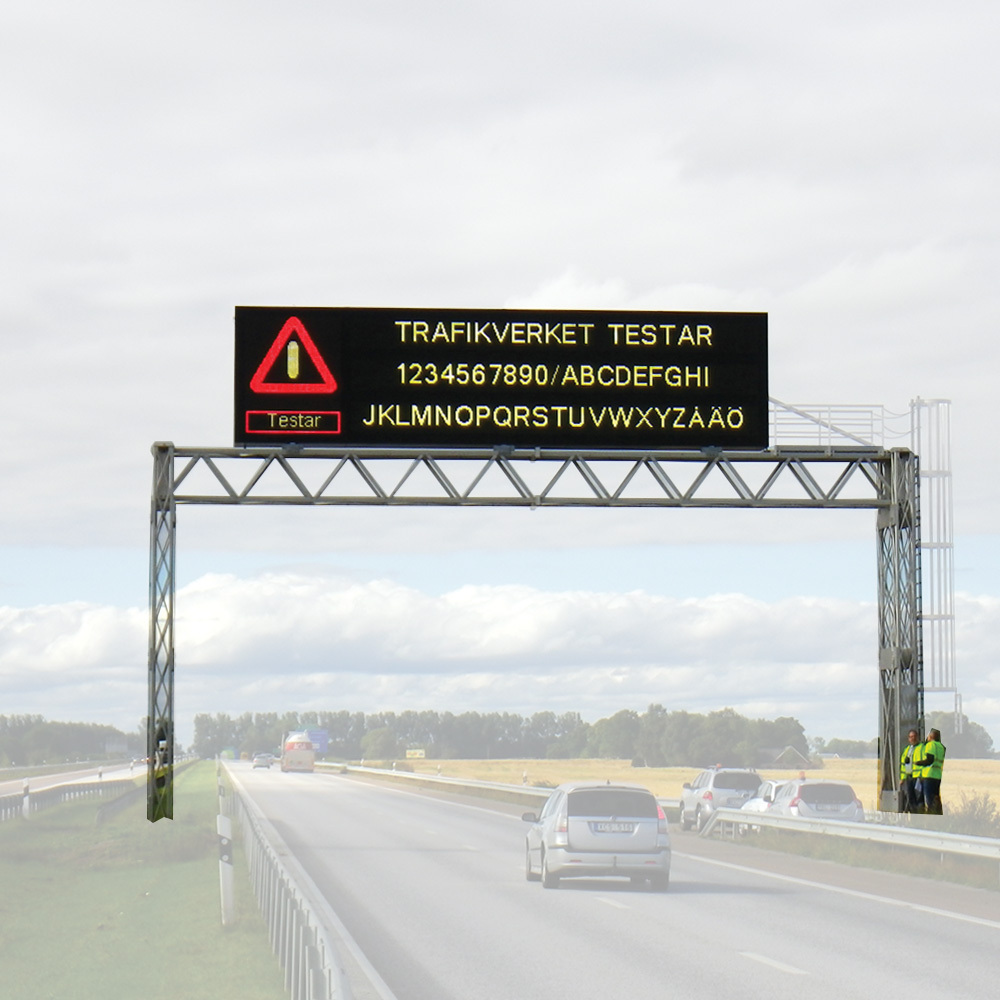

The Yaham VMS products including gantry VMS, cantilever VMS, single pillar VMS and other customized VMS products. By delivering useful information, our durable signs are guiding traffic all over the world.
Fixed variable message sign
Variable messae sign - D seriseP10/ P12/P16/P20/P25/P31.25
Product Introduction
Product Parameters
|
ITEM
|
OT10
|
OT16
|
OT20
|
OT25
|
OT31.25
|
||||
|
Pixel pitch
|
10mm
|
16mm
|
20mm
|
25mm
|
31.25mm
|
||||
|
LED type
|
3in 1 SMD+LENS
|
3in 1 SMD+LENS
|
3in 1 SMD+LENS
|
3in 1 SMD+LENS
|
3in 1 SMD+LENS
|
||||
|
Module dimension
|
320X160mm
|
256X128mm
|
320x160mm
|
200x200mm
|
250x250mm
|
||||
|
Module Resolution
|
32x16
|
16x8
|
8x8
|
8x8
|
8x8
|
||||
|
Cabinet material
|
2mm aluminium Alloy
|
|
|
|
|
||||
|
Screen Weight
|
65kgs/sqm
|
65kgs/sqm
|
65kgs/sqm
|
65kgs/sqm
|
65kgs/sqm
|
||||
|
Cabinet dimension
|
960x960mm
|
1024x1024mm
|
960x960mm
|
1000x1000mm
|
1000x1000mm
|
||||
|
Brightness
|
L3,L3*EN 12966(Red>3100nit, Green>3720nits Blue>1240nits,Amber>7440nits, White>12400nits
|
|
|
|
|
||||
|
Driving method
|
2s
|
static
|
static
|
static
|
static
|
||||
|
brightness adjustment
|
32/256
|
32/256
|
32/256
|
32/256
|
32/256
|
||||
|
Color coordinates
|
C2: EN12966
|
C2: EN12966
|
C2: EN12966
|
C2: EN12966
|
C2: EN12966
|
||||
|
Viewing Angle
|
H15/-15 Deg./v8/-10 Deg.(B6:EN12966)
|
|
|
|
|
||||
|
Contrast ratio
|
R3:EN12966
|
R3:EN12966
|
R3:EN12966
|
R3:EN12966
|
R3:EN12966
|
||||
|
Refresh rate
|
>90+HZ
|
>90+HZ
|
>90+HZ
|
>90+HZ
|
>90+HZ
|
||||
|
Display control
|
Asynchronous control system available
|
|
|
|
|
||||
|
Signal transfer
|
Cat 5 network Cable, RS232, rs485 optional
|
|
|
|
|
||||
|
Display capacity
|
Text , image, graphics and animations
|
|
|
|
|
||||
|
Life span
|
>100000hours
|
>100000hours
|
>100000hours
|
>100000hours
|
>100000hours
|
||||
|
Power supply
|
12-24V DC/110-230V AC
|
|
|
|
|
||||
|
Max power Consumption
|
400W/SQM
|
250W/SQM
|
220W/SQM
|
220W/SQM
|
220W/SQM
|
||||
|
Avg.power consumption
|
130W/SQM
|
80W/SQM
|
70W/SQM
|
70W/SQM
|
70W/SQM
|
||||
|
Operation Temperature
|
-25-+60
|
-25-+60
|
-25-+60
|
-25-+60
|
-25-+60
|
||||
|
Storage Temperature
|
-40-+80
|
-40-+80
|
-40-+80
|
-40-+80
|
-40-+80
|
||||
|
Operating humidity
|
10%-90%
|
10%-90%
|
10%-90%
|
10%-90%
|
10%-90%
|
||||
|
Store humidity
|
15%-95%
|
15%-95%
|
15%-95%
|
15%-95%
|
15%-95%
|
||||
|
Protection Level
|
IP65
|
IP65
|
IP65
|
IP65
|
IP65
|
||||
|
Maintenance method
|
Front/Rear Serviec
|
|
|
|
|
||||
|
EN12966
|
Compliance
|
Compliance
|
Compliance
|
Compliance
|
Compliance
|
||||
The cabinet
COMPANY DETAILS
About us
More than 600 stuff, factory covers more than 30000sqm and owns a complete production line
Equipment & technology
Advanced Precision Machinery and Equipments
Service
High quality products and best service
Product Processing
Product testing
CASES
Swiden
VMS
Netherland
Mobile vms
Russia
VMS/lan control sign
and speed limit sign
NETHERLAND
Mobile vms
SWEDEN
parking info VMS
Australia
Solar vms trailer
OUR TECHNICAL ADVANTAGE
Minimized power consumption
Separate led drive for RED and GREEN respectivlelu with volatage divider
Nearly zero power consumption within black display area. When a screen is displaying message, for most cases, a large proportion of screen maintain black, Our product is able to detect it and turn this area into sleeping mode .
Second optical lens
It is well know that vms upper viewing angle makes light pollution 505 loss, By applying second lens, we can manufacture 0 ipper viewing angle 0 light pollutions and 0 energy loss
Lighting shock procetion
We have equipped lighting shock component of industrial level, High quality components include direct-lighting proctection, signal protection. power surge protections
Dual voltage Input
Due to lighting chip difference, red/amber led has lower threshold voltage to light up than green/blue LED,so we applied dual voltage chhannel to drive two types of LEDS, surplus enrgy is saved by this technology
Large storage memory
The build-in flash emory can strores as many as 2000 images and characters at a time
High Ingress protection
Our cabinet is fully sealed to enure ingress protection level up to IP65
Automatic/manual brightness control
Our digital photo sensor supports as many as 256 dimming levels with outside luminace range from 1 lx to 65535lx,which enables our display screen to adjust to appropriate luminance level according to outside environment luminance reading will also be reported to traffic control center
Double Layer door heat dissipation without fan
Double layer door housing, heat dissipation by aluminum conducting, which makes the MS internal temperature be low, Low temperature can improve all components performance, more energy saving
More info,Please feel free contact Jason
