Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
hm
-
Model Number:
-
cx1303
-
Rating:
-
4A 125VAC 1A 250VAC
-
Pitch:
-
18
-
function:
-
off 1 2 momentary or off 1 2 3
-
life time:
-
>10000cycles
-
materials:
-
nylon copper
-
amount hole:
-
100mm
-
demensions:
-
110*16*15
-
button cap:
-
can be choosed the button color or without cap
-
Certification:
-
RoHS
-
Housing Material:
-
NYLON
Quick Details
-
Protection Level:
-
1
-
Max. Current:
-
4
-
Max. Voltage:
-
250
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
hm
-
Model Number:
-
cx1303
-
Rating:
-
4A 125VAC 1A 250VAC
-
Pitch:
-
18
-
function:
-
off 1 2 momentary or off 1 2 3
-
life time:
-
>10000cycles
-
materials:
-
nylon copper
-
amount hole:
-
100mm
-
demensions:
-
110*16*15
-
button cap:
-
can be choosed the button color or without cap
-
Certification:
-
RoHS
-
Housing Material:
-
NYLON

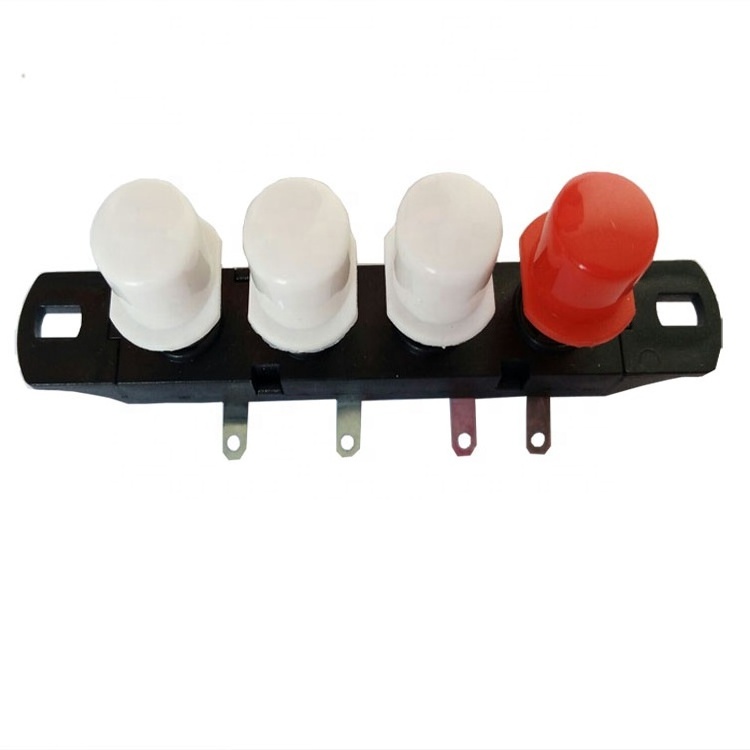

picture and demensions:
function 1
off 1 2 3 . position off is top bits,1 2 3 position are interactive lock which means only single one of them can be pressed done at one time
function 2
off 1 2 3 , off positon is stop bits, both 1 and 2 are interactive lock which means only single one of them can be pressed done at one time. 3 position is single one it can be locked by itself and rest
|
Electrical Rating |
1A250V AC, 4A250V AC |
|
Button distance |
18mm |
| Temp(C) | 80°C |
| Circuit/ Functions | OFF L1 L2 L3 montary or off L1 L2 momentary |
| Wiring specifications | 22-18AWG UL1015 |
| The keyboard distance | 18mm |
| materials | PC V0 ABS spring copper |
| Wire Connect |
Soldering wires or Inserting wires (without terminals outside) |
| life time |
10000cycles |
