CE type XXZP-B300X metal polishing vibratory finishing deburring machine

CE type XXZP-B300X metal polishing vibratory finishing deburring machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3550

≥2 Sets

US $3500

≥4 Sets

US $3450

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power (kW):: 2.2

Weight (KG):: 560 KG

Machine Type:: Metal Polishing Machine

Product Name:: Vibratory finishing machine

Product Code:: XXZP-B300X

Capacity:: 300L

Power:: 2.2KW

Certification:: ISO9001/CE

Voltage:: 220V/380V/415V/440V

Size:: 1340*1340*1060mm

Weight:: 700Kgs

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: XINGXING

Marketing Type:: Hot Product 2021

Power (kW):: 2.2

Weight (KG):: 560 KG

Machine Type:: Metal Polishing Machine

Product Name:: Vibratory finishing machine

Product Code:: XXZP-B300X

Capacity:: 300L

Power:: 2.2KW

Certification:: ISO9001/CE

Voltage:: 220V/380V/415V/440V

Size:: 1340*1340*1060mm

Weight:: 700Kgs

Product Description

It is mainly used for deburring, removing rust, rounding and polishing all sorts of metals, non-ferrous metals and non-metals parts. The workparts after surface finishing, not only remain the shape accuracy of the original state, but also improve the precision of surface roughness of parts. deburring machine

SPECIFICATIONS FOR VIBRATORY FINISHING MACHINE XXZP-B300X
Vibratory Finishing Machine	Machine Type	XXZP-B300X	SET
		Motor	2.2	KW
		Motor Speed	1440	RPM
Main parameters	Machine Size	134013401060	MM
		Process Vessel Volume (L)	300	L
		Process Vessel Width & Depth	288X400	MM
Other information	Lining	PU lining	PU
		Lining thickness	20	MM
		Voltage	220V-440V	3 Phase

Detailed Images

Product Application & Features

1. Adoption of vibratory motor to produce vibratory force, it makes workparts and medias move in one direction and mass finished interactively in the processing vessel to accomplish the surface improvement.
2. Applicable to process small and medium size workparts in large amount load, with good finish effect and short time needs for processing.
3. No damage to the original shape and size of the workpart.
4, The processing vessel interior surface is lined with PU (polyurethane), avoiding direct damage to the workparts and machine metal, and working life for the machine is extended.
5. Random checking the workparts in the finishing process, easy operation. Option to choose the independent electrical box with converter.
6. A type and AB type machine has the function of separating the workparts and emdias automatically after finishing process. Vibratory polishing machine

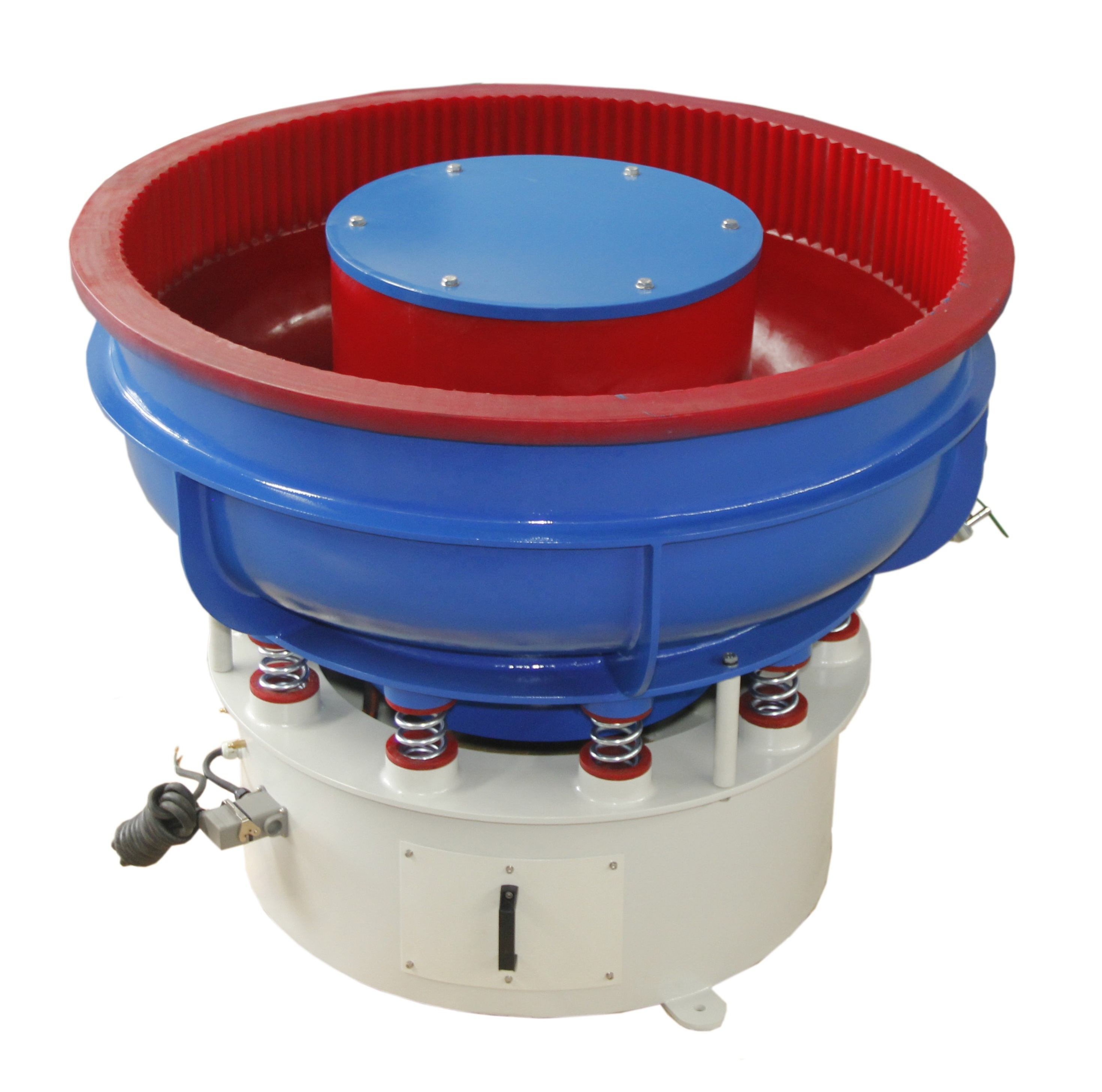

Vibratory Finishing Machine

Name: Vibratory Finishing Machine

Code: XXZP-B300X

Brand: Xingxing

Original: Zhejiang, China

1. CE certified vibratory finishing machine.

2. Stress relief welding required, h eavy duty structure design.

3. Adoption of vibratory motor to produce vibratory force, it makes workparts and medias move in one direction and mass finished interactively in the processing vessel to accomplish the surface improvement.

4. Similar outlook style design as international brand.

5. With independent control panel available.

6. With floor drain available for 100% water discharge.

Name : Vibratory Motor

Brand : Xingxing
Original : Zhejiang, China

1. CE certified vibratory motor.

2. China-Germany joint venture manufacturer made quality product, with consistant reliable quality.

3. With motor fan shape shafts, the intersection angle can be adjusted with the reading of point marks on the shaft. EASY FOR MOTOR VIBRATING FORCE ADJUSTMENT.

4. Motor bearing greasing outlet pipe fixed.

Name: Work vessel of vibratory polishing machine

Brand: Xingxing
Original: Zhejiang, China
1. The main machine is consist of upper bowl and basement.

2. The upper bowl is with work channel which is with PU( polyurethane ) lining.

3. The work channel with depth as 515mm and width as 400mm.

4. The PU lining thickness is average with 20mm, to ensure the PU lining wear life time, the main wear part of the work channel with thickness over 20mm.

Name: Basement design

Brand: Xingxing

Original: Zhejiang, China
1. Designed with easy cable connection, easy for maintenance.

2. There is no need to change the cable from to motor terminal box if external cable damage.

3. Cable switch is waterproof.

4. With motor bearing greasing holes outlet, easy for maintenance.

5. With cable wires marked clearly, safe for connection.

Name: Independent control panel

Brand: Xingxing

Original: Zhejiang, China
1. With Safe DC24V control voltage

2. WITHOUT Inverter (Taiwan brand) installed inside.

3. With Emergency button installed for emergency usuage.

4. With Timer to set the running time.

5. Besides the panel with inverter, we also can supply the panel with inverter, panel with inverter and auto dosing for different options.

Name: Independent control panel

Brand: Xingxing

Original: Zhejiang, China
1. With Safe DC24V control voltage

2. WITH Inverter (Taiwan brand) installed inside..

3. With Emergency button installed for emergency usuage.

4. With Timer to set the running time.

5. Besides the panel with inverter, we also can supply the panel without inverter, panel without inverter and auto dosing for different options.

Name: Independent control panel

Brand: Xingxing

Original: Zhejiang, China
1. With Safe DC24V control voltage

2. WITH Inverter (Taiwan brand) installed inside.

3. WITH AUTO DOSING SYSTEM installed, Italy brand dosing pump.

4. With Emergency button installed for emergency usuage.

4. With Timer to set the running time.

5. Besides the panel with inverter and auto dosing fuctions, we also can supply the panel without inverter and dosing, it depends on customers' actual applications.

Related Products

Packing&Shipping

Packing: wooden case

Suitable for sea shipping

Certifications

After Sales Service

After sales service

Our company pays great attention to quality problems. In case of quality problems, you can discuss with us.

we offer perfect surface finishing technology!

Company Introduction

The company has been awarded province and municipal titled " Excellent Technology Advancement"
for several times. The company has set up a strict quality assurance system, it passed the ISO:
9001:2000 in 2004, and CE certification in 2008.

The company mainly has three production workshops for mass finishing machinery, mass finishing
media, and compound, which are integrated to offer our customers with complete mass finishing
solutions. The company has a variety of finishing machines available in five categories: Vibratory
finishing machine, Centrifugal barrel machine, Centrifugal disc machine, Rotating barrel machine,
and shot blasting machine.

There are three series of mass finishing medias as ceramic media, plastic media, special media, and
more than thousand specifications.

In addition, Xingxing Abrasive also supply 12 kinds of polishing compound for mass finishing solutions.

The mass finishing product serves every sector of modern industry, such as aviation, automobile,
motorcycle, engine, compressor, textile machinery, alloy metal, non-metal workparts,, magnetic
products, and decorations, etc
