Quick Details
-
Place of Origin:
-
Guangdong, Shenzhen
-
Brand Name:
-
TQX
-
Model Number:
-
TQX-G01
-
Product Name:
-
PDLC Smart Film Glass
-
Width:
-
1200,15000,1800,2150 mm,Customized
-
Surface:
-
UV Printing
-
Sample Size:
-
A4, Customized Size
Quick Details
-
Application:
-
Courtyard, Leisure Facilities, Supermarket, Farmhouse, Laundry, Workshop, Kitchen, School, Bathroom, Babies and kids, Bedroom, Exterior, Dining, Warehouse, Home Office, Staircase, Outdoor, Living Room, Park, Wine Cellar, Office Building, Storage & Closet, Gym, Mall, Entry, Apartment, Sports Venues, Basement, Hospital, Villa, Hotel, Home Bar, Hall, Garage & Shed
-
Usage:
-
Industrial, Medical, Decoration, Solar, Greenhouse, Curtain Wall, Balustrades & Handrails, Image formation, Lighting, Bulletproof, Display screen, Instrument
-
Thickness:
-
3mm-12mm
-
Place of Origin:
-
Guangdong, Shenzhen
-
Brand Name:
-
TQX
-
Model Number:
-
TQX-G01
-
Product Name:
-
PDLC Smart Film Glass
-
Width:
-
1200,15000,1800,2150 mm,Customized
-
Surface:
-
UV Printing
-
Sample Size:
-
A4, Customized Size
Why Choose Us
Customer Reviews
Product Description
|
P
D
L
C F
I
L
M
|
PDLC Film
|
|
|
Test Items
|
High temperature experiment 70 °C, 240 h;
Low temperature experiment -20 °C, 240 h;
High temperature and high humidity experiment 60°C, 95% RH, 240 h;
High and low temperature shock test -20 °C, 30 min, 70 °C, 30 min (cycle 50 times).
|
|
|
Atomization Rate
|
Transparency is 96% when the film powered on;
Transparency is less than 4% when the film powered off.
|
|
|
180° Visible Light Transmittance
|
Transparency is 83% when the film powered on;
Transparency is more than 60% when the film powered off.
|
|
|
Application
|
Privacy Room,Projection,Silent Room,Fire Room,Window Advertising,Special Perspective Lift,Bank,Showcase,Bathroom,Vehicle Application,Hospital,Brand Store,Restaurant,Factory Floor,Dynamic Window Display,Control Room,......
|
|
|
Response Time (OFF-ON)
|
< 10ms
|
|
|
Power Consumption
|
5W/
㎡
|
|
|
Operating Voltage (ON)
|
AC48V ~ 65V/50Hz
|
|
|
Energy Saving
|
Block more than 99% of the uv and more than 98% of the infrared, insulation performance reaches level 2 or above.
|
|
|
Safety
|
It has the advantages of safety glass, good impact resistance,eva film and laminated smart film firmly adheres the glass, so that
the smart glass can prevent debris from hurting people after being broken by impact. |
|
|
Control Methods
|
Manual switch, remote control, trigger control, voice control, APP control, timing control, remote network control, etc, can be
customized according to customer needs. |
|
Technical parameter
APPLICATION:
Large command and control dispatch center office, meeting room, negotiation room, special hospital room. Operating room, villa toilet. Shower room, window of entertainment room. Isolation. screen, etc..
Police station, Courts, Prisons, Jewelry shops, Museums, Bank Windows, Curtain walls, Counter, Isolation, Large special screen projection screen, etc..
Function:
a) Environmential protection, saving-energy,safety,heat presevation,anti-condensation.
b)High UV resistance function, It can block more than 99 % of ultraviolet light. While it does not lose visible light into the
room, it isolates a large amount of ultraviolet light to prevent the fading and aging of interior decorations and furniture. It
can also protect people from diseases caused by excessive ultraviolet radiation.
C) The suitable visible light penetration rate has a certain degree of concealment for outdoor bright light.
d) Low solar coverage effectively prevents solar thermal radiation from entering the room.
e)High infrared reflectivity, limiting outdoor secondary thermal radiation into the room.
f) The extremely high absorption of more solar radiation heat and ultraviolet rays to reduce the transmission of infrared and ultraviolet light, reduce the energy consumption of indoor air-conditioning, heat insulation and energy saving.
g) A high degree of safety, when damaged by external forces, will only cause cracks, but will not break down, there is no danger of splashing glass fragments.

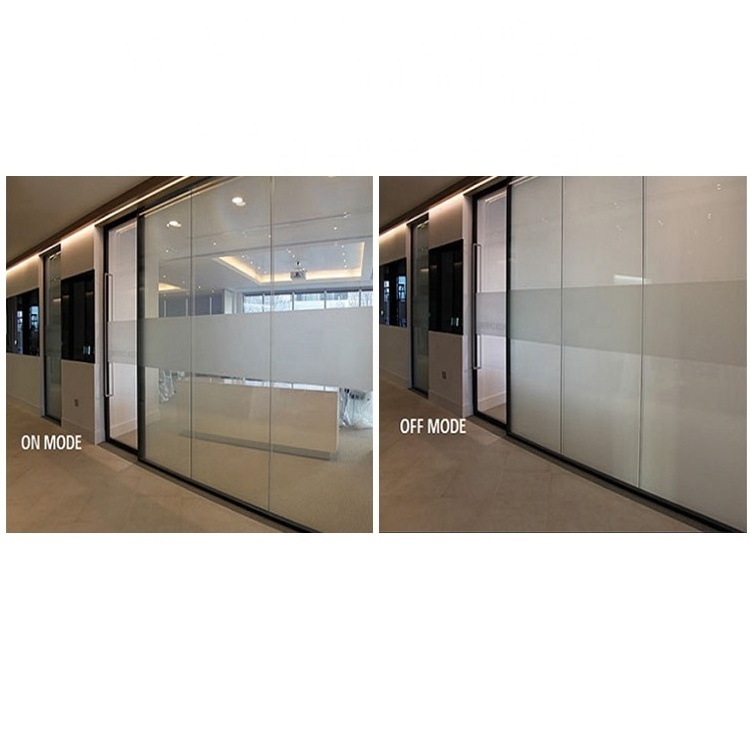

h) The privacy protection is transparent when energized, opaque when the power is cut off, light is still abundant under the
protection of privacy, and the reception room in the hidden office area is still bright, not only comfortable, but also saving
lighting. Transparency in power, opacity, opacity: fast response, instant privacy within 1/10 seconds.
i) Sound insulation features excellent reflection, heat absorption type hollow glass, the middle electric control film and film
have sound damping effect, can effectively block all kinds of noise up to 38 decibels, plus hollow, sound insulation effect is even better.
j) Projection characteristics: Under the closed state, visible light scattering reaches more than 43 %, and the penetration rate reaches more than 50 %. It can be used as a projection screen in a street mall, playing a good advertising effect. If the
projection is in the open state, there is also a three-dimensional ethereal effect.
k) Control diversity: hand control, remote control, optical control, audio control, infrared, remote network control.
Large command and control dispatch center office, meeting room, negotiation room, special hospital room. Operating room, villa toilet. Shower room, window of entertainment room. Isolation. screen, etc..
Police station, Courts, Prisons, Jewelry shops, Museums, Bank Windows, Curtain walls, Counter, Isolation, Large special screen projection screen, etc..
Function:
a) Environmential protection, saving-energy,safety,heat presevation,anti-condensation.
b)High UV resistance function, It can block more than 99 % of ultraviolet light. While it does not lose visible light into the
room, it isolates a large amount of ultraviolet light to prevent the fading and aging of interior decorations and furniture. It
can also protect people from diseases caused by excessive ultraviolet radiation.
C) The suitable visible light penetration rate has a certain degree of concealment for outdoor bright light.
d) Low solar coverage effectively prevents solar thermal radiation from entering the room.
e)High infrared reflectivity, limiting outdoor secondary thermal radiation into the room.
f) The extremely high absorption of more solar radiation heat and ultraviolet rays to reduce the transmission of infrared and ultraviolet light, reduce the energy consumption of indoor air-conditioning, heat insulation and energy saving.
g) A high degree of safety, when damaged by external forces, will only cause cracks, but will not break down, there is no danger of splashing glass fragments.
h) The privacy protection is transparent when energized, opaque when the power is cut off, light is still abundant under the
protection of privacy, and the reception room in the hidden office area is still bright, not only comfortable, but also saving
lighting. Transparency in power, opacity, opacity: fast response, instant privacy within 1/10 seconds.
i) Sound insulation features excellent reflection, heat absorption type hollow glass, the middle electric control film and film
have sound damping effect, can effectively block all kinds of noise up to 38 decibels, plus hollow, sound insulation effect is even better.
j) Projection characteristics: Under the closed state, visible light scattering reaches more than 43 %, and the penetration rate reaches more than 50 %. It can be used as a projection screen in a street mall, playing a good advertising effect. If the
projection is in the open state, there is also a three-dimensional ethereal effect.
k) Control diversity: hand control, remote control, optical control, audio control, infrared, remote network control.
FAQ
Q1. What is the lead time?
A: Within one week for sheet. Within 3 days for sample. Order Now!
Q2. What is the transparency of the film?
A: Transparency is 82%-84%, 86%-88%, 89%-91%.
Q3. What is the size in roll and sheet?
A: Roll: width is 1020,1220,1520,1850(mm), length is 50m/roll or per request.
Q4. What is the packaging?
The Packaging Detail:
A: Factory Finished product packaging: retail package x1 TPU screen protector x1 hard scratch card x1 Toolkit x1 include dust removal stickers,Clean cloth,wet bags, dust remover. 200 product in one carton the carton size is:42*36*32cm, the carton weight is 18kg.
Q5. What is the thickness of the film?
A: Thickness of PDLC is 0.20,0.38(mm).
Q6. Do you offer guarantee for the products?
A: Yes, we can offer one- year guarantee for the goods.
Please write your requirement and click " Send " now !
A: Within one week for sheet. Within 3 days for sample. Order Now!
Q2. What is the transparency of the film?
A: Transparency is 82%-84%, 86%-88%, 89%-91%.
Q3. What is the size in roll and sheet?
A: Roll: width is 1020,1220,1520,1850(mm), length is 50m/roll or per request.
A: Sheet:
width is 1000,1200,1500,1800(mm), length according to customer requirements.
Q4. What is the packaging?
The Packaging Detail:
A: Factory Finished product packaging: retail package x1 TPU screen protector x1 hard scratch card x1 Toolkit x1 include dust removal stickers,Clean cloth,wet bags, dust remover. 200 product in one carton the carton size is:42*36*32cm, the carton weight is 18kg.
Q5. What is the thickness of the film?
A: Thickness of PDLC is 0.20,0.38(mm).
Q6. Do you offer guarantee for the products?
A: Yes, we can offer one- year guarantee for the goods.
Please write your requirement and click " Send " now !
