Quick Details
-
Standard Bearing:
-
180kg/350LBS
-
Current:
-
DC12V/380mA, DC24V 190mA
-
Mount:
-
Mortise Mounted /hidden type (surface mount optional)
-
Wire:
-
2 wires
-
Suitable for:
-
Sliding door; wood door; glass door, metal Door and fireproof door
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Camel
-
Product name:
-
180K 350LBS EM Magnet Lock
-
Standard Bearing:
-
180kg/350LBS
-
Current:
-
DC12V/380mA, DC24V 190mA
-
Mount:
-
Mortise Mounted /hidden type (surface mount optional)
-
Wire:
-
2 wires
-
Suitable for:
-
Sliding door; wood door; glass door, metal Door and fireproof door

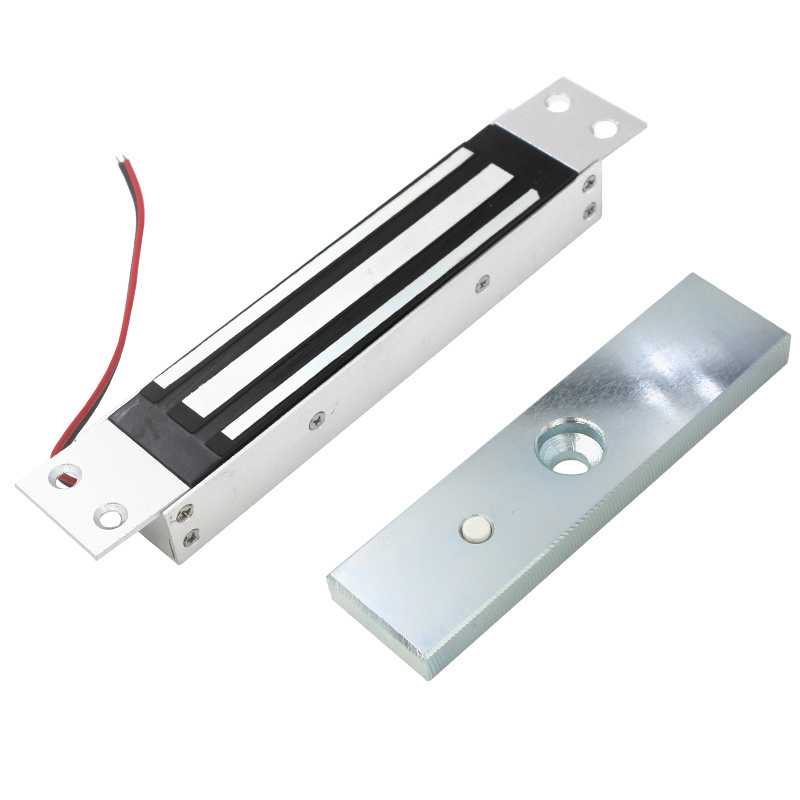

Factory Wholesale 180kg 350lbs mortise electromagnetic lock for single door
An electromagnetic lock, magnetic lock, or maglock is a locking device that consists of an electromagnet and an armature plate.
Fail-safe locking devices are unlocked when de-energized. Direct pull electromagnetic locks are inherently fail-safe. Typically the electromagnet portion of the lock is attached to the door frame and a mating armature plate is attached to the door. The two components are in contact when the door is closed. When the electromagnet is energized, a current passing through the electromagnet creates a magnetic flux that causes the armature plate to attract to the electromagnet, creating a locking action. Because the mating area of the electromagnet and armature is relatively large, the force created by the magnetic flux is strong enough to keep the door locked even under stress.
The strength of today's magnetic locks compares well with that of conventional door locks and they cost less than conventional light bulbs to operate. There are additional pieces of release hardware installed in a typical electromagnetic locking system. Since electromagnetic locks do not interact with levers or door knobs on a door, typically a separate release button that cuts the lock power supply is mounted near the door.
Camel security as a over 9year-old factory, provide different types of magnetic locks and accessories, including the magnetic door locks and cabinet locks, brackets, door closer, exit buttons, access controller, magnetic contacts etc.
Datasheet for Camel Access control 2 wires 180kg 300LBS 350lbs automatic door Electromagnetic electric fail safe magnetic door lock for interior door, sliding door, automatic door, single wood / glass / metal / fireproof door
| Parameter | Description |
| Size |
170Lx39Wx21H single door
340Lx47Wx26H Double door |
| Holding Force | 180kg(350Lbs) |
| Input Voltage |
12/24VDC Single Door
12V DC Double Door |
| Current | 12V/380mA; 24v/190mA |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10~+55℃(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 1.2kg |
Camel Access control 2 wires LED 180kg 35 0LBS Electromagnetic EM electric Magnet Lock for single wood / glass / metal / fireproof door with No Touch contactless Door Release Exit Button Application
More other models for your customers' choices based on Access control 2 wires LED 180kg 35 0LBS Electromagnetic EM electric Magnet Lock for single wood / glass / metal / fireproof door
