In order to prevent the drawer from slipping out and falling objects, safety anti-skid bolt is provided under each layer. When the mold or articles are needed, open the anti-skid bolt and pull out the drawer.
- Product Details
- {{item.text}}
Quick Details
-
Use:
-
Industrial
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Fenghui
-
Model Number:
-
002
-
Depth:
-
customized
-
Weight Capacity:
-
1000kg
-
Width:
-
800mm
-
Height:
-
2000mm
-
Usage:
-
Warehouse Rack
-
Certification:
-
ISO9001
-
Product name:
-
Selective Pallet Rack
-
Color:
-
Customized Color
Quick Details
-
Type:
-
Selective Pallet Rack
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Industrial
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Fenghui
-
Model Number:
-
002
-
Depth:
-
customized
-
Weight Capacity:
-
1000kg
-
Width:
-
800mm
-
Height:
-
2000mm
-
Usage:
-
Warehouse Rack
-
Certification:
-
ISO9001
-
Product name:
-
Selective Pallet Rack
-
Color:
-
Customized Color
PRODUCT PARAMETERS
Structure diagram
Single structure mold shelf
|
Model
|
Specifications
（WxDxH）
|
Number of laminates
|
Load per floor (kg)
|
|
MD201
|
1000x600x2000
|
4
|
1200
|
|
MD202
|
1200x600x2000
|
4
|
1200
|
Equipped with drawer type laminate, push and pull smoothly, convenient for mold goods access, can be extracted 60%, suitable for medium load mold storage.
Note: due to the particularity of mold shelf, non-standard customization is acceptable
Double structure die holder
|
Model
|
Specifications
（WxDxH）
|
Number of laminates
|
Load per floor (kg)
|
|
MD401
|
1000x(600+300)x2000
|
4
|
2000
|
|
MD402
|
1200x(600+300)x2000
|
4
|
2000
|
With double row column structure, drawer type laminate can be opened by 90%, and its load capacity is larger, which is suitable for large, medium and small sizeAccess to heavy mould goods.
Note: due to the particularity of mold shelf, non-standard customization is acceptable
|
Structural features
1. Combined assembly, mainly including column piece, guide groove, drawer layer, pull rod, positioning pin, etc. it is connected by bolts, and the structure is stable, safe and reliable. It is generally used in rows;
2. The drawer plate is mainly composed of slide rail and drawer plate. The drawer plate is composed of frame and steel plate welded by rectangular tube and bending parts.Each slide rail is fixed by two bearings at the front and back, which can roll freely in the guide groove with small resistance and can be easily pulled out by one hand;
3. For the sake of safety, we designed the locating pin and limiting pin at the drawer disk to ensure the safety of the drawer when it is pulled out;
4. The load of light drawer is 200-1200kg, and that of heavy drawer is 800kg-2000kg; the semi open drawer design is combined with crane or trolley to access mold, which can increase the use of corridor space in the factory; it can be installed with crane, which is convenient for lifting, lowering and moving of heavy objects, with a load of 500kg;
4. Drawer type shelf covers less space, has heavy layers, detailed classification and simple operation. It can be extended by unlimited combination according to operation requirements.
|
PRODUCT DETAILS

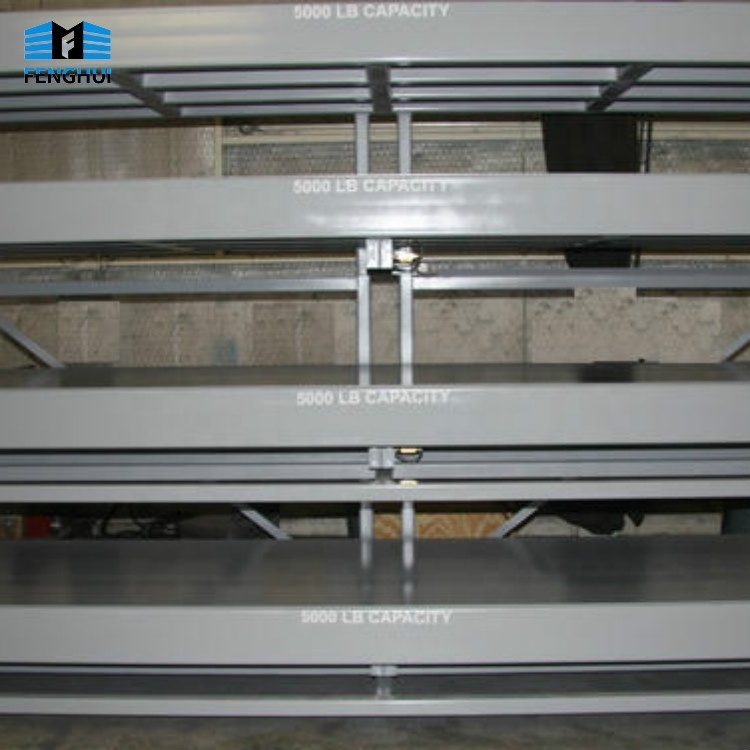

Safety plug
Rolling bearing
Equipped with rolling high rotation bearing, it can ensure that the drawer can slide out easily even if it bears high-quality molds and articles
Sliding crown block
The top is equipped with a sliding crane, which can easily lift 500 kg of goods, which is more convenient to store or take out
Strengthen column base
Firm as rock, warm as Mount Tai, thicker material to strengthen stress, more safe
PRODUCT PHOTOGRAPH
