Quick Details
-
Place of Origin:
-
Henan, China
-
Width:
-
MAX:3000mm
-
Ti (Min):
-
99.6%
-
Brand Name:
-
Shibo
-
Model Number:
-
Gr1, Gr2, Gr3, Gr4, Gr5
-
Name:
-
Titanium Sheet
-
Standard:
-
ISO9001: 2008
-
Surface:
-
Polished, Black, Chemical, Car light, Rolled
-
Packing:
-
wooden case with foam board
Quick Details
-
Application:
-
Industry
-
Length:
-
Max 6000mm
-
Technique:
-
Cold Rolled
-
Place of Origin:
-
Henan, China
-
Width:
-
MAX:3000mm
-
Ti (Min):
-
99.6%
-
Brand Name:
-
Shibo
-
Model Number:
-
Gr1, Gr2, Gr3, Gr4, Gr5
-
Name:
-
Titanium Sheet
-
Standard:
-
ISO9001: 2008
-
Surface:
-
Polished, Black, Chemical, Car light, Rolled
-
Packing:
-
wooden case with foam board

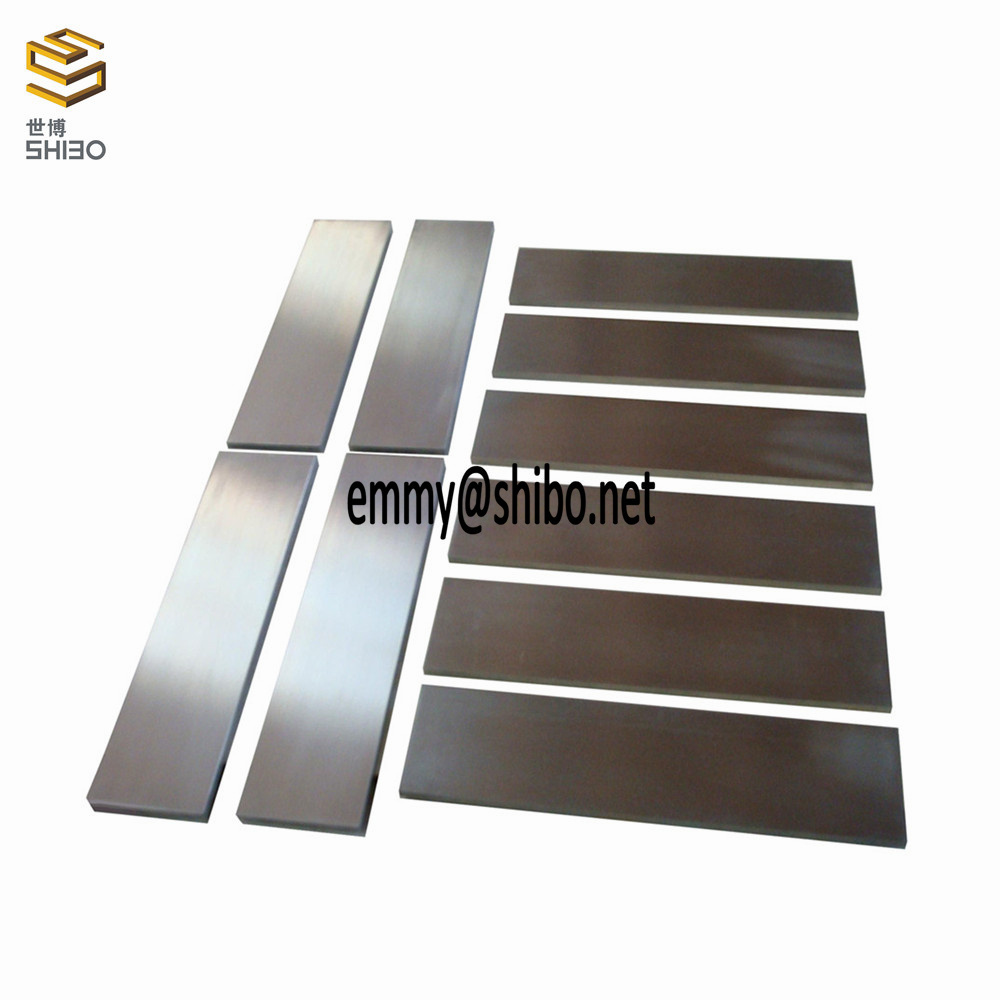

Ti plate most popular Gr1,Gr2, Gr5 titanium sheet for industry
Specification
|
N ame |
Titanium Plate |
|||
|
Material |
Pure titanium & titanium alloy |
|||
|
Standard |
ASTM B265, AWS 4911, GB/T3621,etc |
|||
|
Grade |
Gr1, Gr2, Gr5, Gr7, Gr9 , etc. |
|||
|
Surface |
Polished, Black, Chemical, Car light, and Rolled surface. |
|||
|
F eature |
Light weight, High strength, Good corrosion resistance, Good process performance , high specific strength, high thermal stability materials, and excellent biocompatibility . |
|||
|
Usage |
Used in petroleum, chemical, metallurgy, m arine engineering, artificial joint material and other industrial and medical fields . |
|||
|
|
||||
|
Grade |
Country |
International |
USA |
China |
|
Standard |
ISO |
ASTM |
GB/T |
|
|
1 |
I ndustrial pure titanium
|
Grade 1 |
TA1 |
|
|
2 |
Grade 2 |
TA2 |
||
|
3 |
Grade 3 |
TA3 |
||
|
4 |
Grade 4 |
TA4 |
||
|
5 |
Ti-6Al-4V |
Grade 5 |
TC4 |
|
|
7 |
Ti-0.2Pd |
Grade 7 |
TA9 |
|
|
8 |
Ti-3Al-2.5V |
Grade 9 |
TA18 |
|
|
9 |
Ti-0.3Mo-0.8Ni |
Grade 12 |
TA10 |
|
|
|
||||
|
Dimension |
Thickness (mm) |
Width (mm) |
Length (mm) |
|
|
0.3- 4.0 |
400-1000 |
1000-3000 |
||
|
4.1-60.0 |
400-3000 |
1000-6000 |
||
|
The specification can be changed according to your requirements. |
||||
