Quick Details
-
Frame structure:
-
aluminum alloy 6061-T6 / 6N01-T6
-
Available size:
-
10x10ft, 15x15ft, 20x20ft, and 30x30ft
-
Side height:
-
8.4ft
-
Roof height:
-
19.6ft
-
Roof cover:
-
850g/sqm double PVC- coated polyester textile,blackout
-
Side walls:
-
650g/sqm double PVC- coated polyester textile
-
Maximum wind loading:
-
100km/h
-
Connector:
-
Q235 galvanized steel
-
Color:
-
white, others available
Quick Details
-
Brand Name:
-
COSCO
-
Place of Origin:
-
China
-
Item:
-
Frame tent
-
Frame structure:
-
aluminum alloy 6061-T6 / 6N01-T6
-
Available size:
-
10x10ft, 15x15ft, 20x20ft, and 30x30ft
-
Side height:
-
8.4ft
-
Roof height:
-
19.6ft
-
Roof cover:
-
850g/sqm double PVC- coated polyester textile,blackout
-
Side walls:
-
650g/sqm double PVC- coated polyester textile
-
Maximum wind loading:
-
100km/h
-
Connector:
-
Q235 galvanized steel
-
Color:
-
white, others available

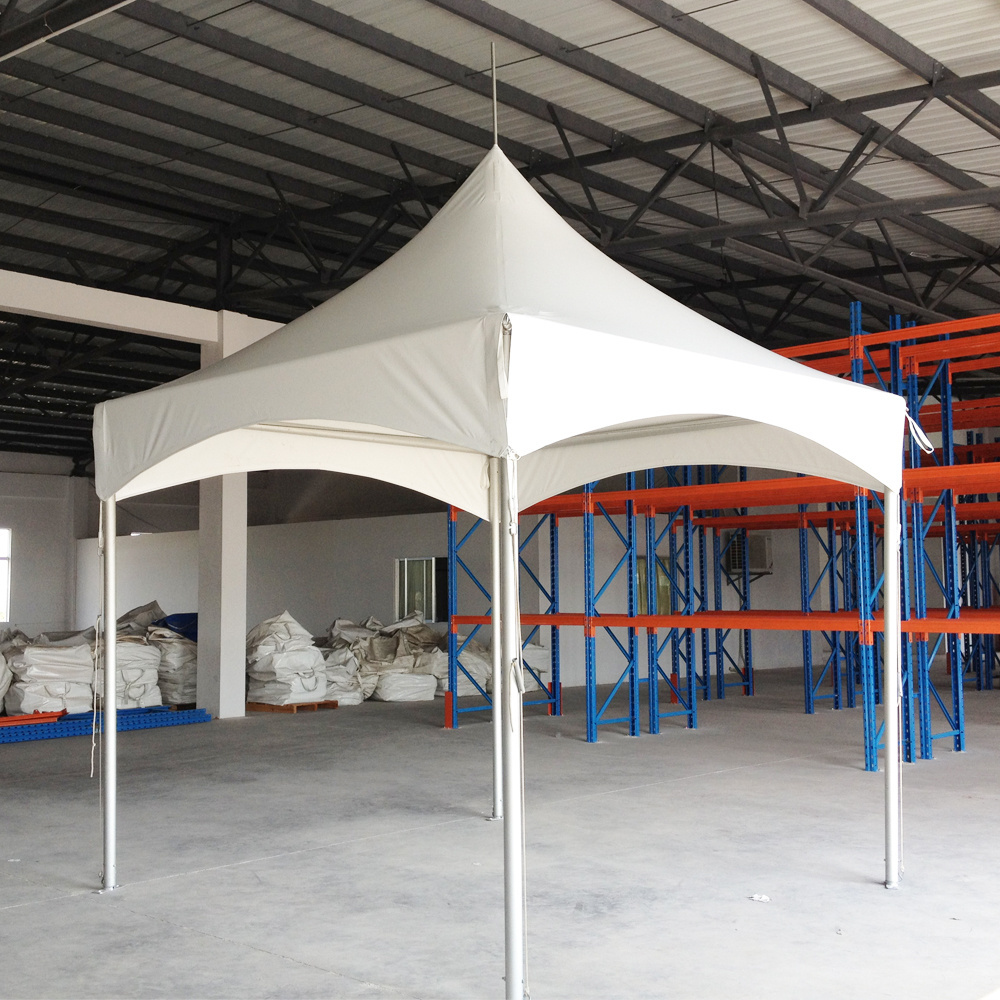

COSCO Custom Wholesale Aluminum Frame Outdoor Commercial Advertising Canopy Tent
|
Frame tent |
|
| Aluminum alloy 6061-T6 / 6N01-T6 | |
|
Roof Cover Material |
850g/sqm double PVC- coated polyester textile, black-out |
|
Side Cover Material |
650g/sqm double PVC- coated polyester textile |
|
Connector |
Q235 galvanized steel |
|
Span width |
Eave Height |
Ridge Height |
Main Profile |
|
10*10ft |
2.5m/8.4ft |
12.60ft |
64.5x64.5x2.5mm |
|
15*15ft |
2.5m/8.4ft |
14.20ft |
64.5x64.5x2.5mm |
|
20*20ft |
2.5m/8.4ft |
16.60ft |
64.5x64.5x2.5mm |
|
30*30ft |
2.5m/8.4ft |
19.60ft |
64.5x64.5x2.5mm |
|
10*20ft |
2.5m/8.4ft |
13.10ft |
64.5x64.5x2.5mm |
|
10*30ft |
2.5m/8.4ft |
12.60ft |
64.5x64.5x2.5mm |
|
10*40ft |
2.5m/8.4ft |
12.60ft |
64.5x64.5x2.5mm |
|
20*30ft |
2.5m/8.4ft |
14.11ft |
64.5x64.5x2.5mm |
|
Hexagonal17×17ft |
2.5m/8.4ft |
13.10ft |
64.5x64.5x2.5mm |
|
Hexagonal34×34ft |
2.5m/8.4ft |
19.60ft |
64.5x64.5x2.5mm |
Application
- Outdoor exhibition
- Warehouse
- Logistics transshipment
- Hangar
- Military command center
- Wedding
- Season event,etc.
Features
- Aluminium frame structure with PVC fabrics.
- 100% space usage, no pole inside.
- modular design structure, easy to install and dismantle.
- Roof: 850g/sqm double PVC fabrics, black-out; Sidewalls: 650g/sqm double PVC fabrics, translucent; both are fire retardant, UV resistance, water proof and mould proof, comply to DIN4102 B1; M2; NFPA701; CAN/ULC S-109 etc.
- One-stop inhouse manufacturing, from aluminium ingot smelting, profile extrusion, machining, anodizing, PVC fabric cutting, high-frequency welding, fabrication of hardware parts & accessories. On-site installation training available.
- strictly conducted in accordance with ISO 9001 & TS16949 management system, following documents available: fire retardant test report, wind loading report, structural analysis, installation manual, working instruction, inspection instruction etc.
C ertifications
- DIN4102 B1
- M2
- Test 2 of NFPA 701:2010
- CAN/ULC-S109
- Wind loading test report for 100km/h
Test reports availble upon request!
P ackaging I nformation
- Aluminum profiles: wrapped by plastic film, and then packed in wooden frame.
- Steel connectors: packed in wooden case.
- PVC covers: packed in PVC bags.
- Glass door & walls: packed in steel frame.
- Wooden floor: packed in wooden frame.
